included options
|
Factory birth specs
General:
- Upgrade: Alexseal metallic stardust silver paint in lieu of standard white gelcoat with professional grade Alexseal polyurethane painted boot stripe
- Vinylester resin with marine grade structural core. High density allows for high temperature resistivity and particular advantage in thermal and acoustic insulation
- Fiberglass with infusion lamination manufacturing technology to include carbon fiber structural reinforcement in the hull
- Infused fiberglass structural grid with molded upper and lower liners in accommodation space
- Composite bulkheads
- Hull and deck joint mechanically fastened
- Aluminum backing plates for all cleats, rod holders and rails
- 1.5 round 316 L stainless steel handrails and stanchions
- All exterior hardware to be 316L stainless steel or to manufacturer requirements
Hull/ Bottom:
- Rub rail with stainless steel insert
- Bronze thru-hull fittings below waterline
- Stainless steel thru-hull fittings above waterline
- Upgrade: Anti-fouling bottom paint
- Upgrade: Stainless steel bow tow eye
Deck:
- Self-draining chain locker in bow with hinged fiberglass hatch
- Upgrade: teak decking
- Self-bailing cockpit sole
- 30" freeboard
- Flush windows, tempered glass
- Cabin escape hatch
- Sun lounge, foredeck adjustable
- Stainless steel machinery space ventilation covers
- Custom stainless steel floor hatch hinges
Machinery Space:
- Gel coated finish (flooring and walls)
- Power actuated main access hatch to machinery space
Mechanical:
Engines:

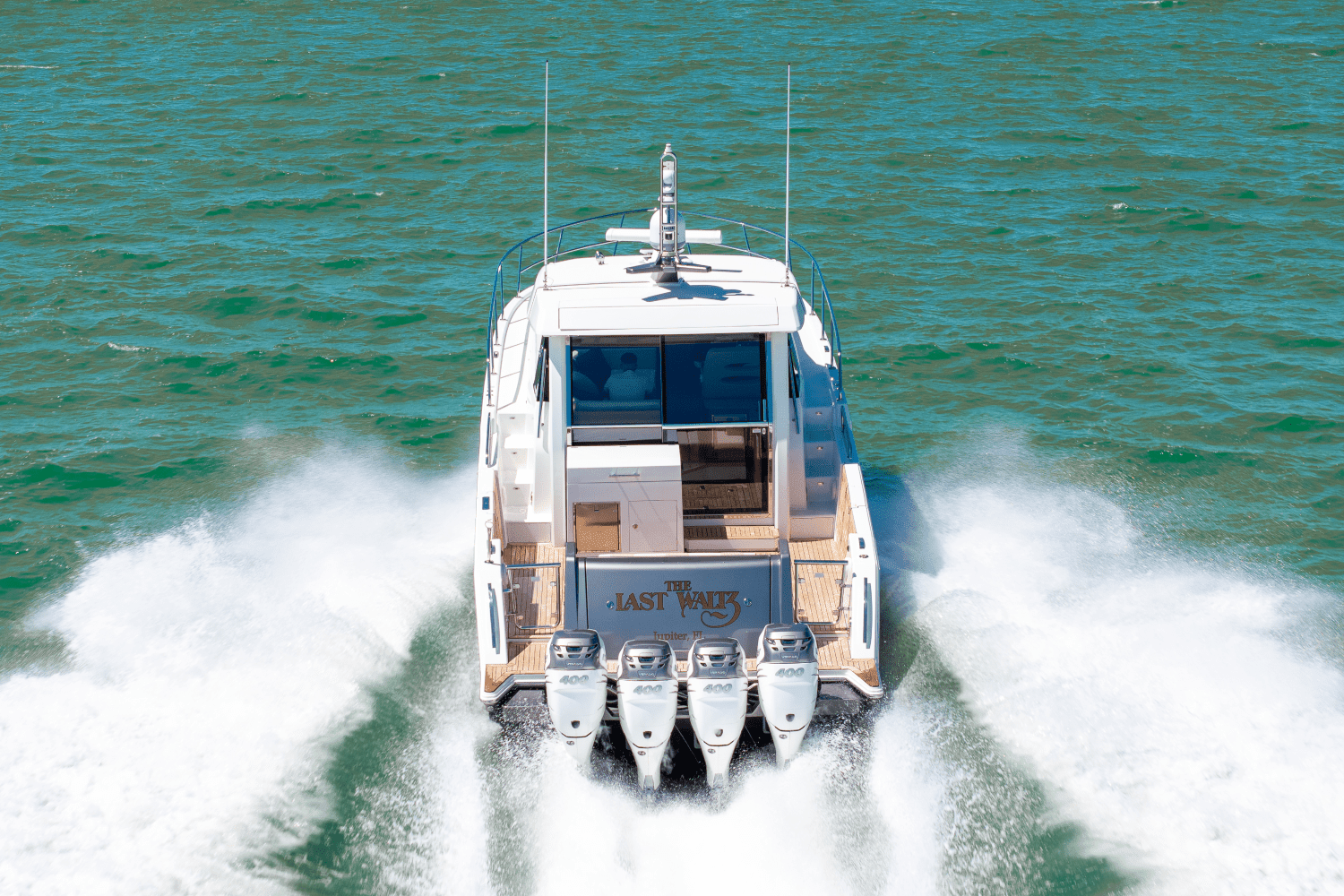

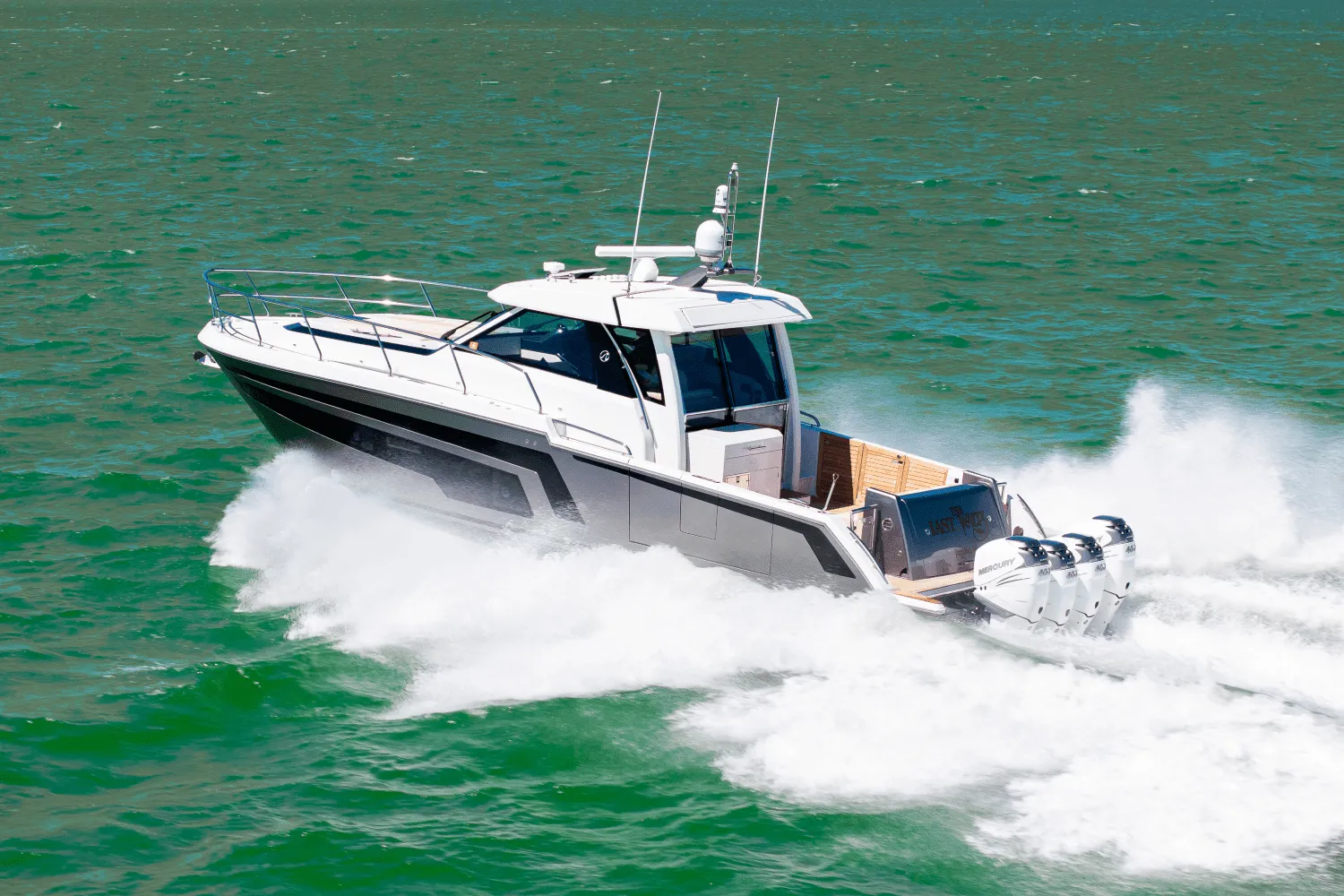

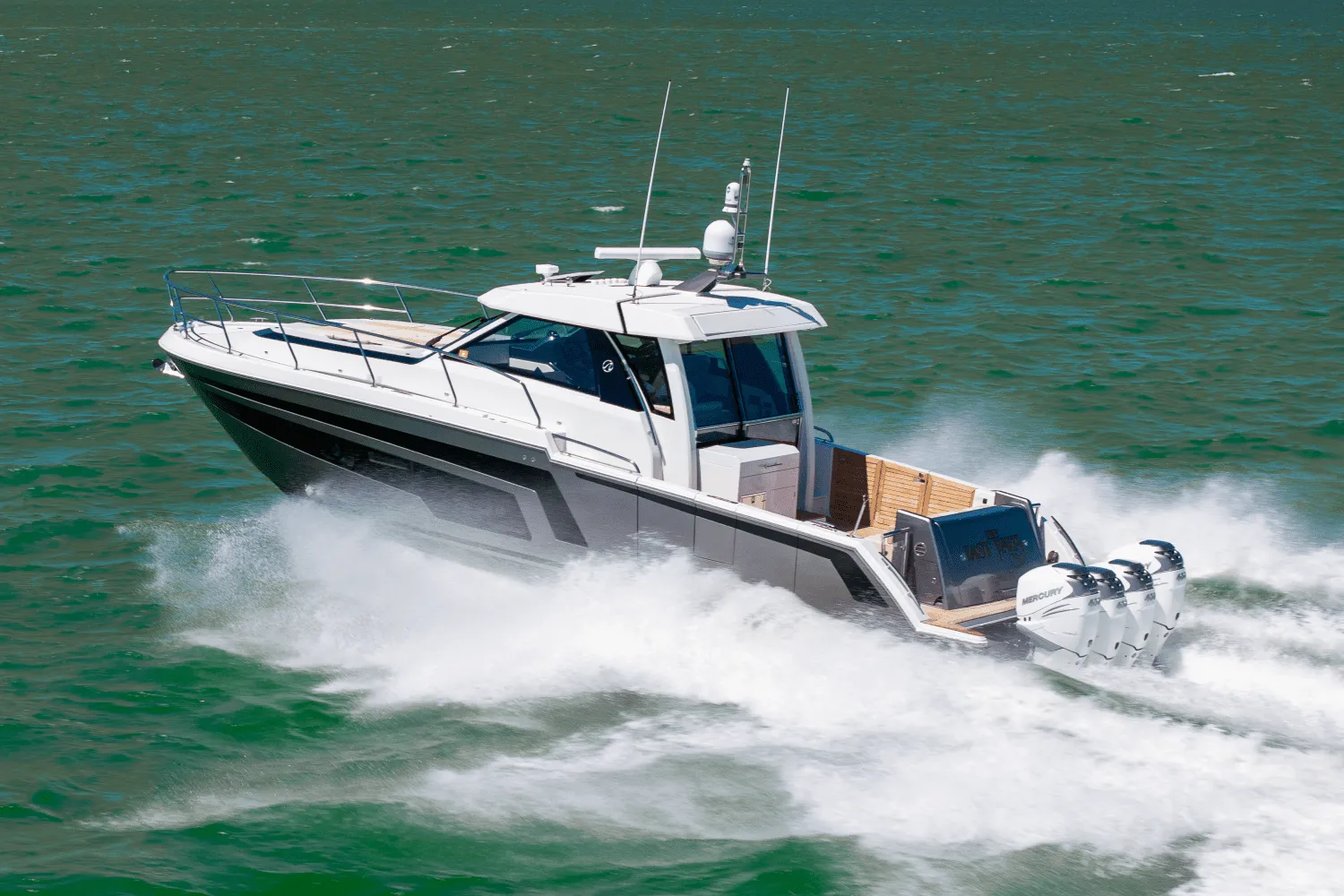

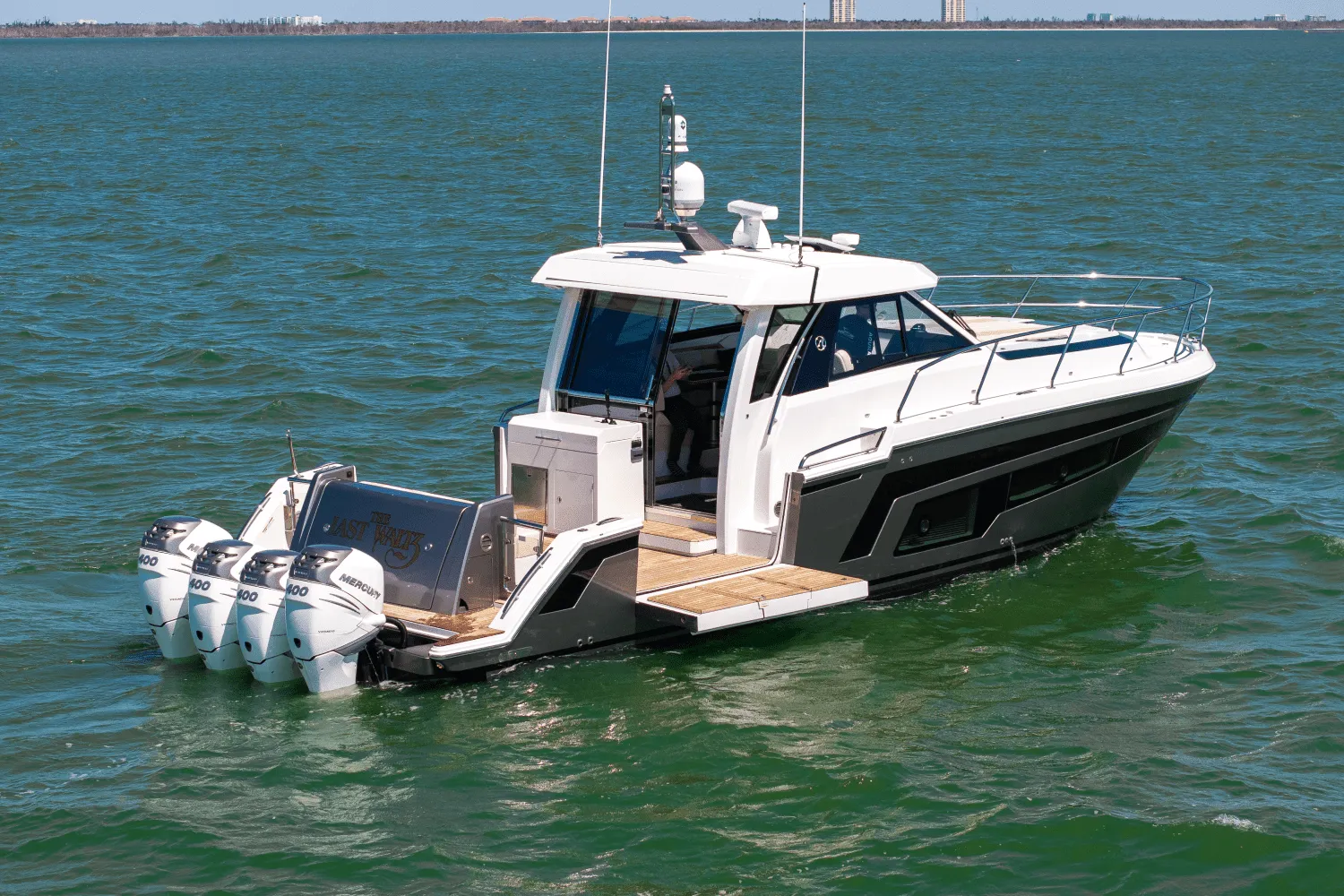

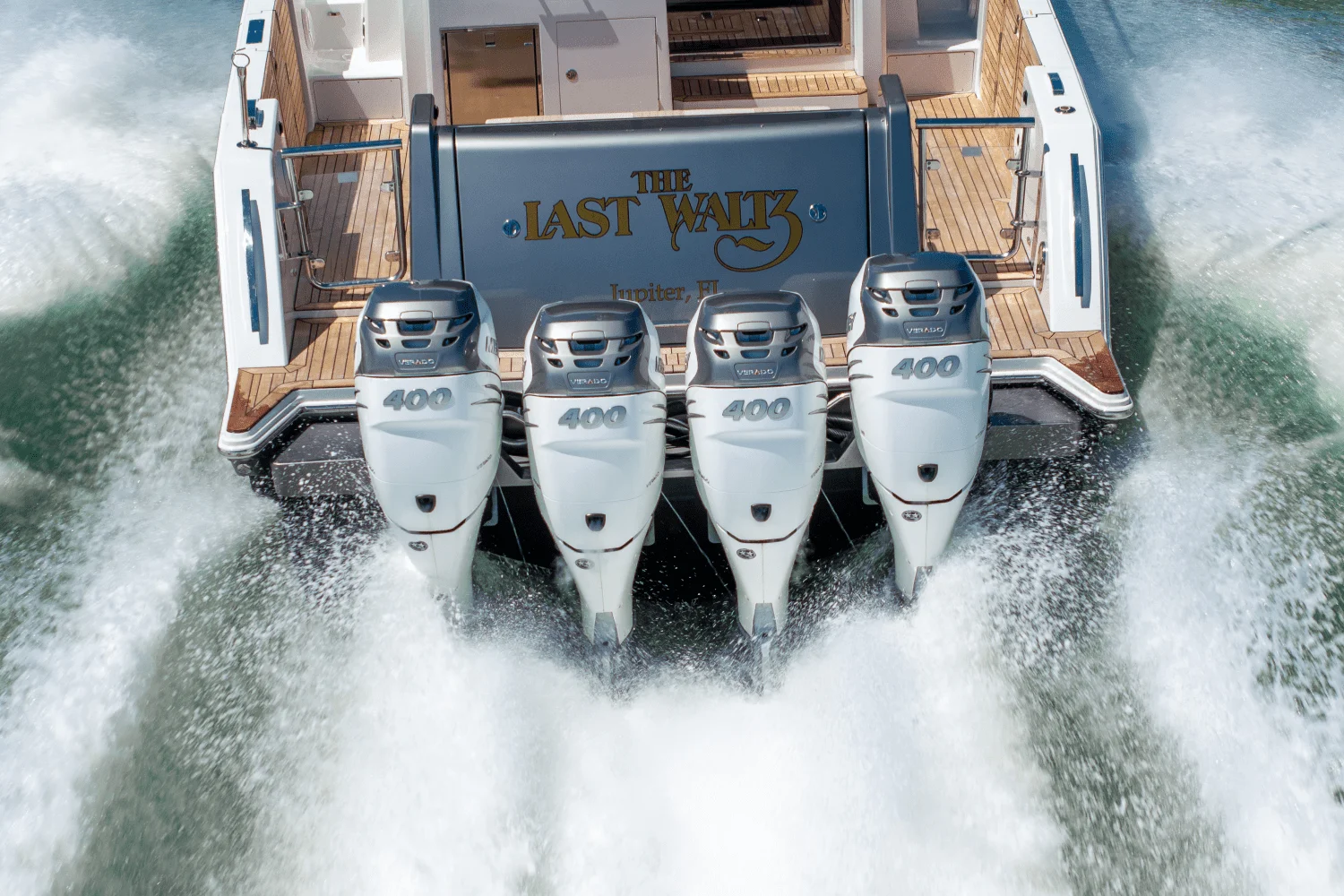

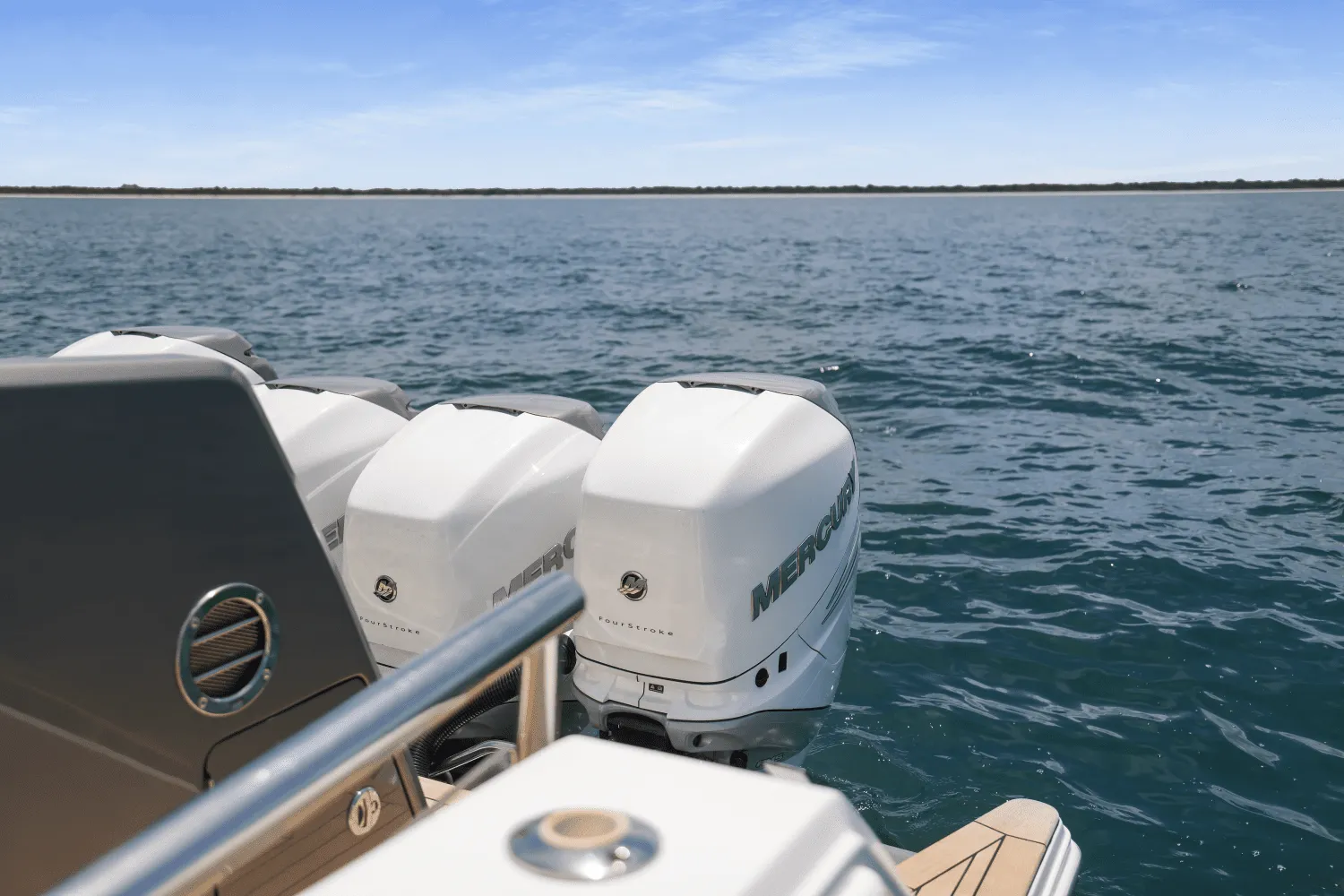

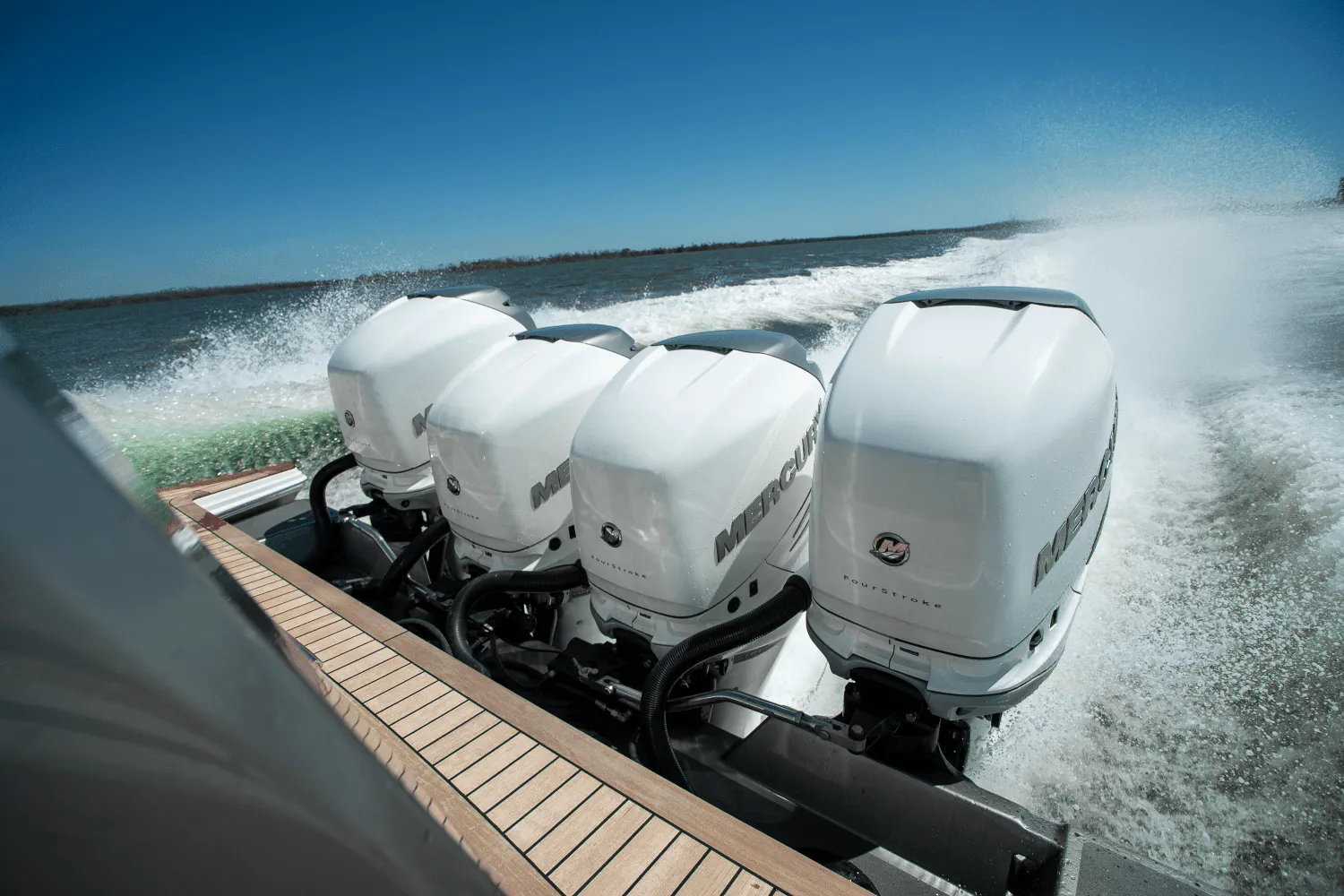

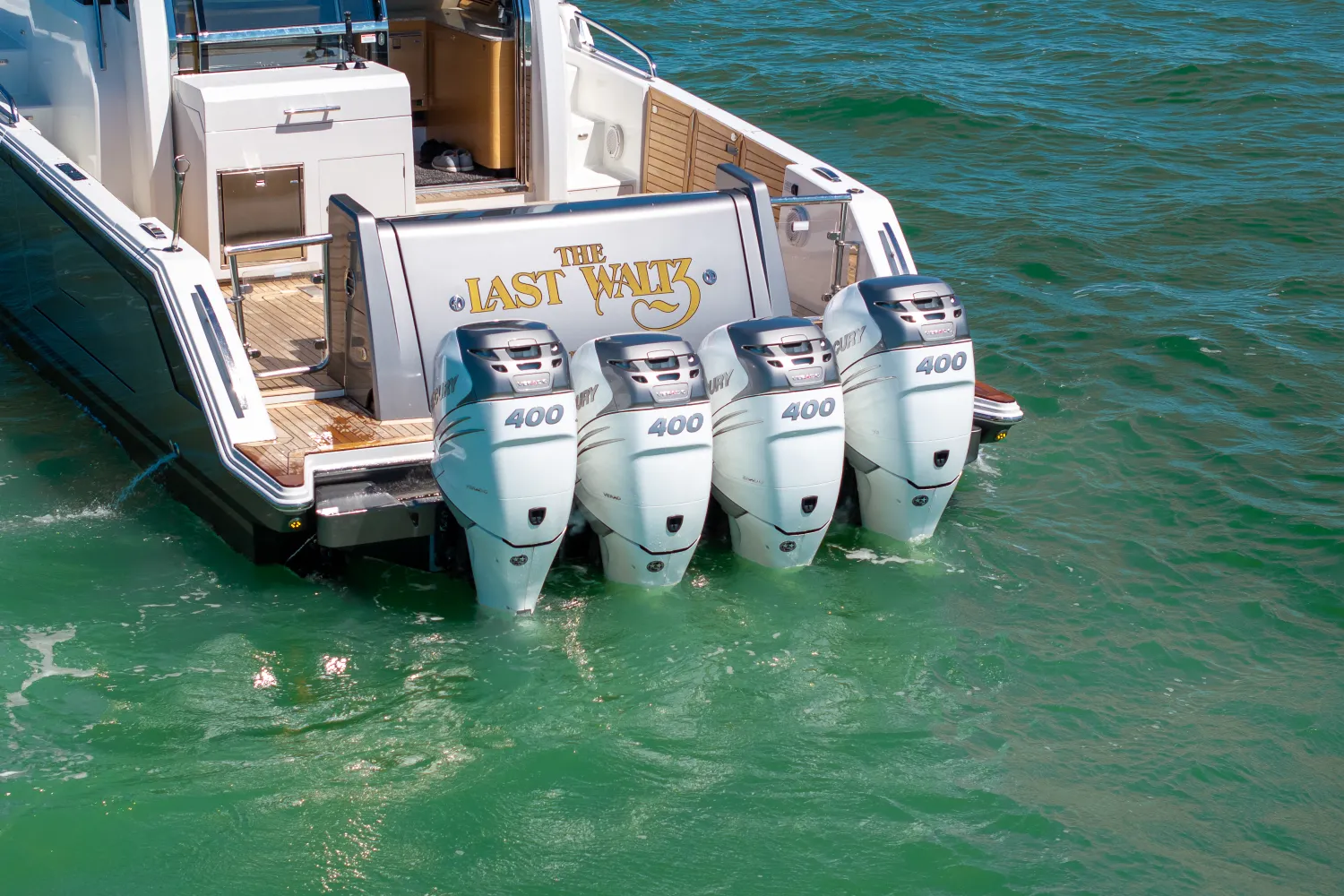

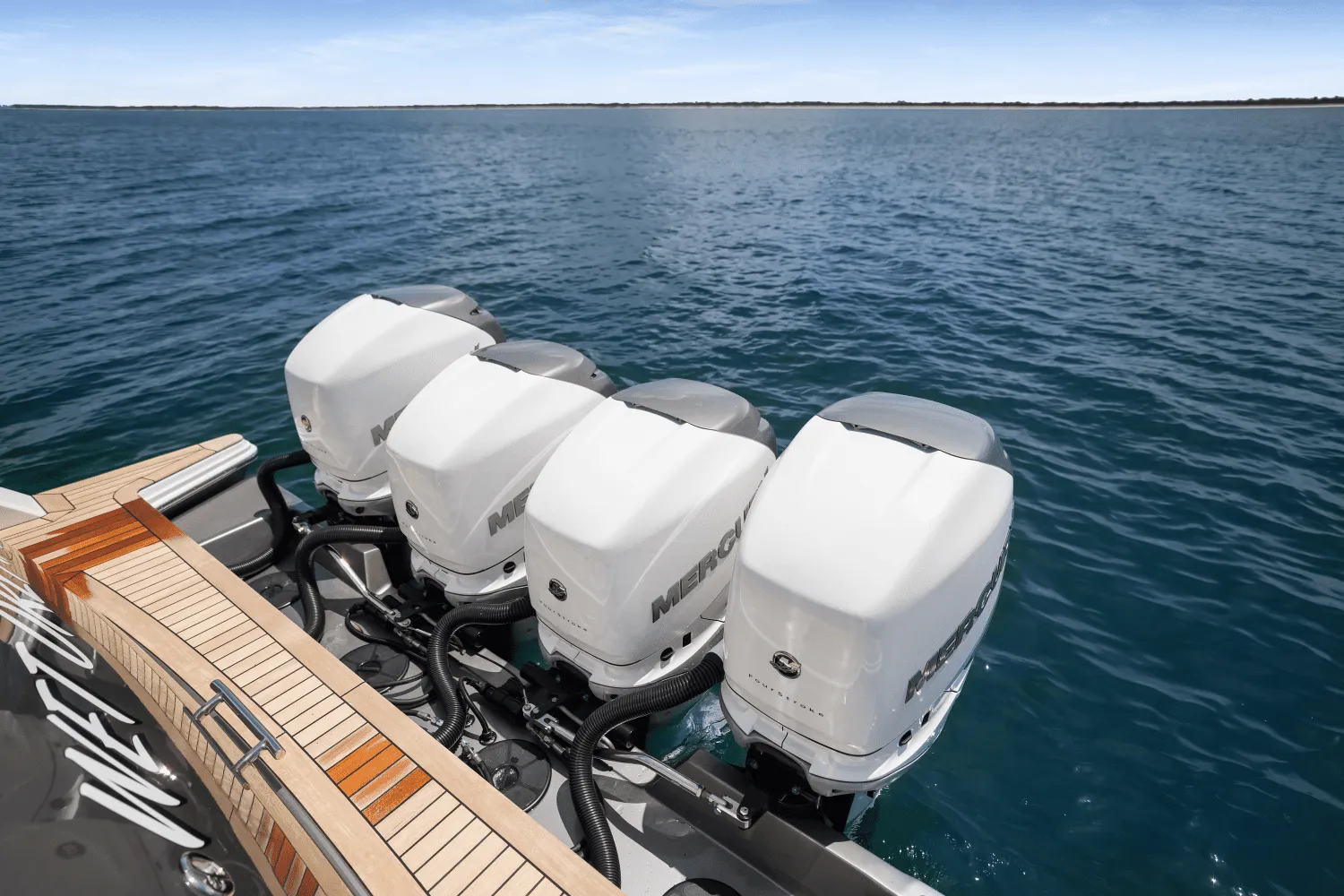

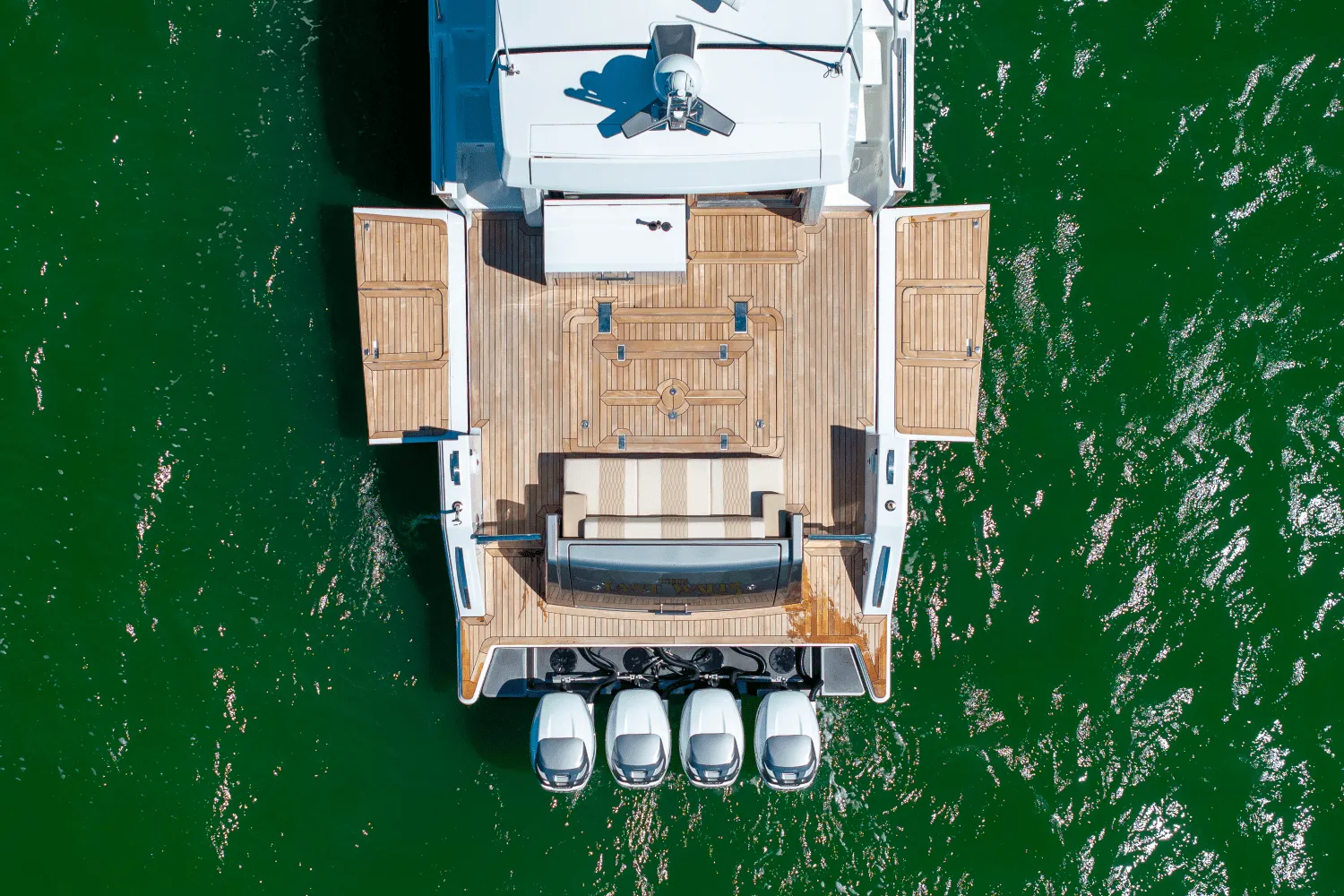

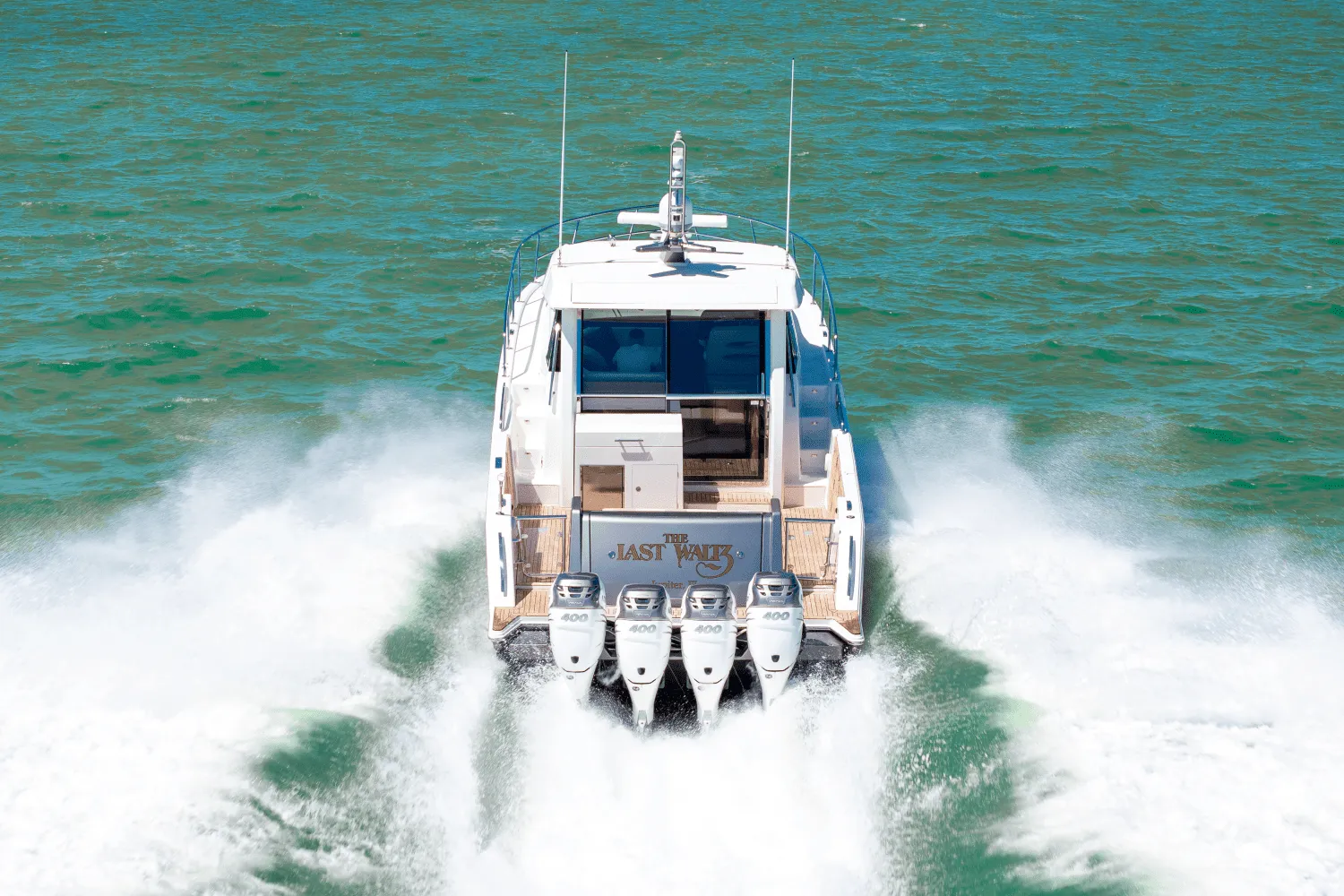

- Upgrade: Quad Mercury Verado 4 stroke Outboards, 400hp (white)
- Upgrade: Hull color marched engine accent
Propulsion features and underwater gear:
- Engine Flush Kit
- Propellers, stainless steel
- Steering, power
- Trim tabs, electric extreme duty performance
- Upgrade: Bow thruster with joystick helm control
- Upgrade: Seakeeper 6 stabilizer
- Upgrade: Mercury Joystick piloting control
Air Conditioning:
- Dometic system throughout with reverse cycle for operation down to 40 F water temperature. Self- contained reverse cycle system - Interior, (10,000 BTU forward, 16,000 BTU AFT and 16,000 BTU pilot house)
Fuel System
- Gasoline (engines)
- Aluminum fuel (gasoline) tank (500 gal) with anti-siphon valves & WEMA sending unit
- Evaporative emissions fuel system
- Engine Fuel/ water separators, Mercury
- Fuel inlet, stainless steel fitting with ISO symbols (starboard side)
- Fuel lines, USCG- Type A-1
Diesel (generator)
- Aluminum fuel (diesel) tank (50 gal) with fuel shut-off valve & WEMA sending unit
- Fuel filter, Racor
- Fuel inlet, stainless steel fitting with ISO symbols (port side)
- Fuel lines, USCG - Type A-1
Windlass/Mooring
- Maxwell fully automatic electric windlass with panel control & rode counter and bow hand held control
- Anchor, stainless steel with 25ft of chain & 300ft of rope
- Anchor roller chute, polished 316 stainless steel
- Tie-off cleat, stainless steel
Plumbing:
Fresh water system:
- Roto molded water tanks (82-gal total)
- Water level indicator, ultrasonic
- Water pump, 24 V
- Water inlet/ fill, stainless steel fitting with ISO symbols
- Dockside water connection
- Water heater, 240V (11 gal)
Waste System:
- Roto molded black water waste holding tank with separate macerator (31 gal)
- Black water waste tank level indicator (through electronics)
- Waste pump
- Dockside pump-out, stainless steel fitting with ISO symbols
- Overboard waste discharge system
Bilge/Discharge
- Shower sump pump, 24V
- Bilge pumps, automatic (2 machinery space, 1 cabin) with manual switch and high-water alarms
- Common drainage system for galley, head, outdoor galley and hatch drains.
Electrical;
AC/ DC system:
- Octoplex NMEA 2000 network electrical control system
- AC distribution panels (240V) with circuit breaker
- AC outltes (120V)
- AC outlets, GFI (120V) in potential wet areas
- DC distribution panels (24V) with electronic circuit breakers and fuse
- USB outlets (cabin, helm)
- 12V outlets (helm)
Shore power, 240V/50A
- Isoboost transformer
- Glendinning Cablemaster electric retractable power cord (US only)
Generator:
- KOHLER 11 KW diesel generator
- Set resiliently mounted and installed with sound shield and vibration dampener (unique OA feature)
- Generator exhausts with fuel/ water separator
Batteries:
- Batteries, engine (4, group 31 AGM)
- House ( 4, AGM)
- Battery switches, remote (cabin)
- Battery Chargers/ converters (2, Mastervolt)
Lighting
- LED lighting throughout the vessel
- Exterior lights:
- Accent LED
- Courtesy
- Flood (aft deck (2), bow (1))
- navigation (sidelights, masthead, stern)
- Navigation (anchor)
- moving propeller alert (transom (2))
- Upgrade: underwater (transom (2) port (2) stbd (2))
- Upgrade: ACR 100- LED remote spotlight
- Helm pilot house- lights, ceiling mount LED, lights, night (red)
- Interior- Ceiling mount LED, reading LED, courtesy (stairs)
- Machinery Space- ignition-protected high output LED
Navigation Equipment:
- Double Garmin GPSMAP 8600 series 16" multi-functional displays
- Garmin 210 VHF radio with antenna
- Upgrade: Garmin GMR 1224XHD2 12kW open array radar
- Garmin B-60 transducer
- Horn, electric trumpet
- Compass
- Upgrade: AIS (Automatic Identification System) VHF
Other:
- Bonding system with zinc anodes
- Vimar switches and outlets
- Carbon monoxide detector
- Wi-Fi router G4
- Upgrade: KVH Tracvision TX3 SAT TV System
- Upgrade: Garmin Sirius XM weather
- Upgrade: FLIR thermal night vision M324S
Hull & Deck, Exterior;
Deck:
- Cleats, custom pull-up (6)
- Cabin entry door, Stainless Steel, manual sliding, lockable
- Ship's bell
- Windshield, single pane tempered curved front glass with single pane tempered flat side glass
- Windshield sipers (2), intermittent with wash system
- Windshield defroster

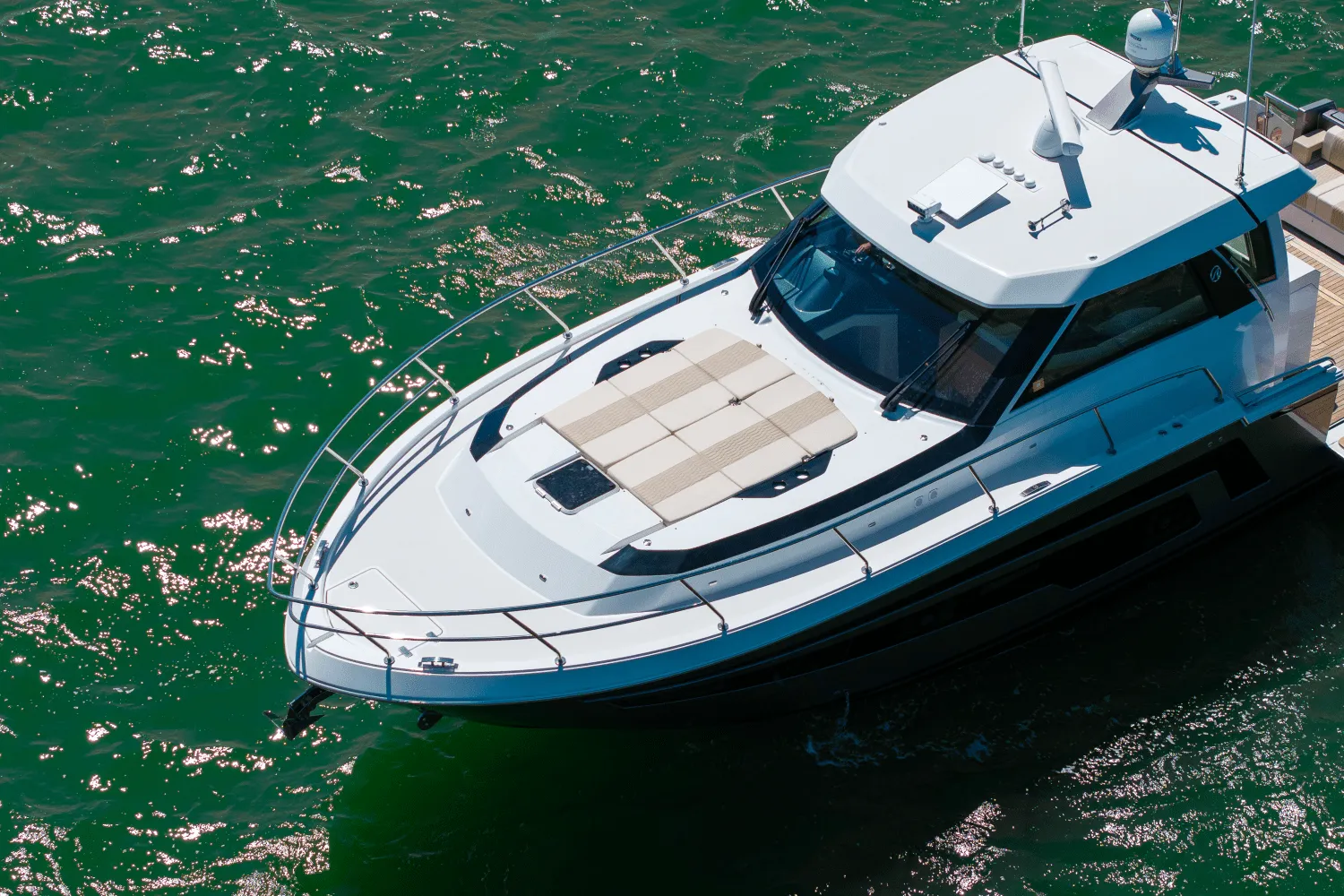

Foredeck:
- Cup holders (4) 2 each side of sun pad
- Sun lounge pad, full size, split with adjustable headrest
- Anchor locker access hatch with custom 316 SS hinges
- SS custom bow railing with hidden fasteners
- Upgrade: Bow sunshade with carbon fiber poles
- Upgrade: Anchor washdown at bow

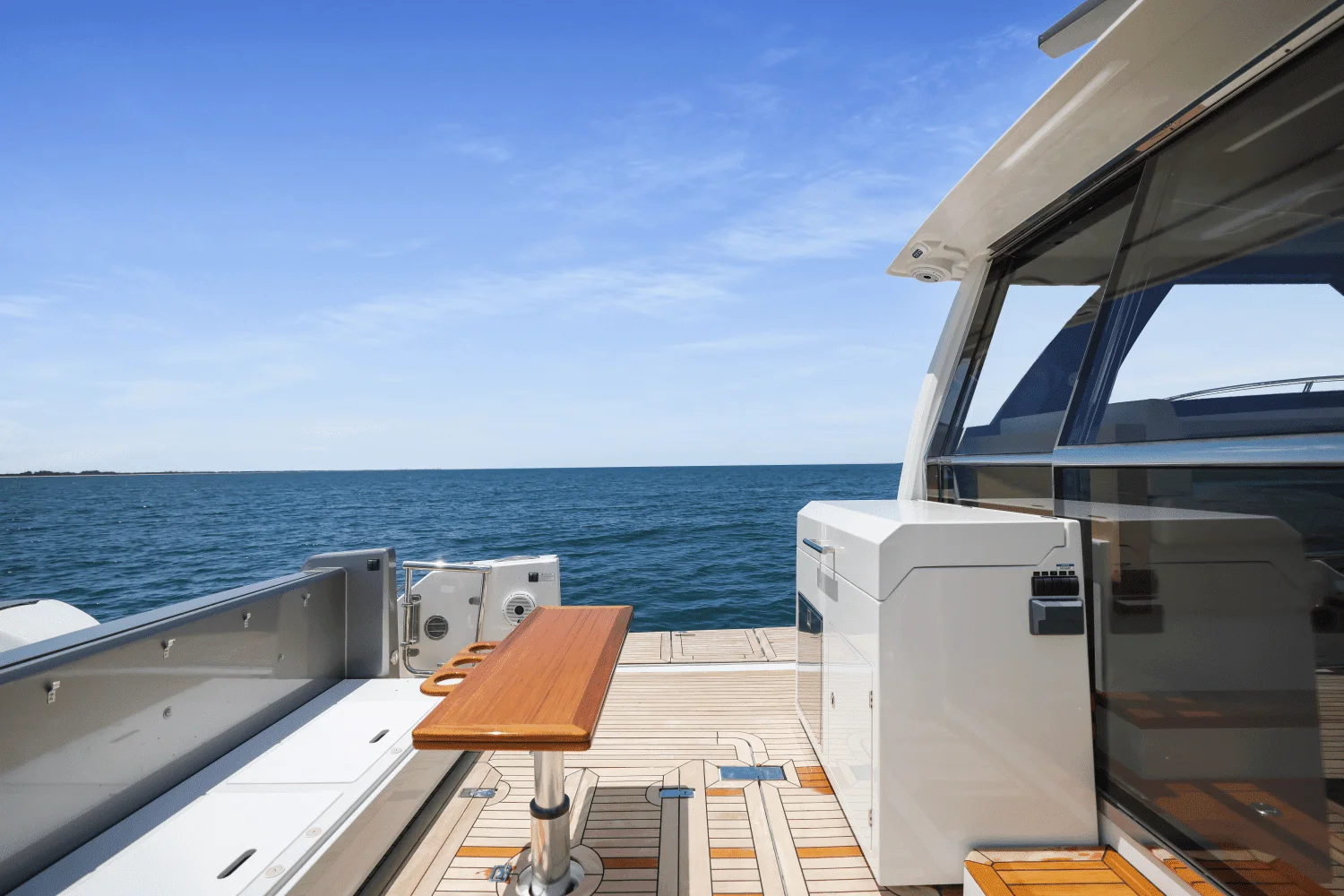

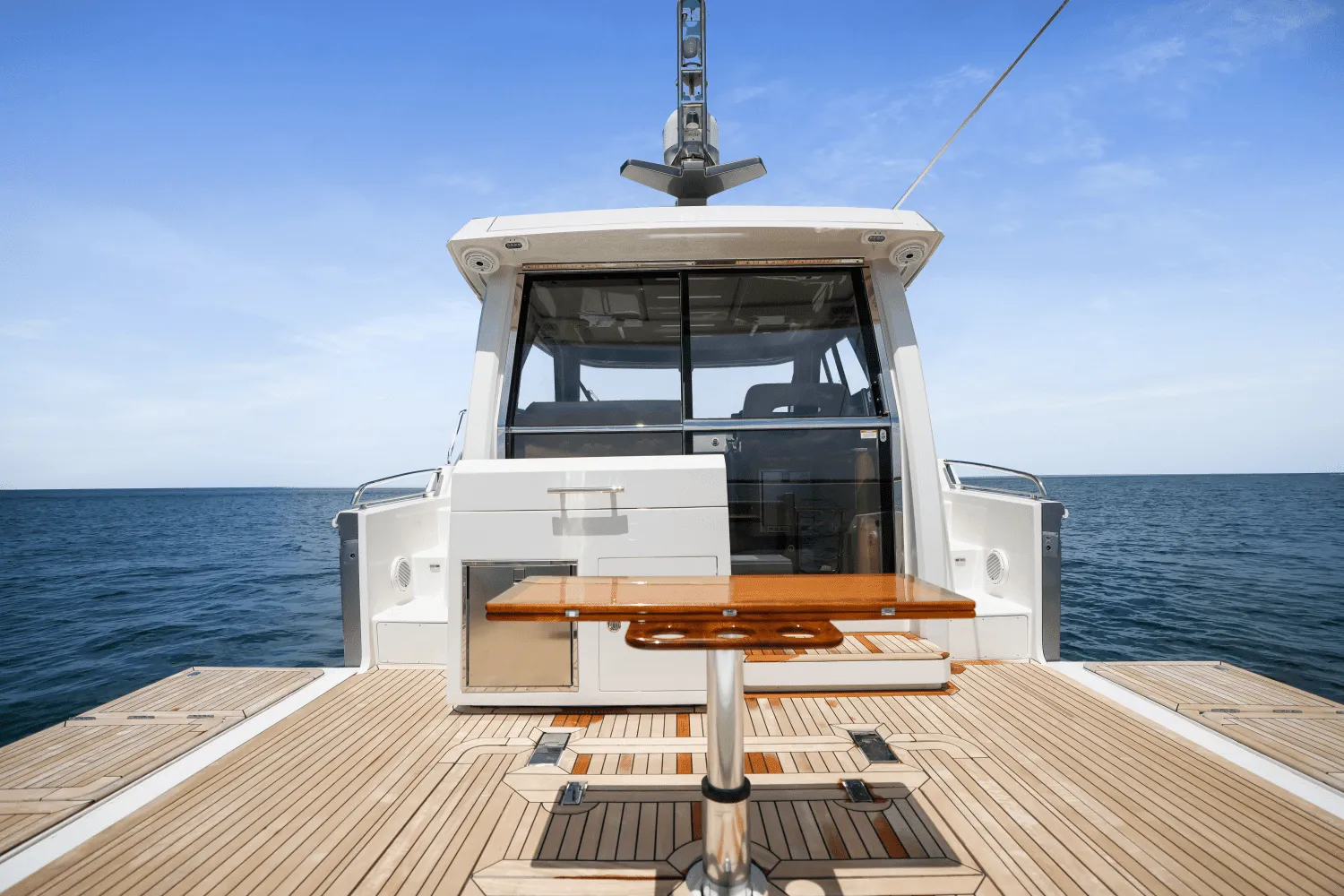

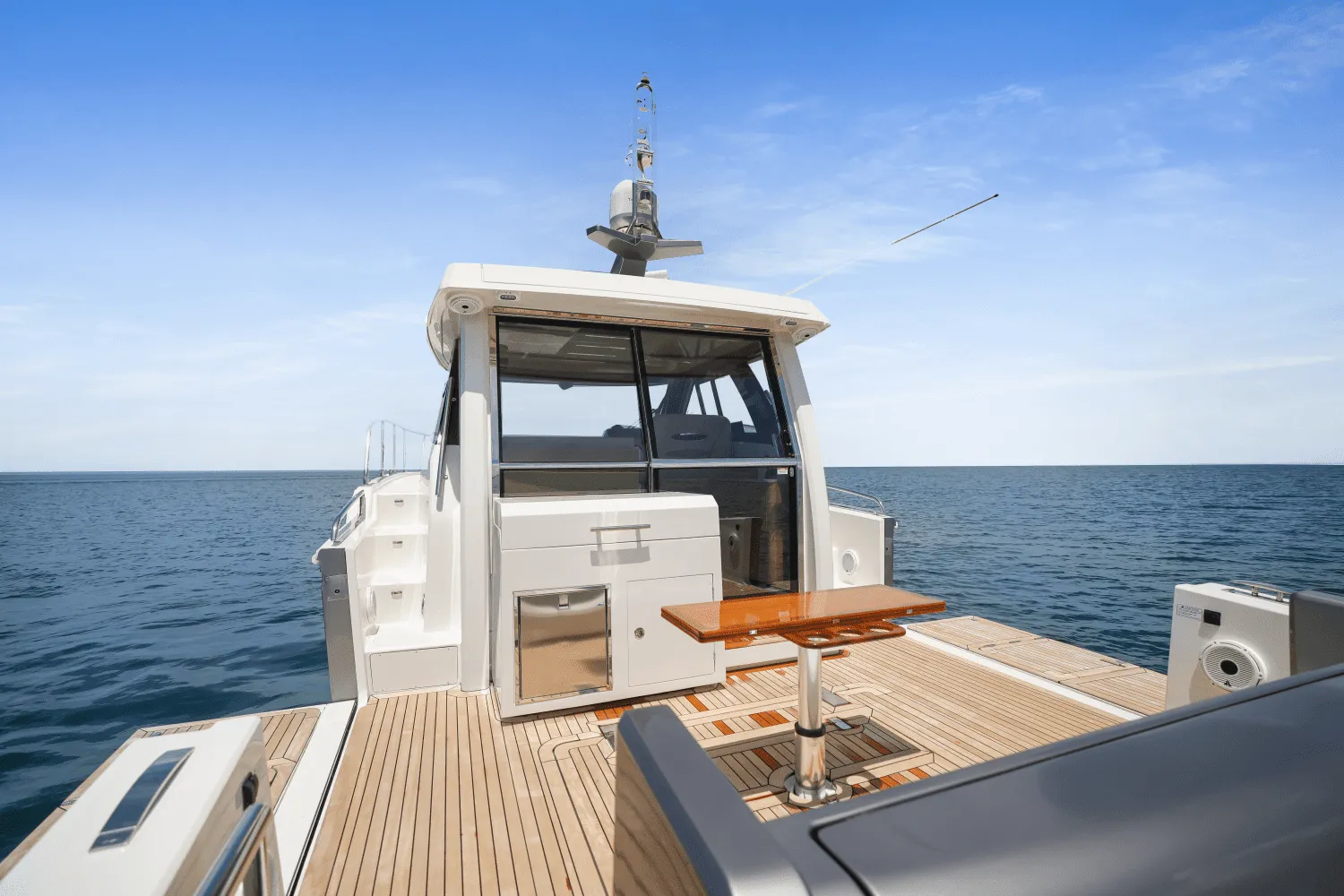

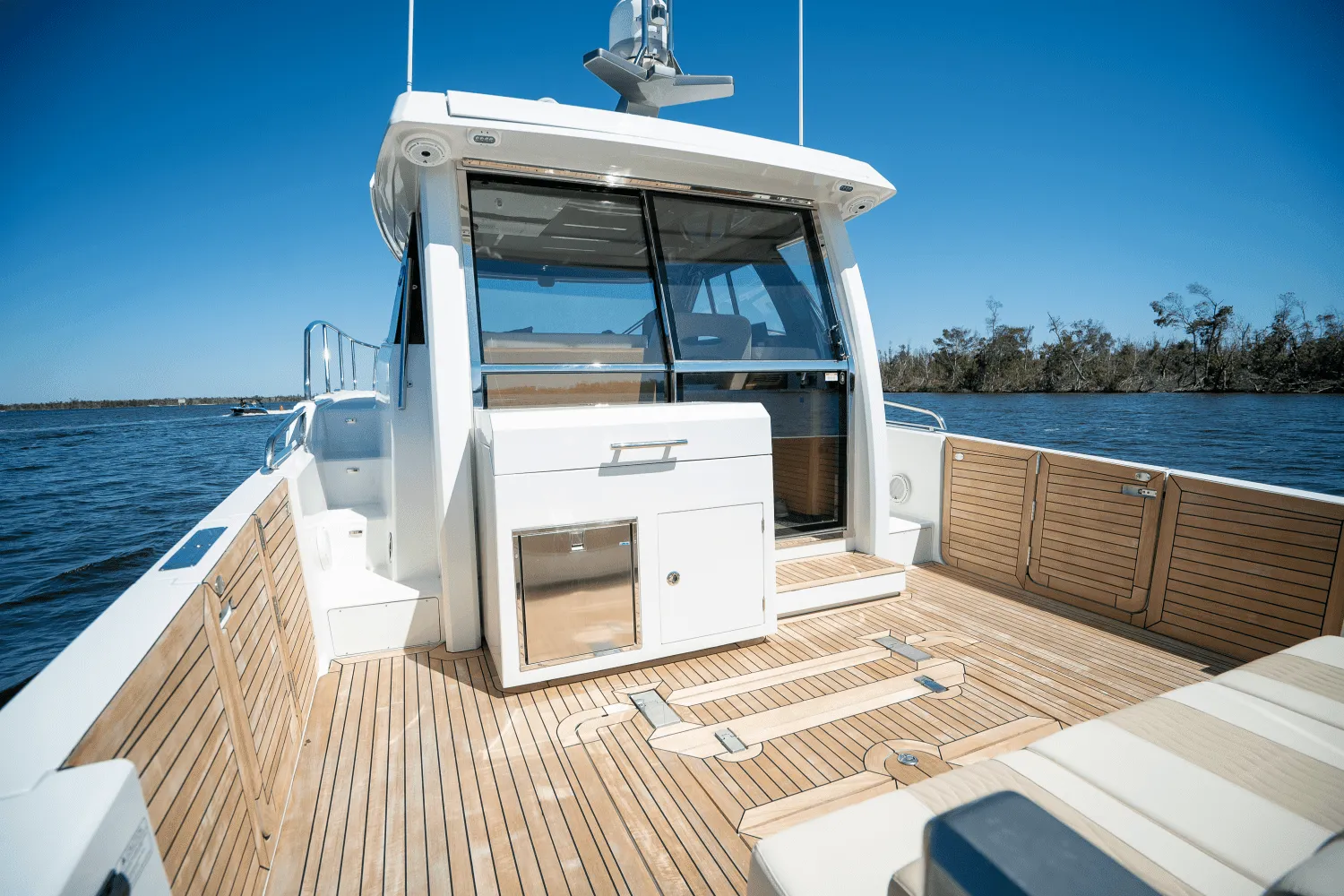

Cockpit;

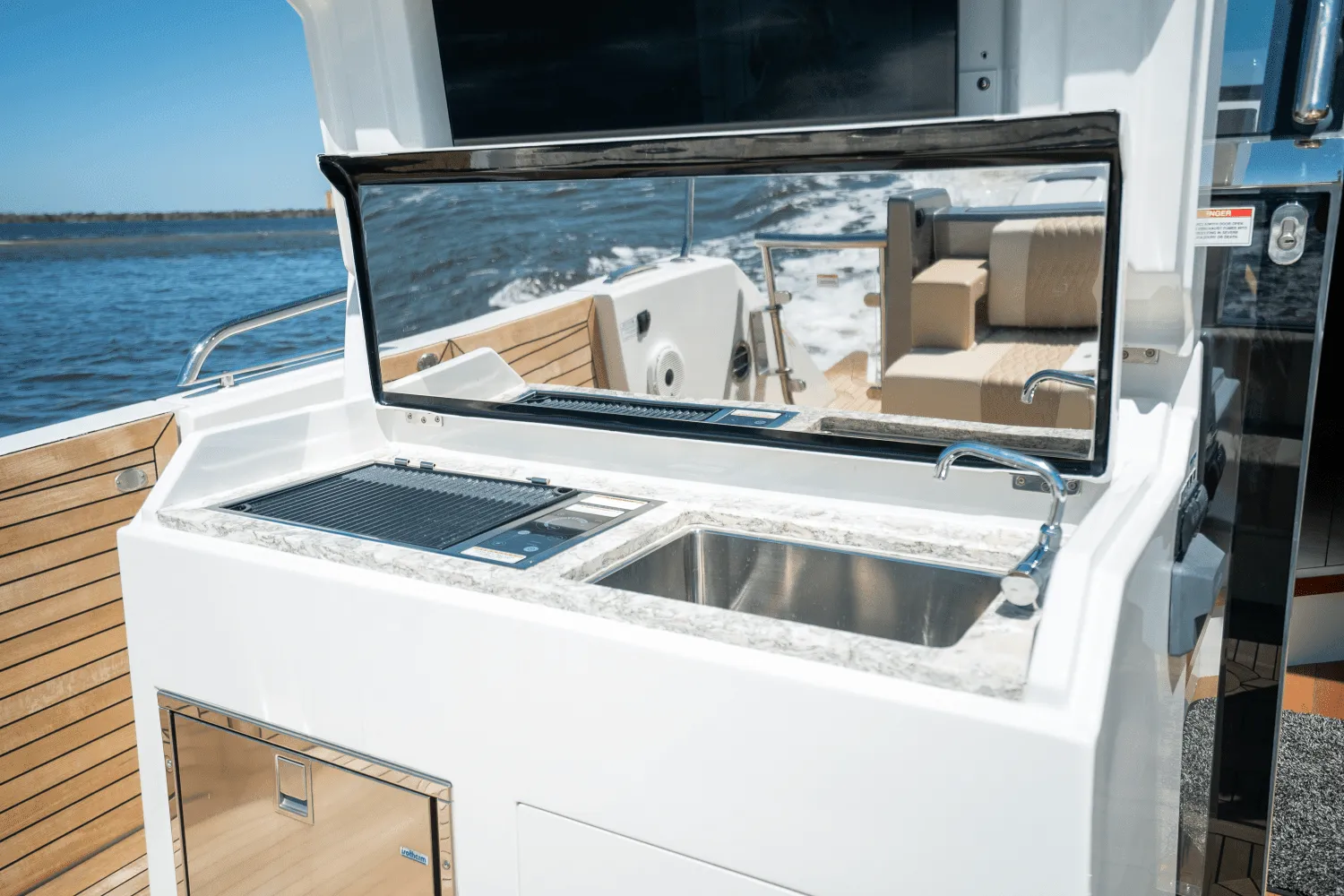

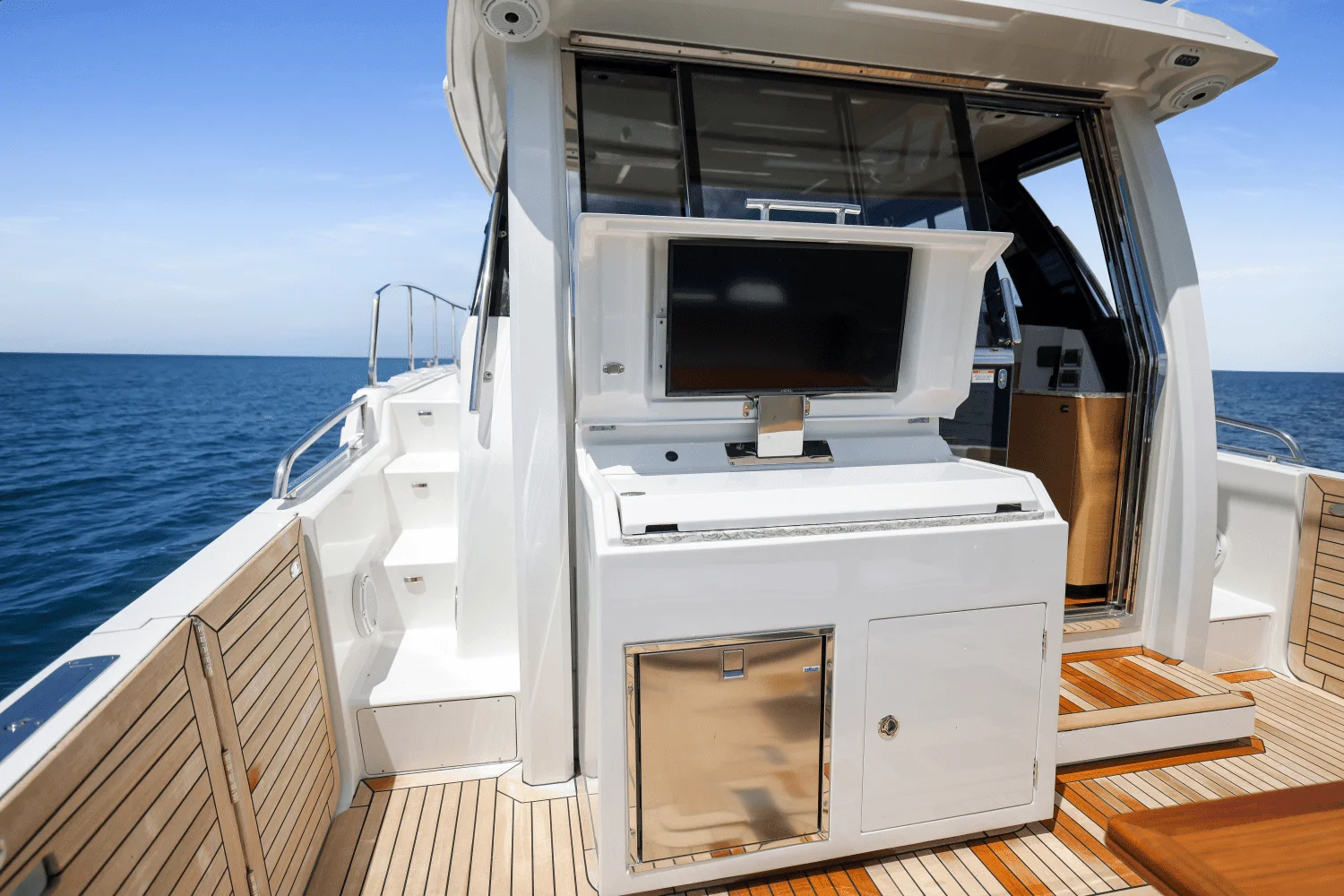

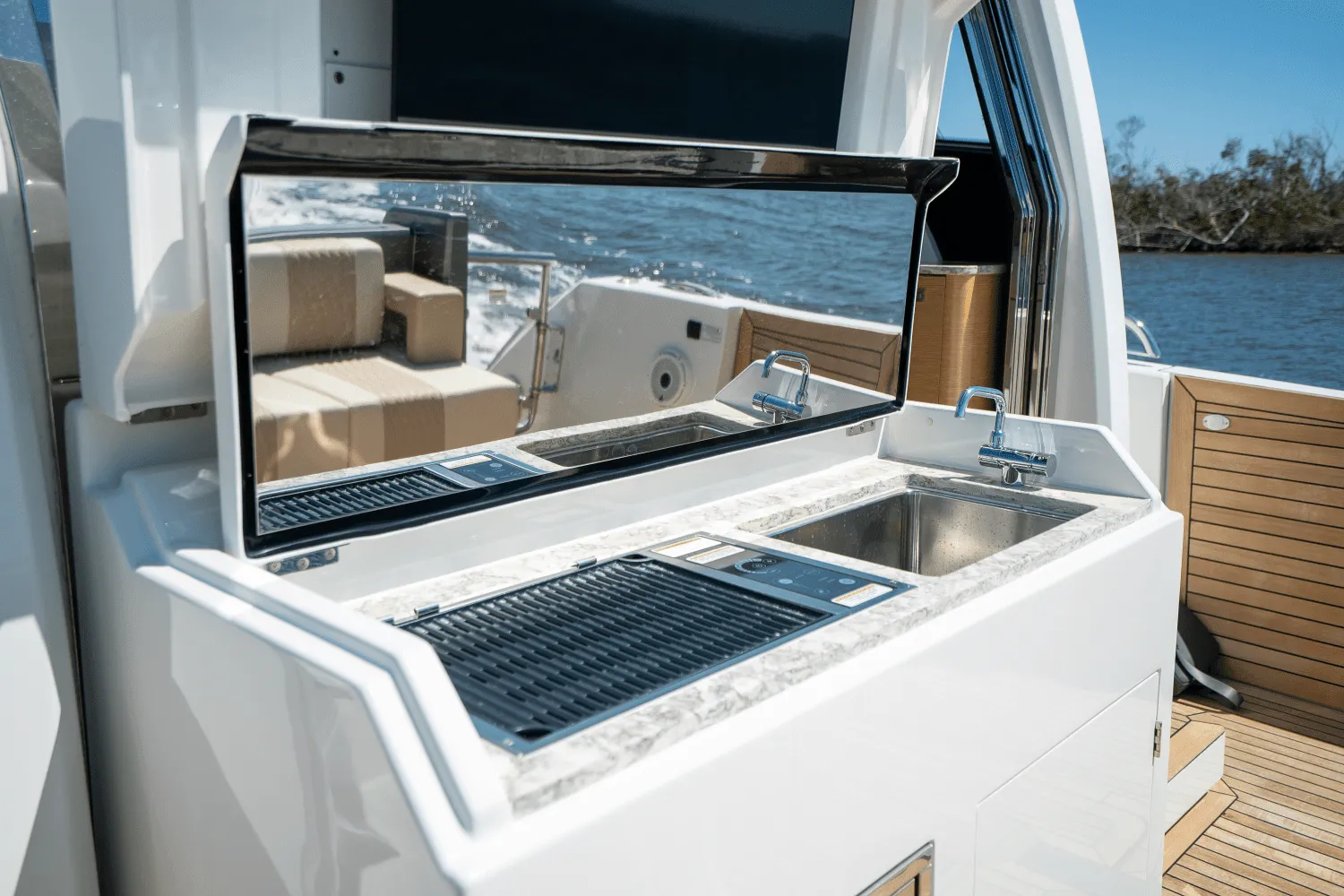

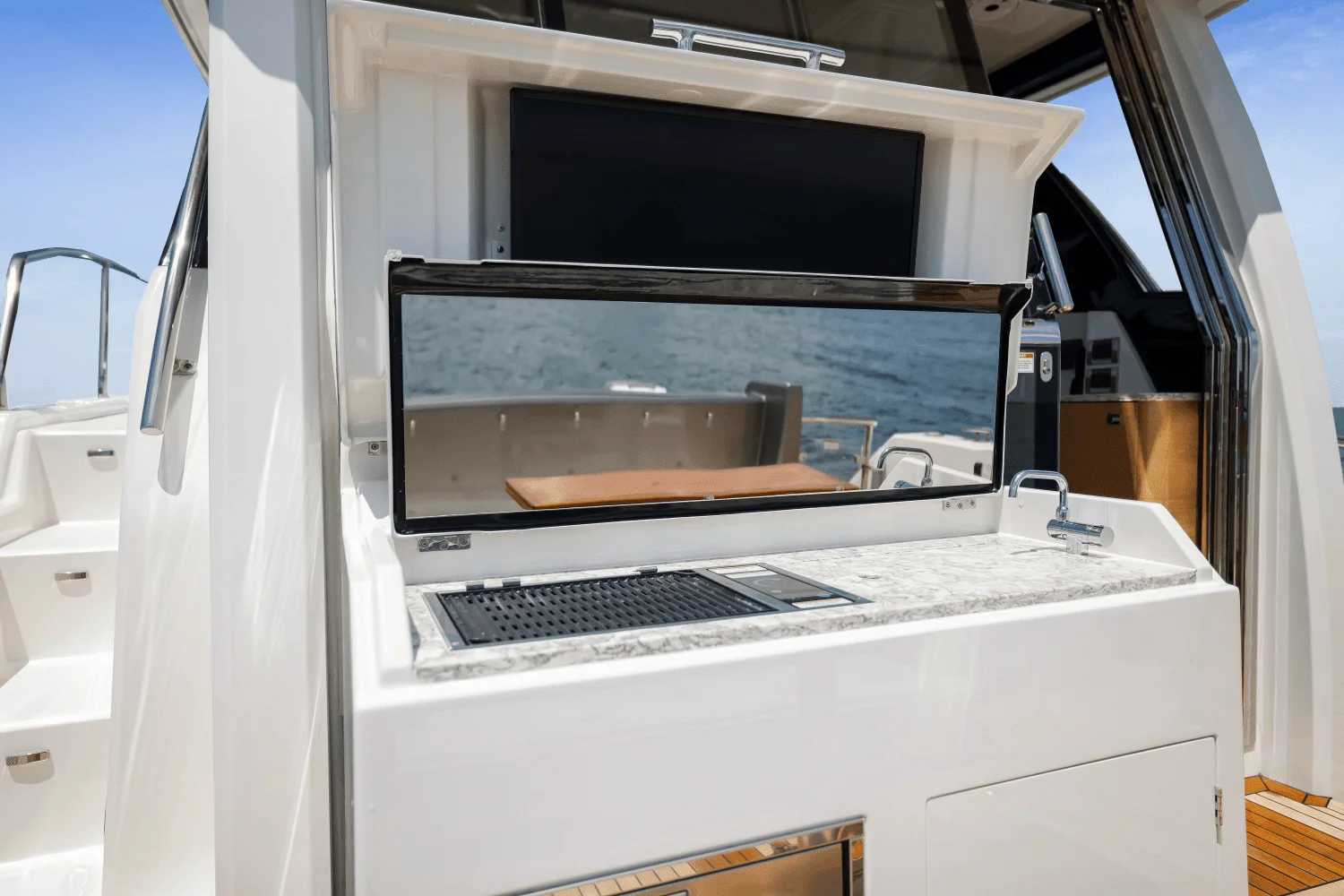

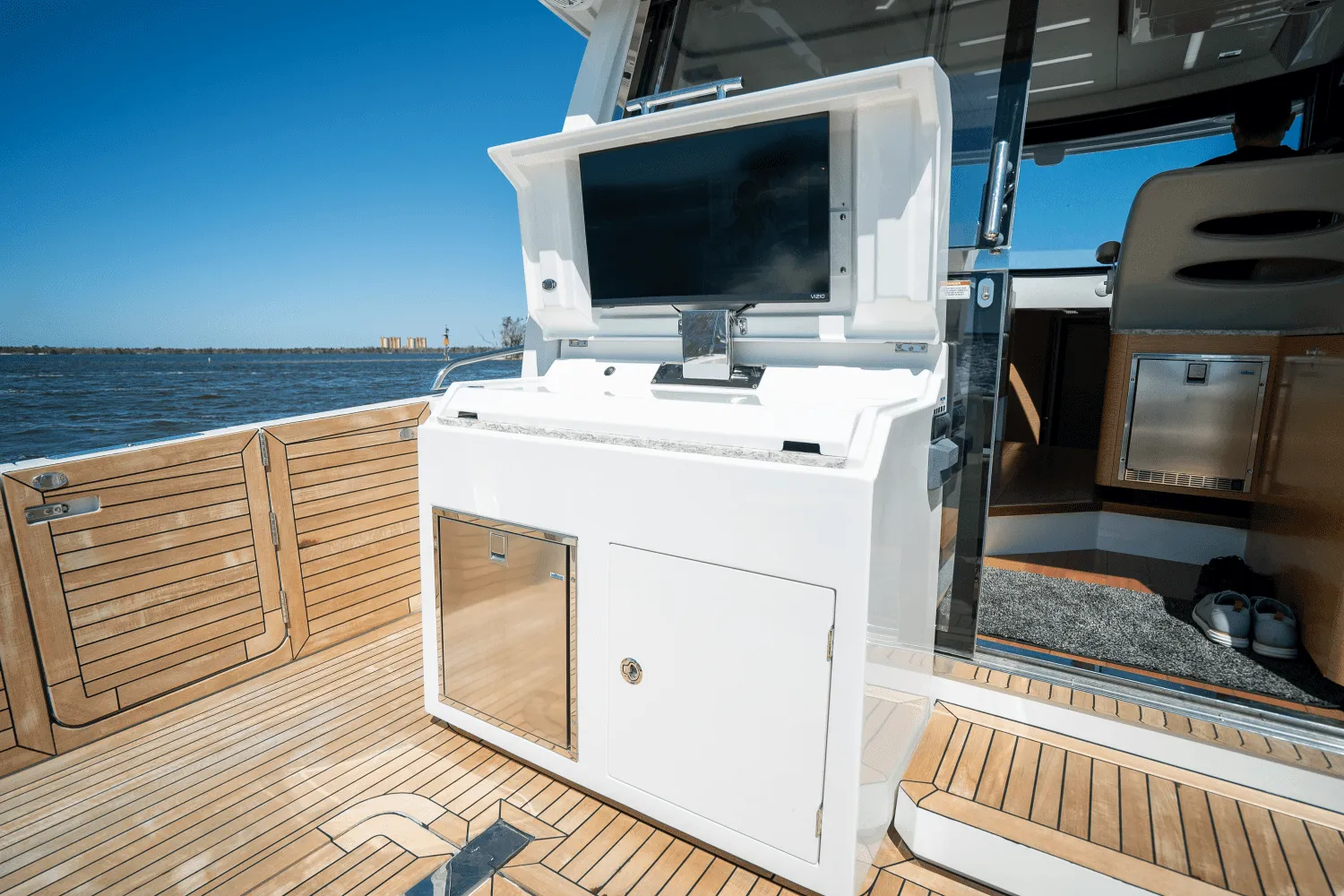

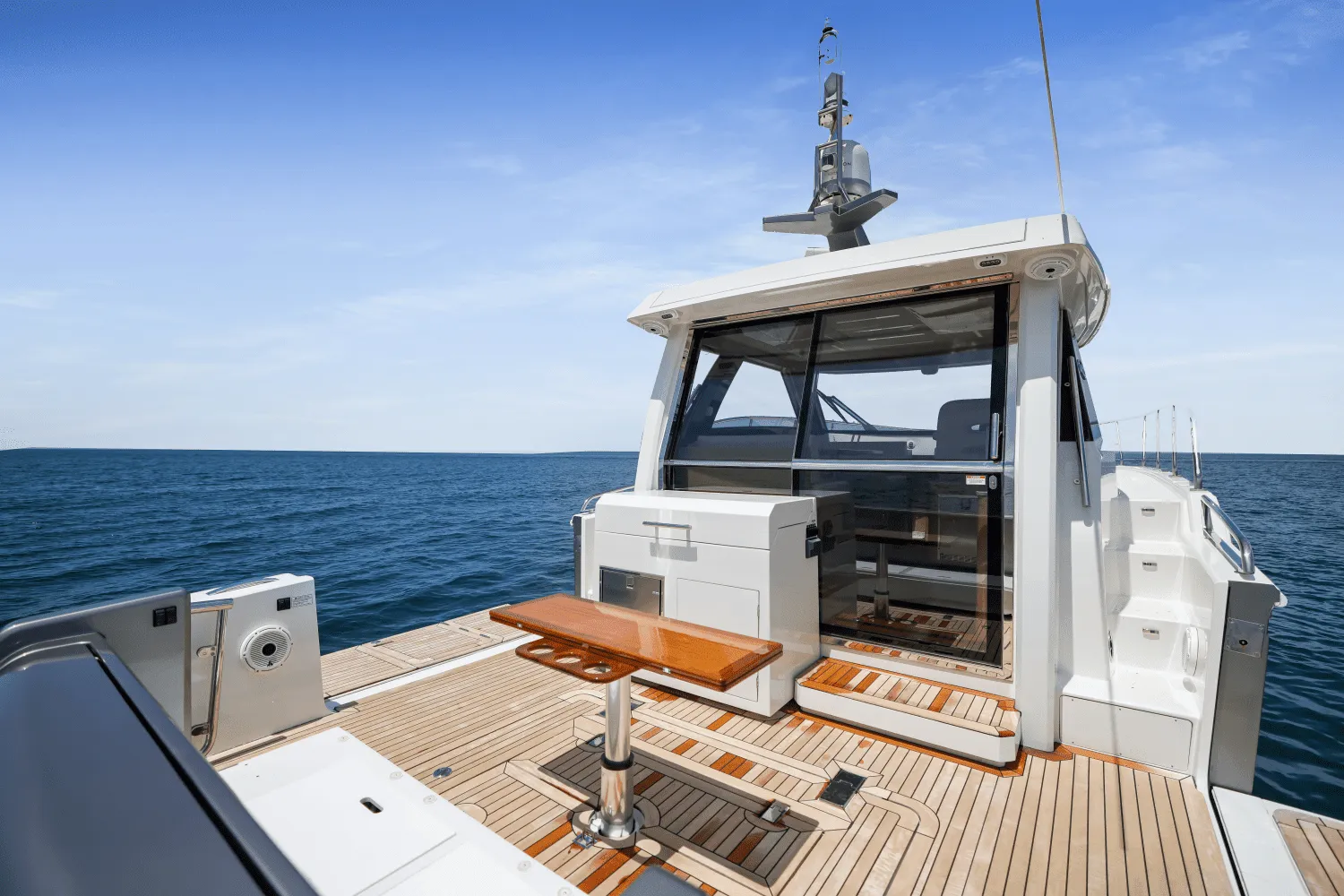

Outdoor Galley:
- Fully enclosed white fiberglass galley cabinet with hinged white fiberglass lid
- Scandvik SS under mount sink
- Ambassador elite hot & cold folding faucet
- Ambassador Marine hot & cold folding faucet
- Indel Webasto 65 liter drawer style refrigerator
- Storable cabinet with positive latch doors
- Upgrade: Kenyon grill

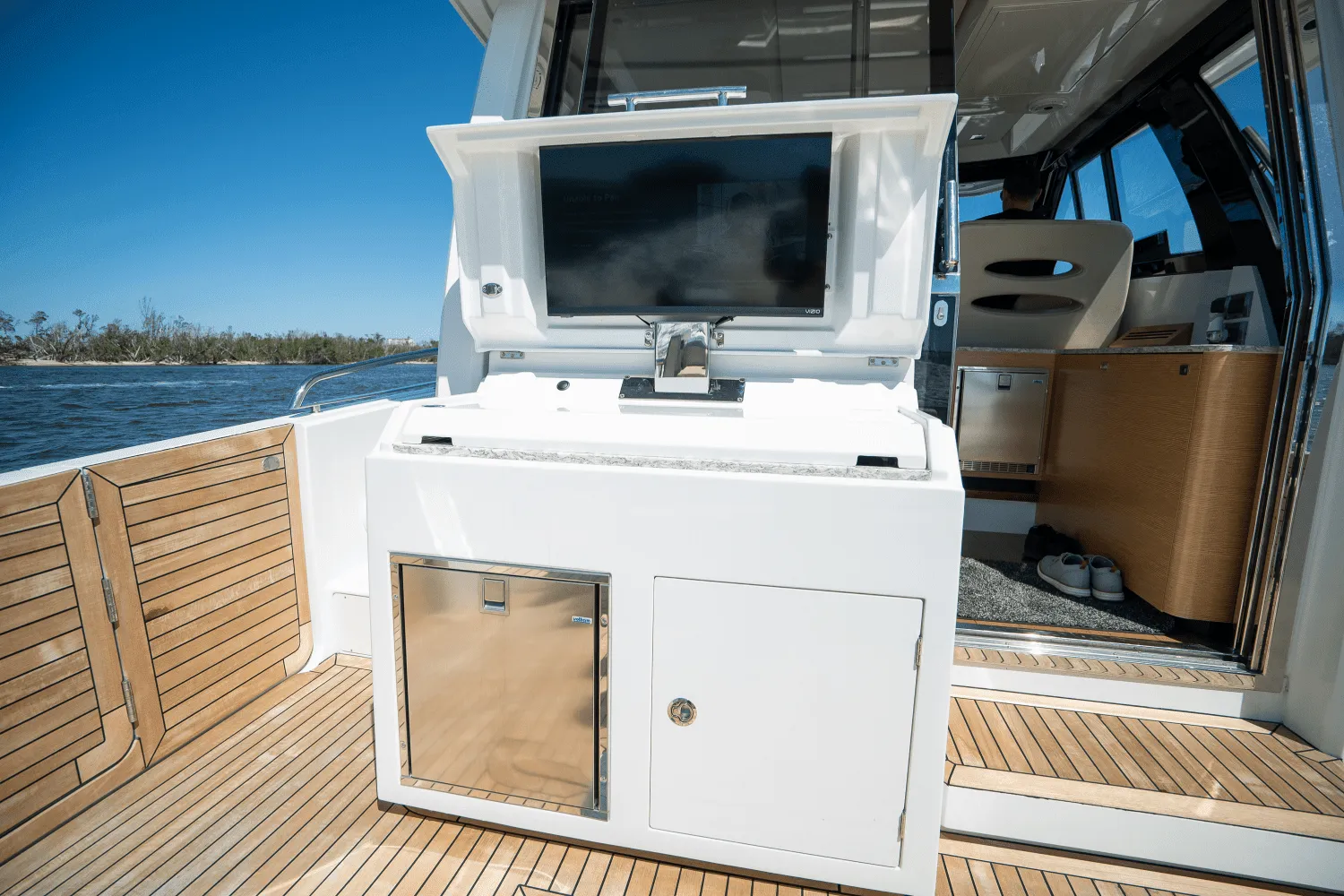

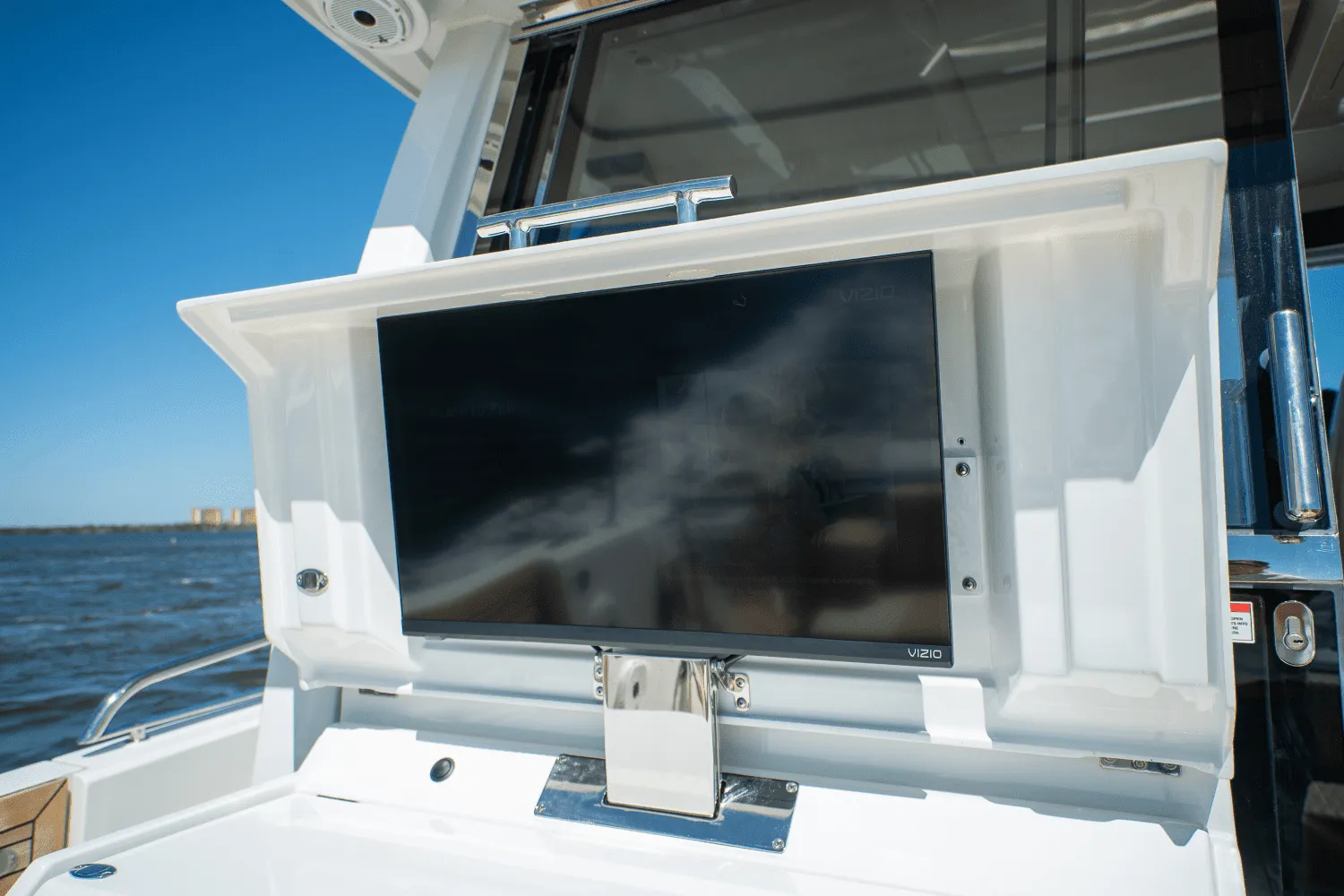

- Upgrade: custom mounted 32" TV in outdoor galley lid
Hardtop:
- Upgrade: Custom fiberglass hardtop with hull color match painted molded antenna mast
- Upgrade: Hardtop spreader LED lights

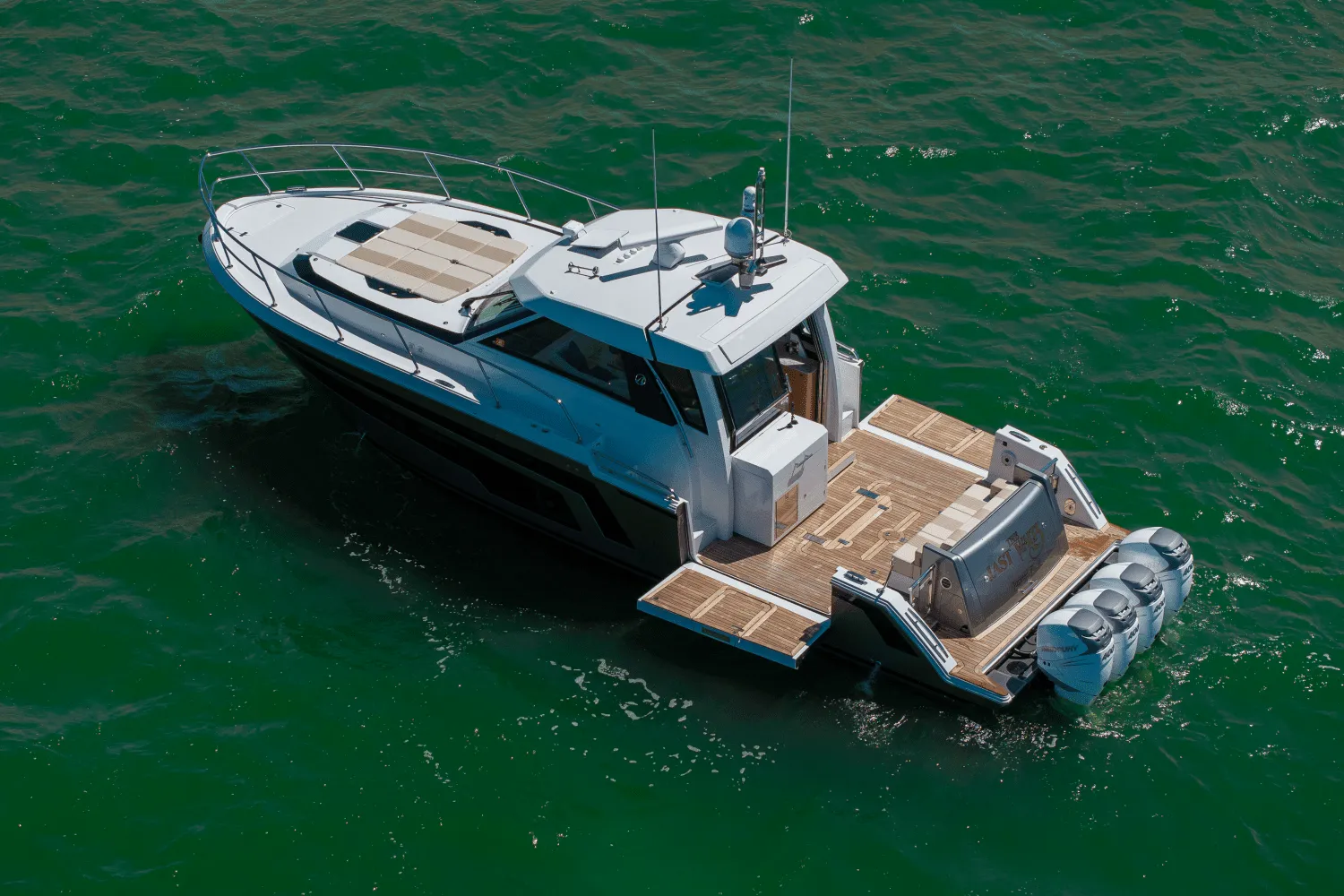

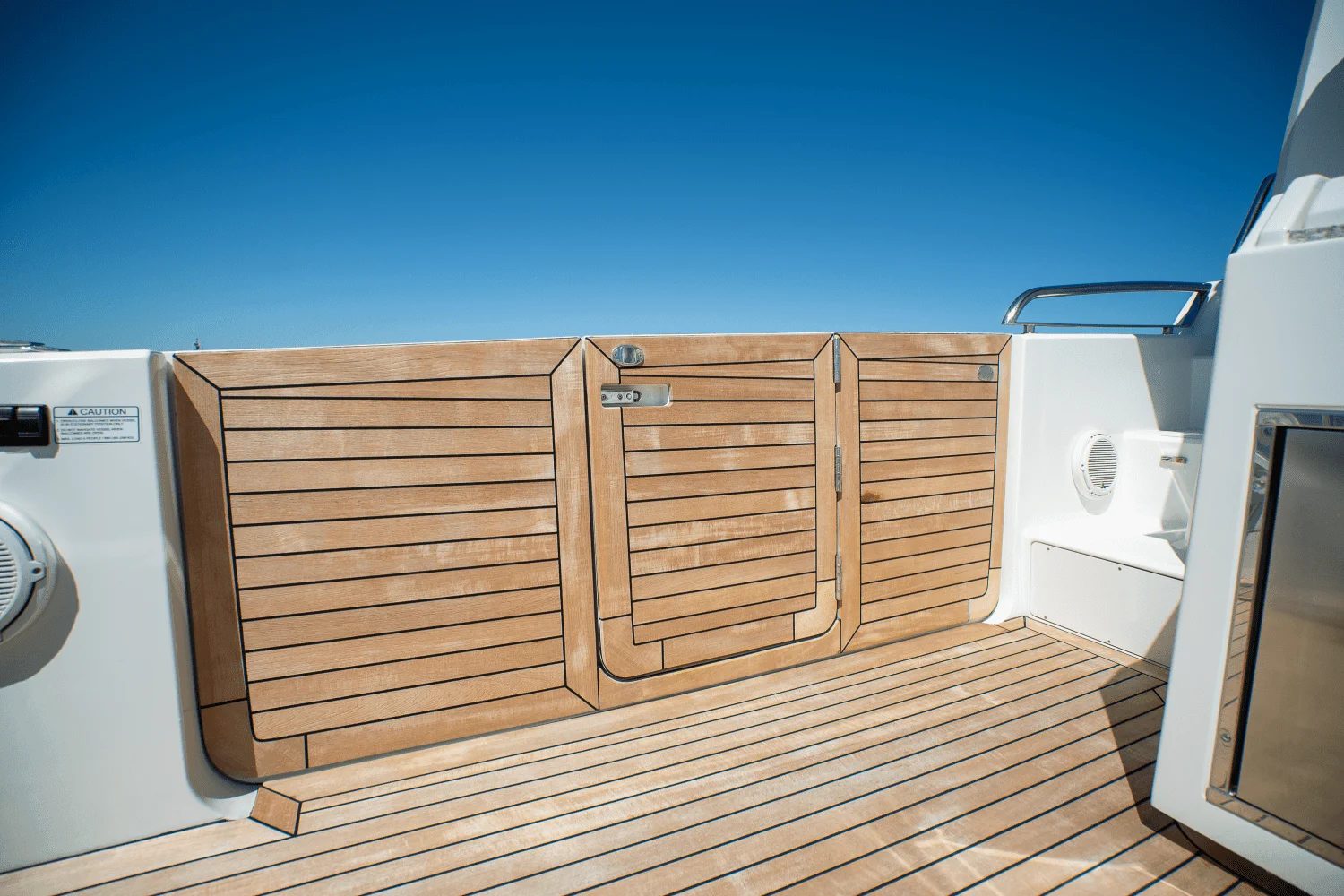

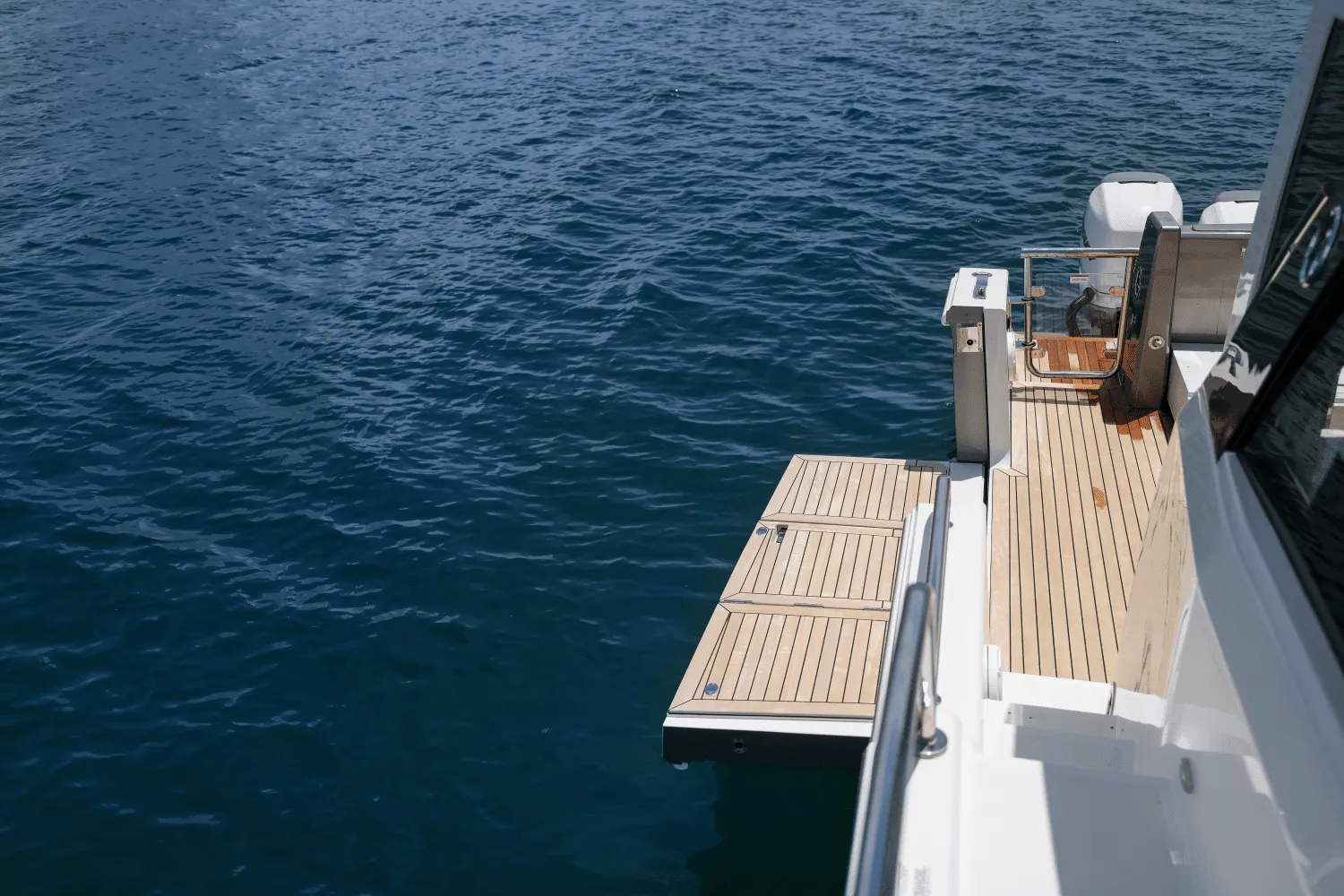

Side Articulating Balconies:
- Power-actuated cockpit side articulating balconies (port & starboard)

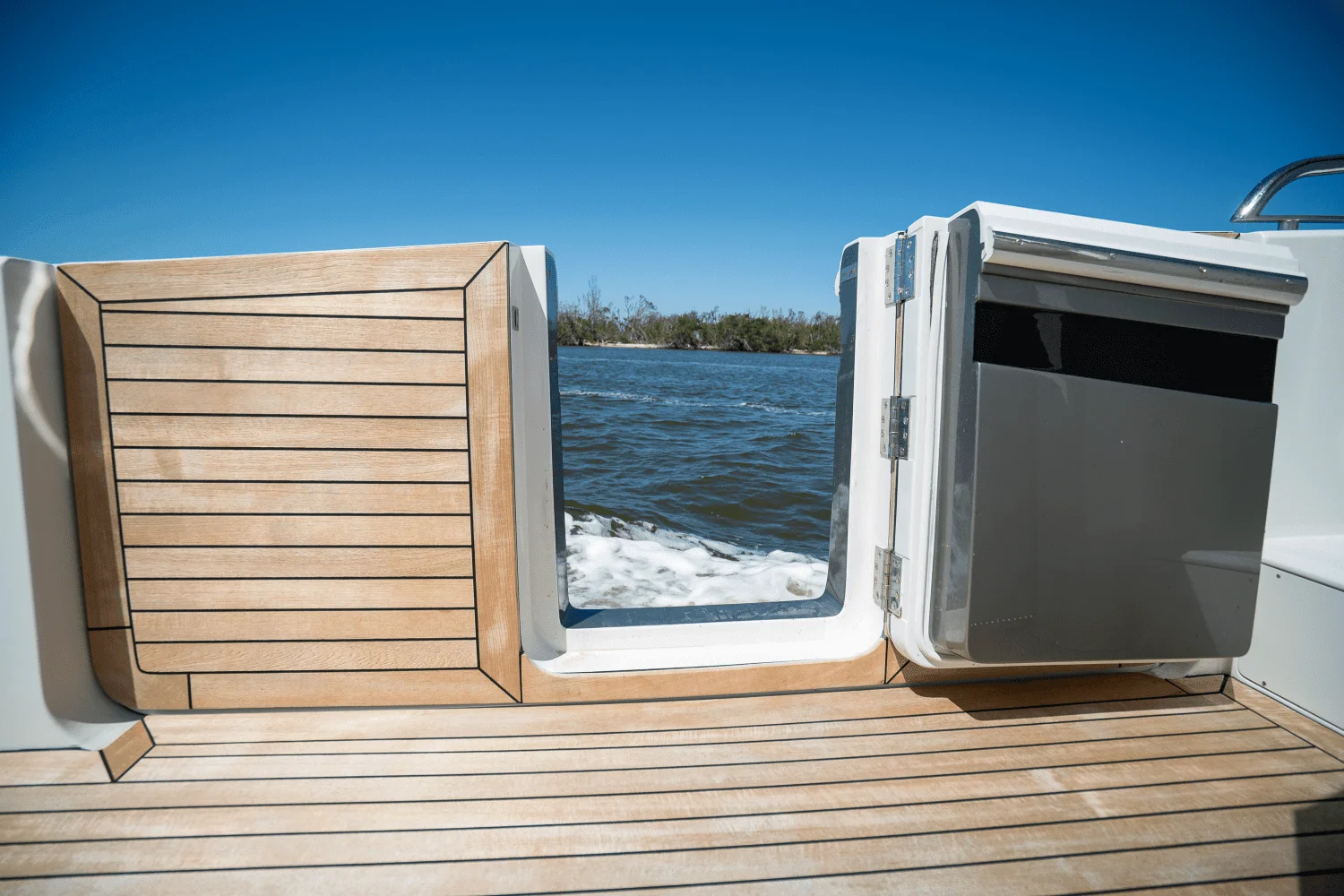

- Side patented boarding access doors (port & starboard)
- Pull-out boarding ladder(port)
- Upgrade: Carbon fiber safety rails for fold-down bulwark port & starboard

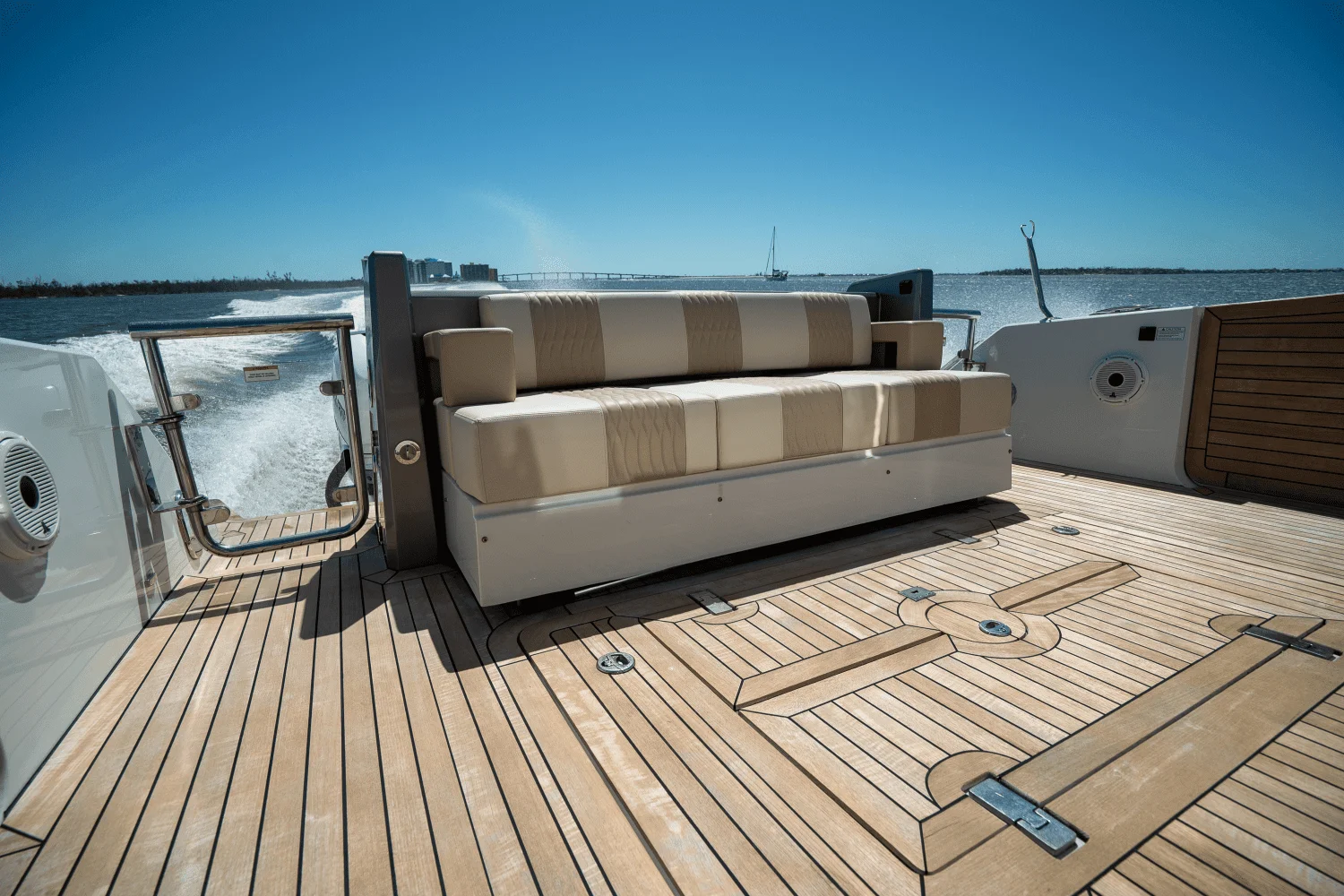

Cockpit Seating:

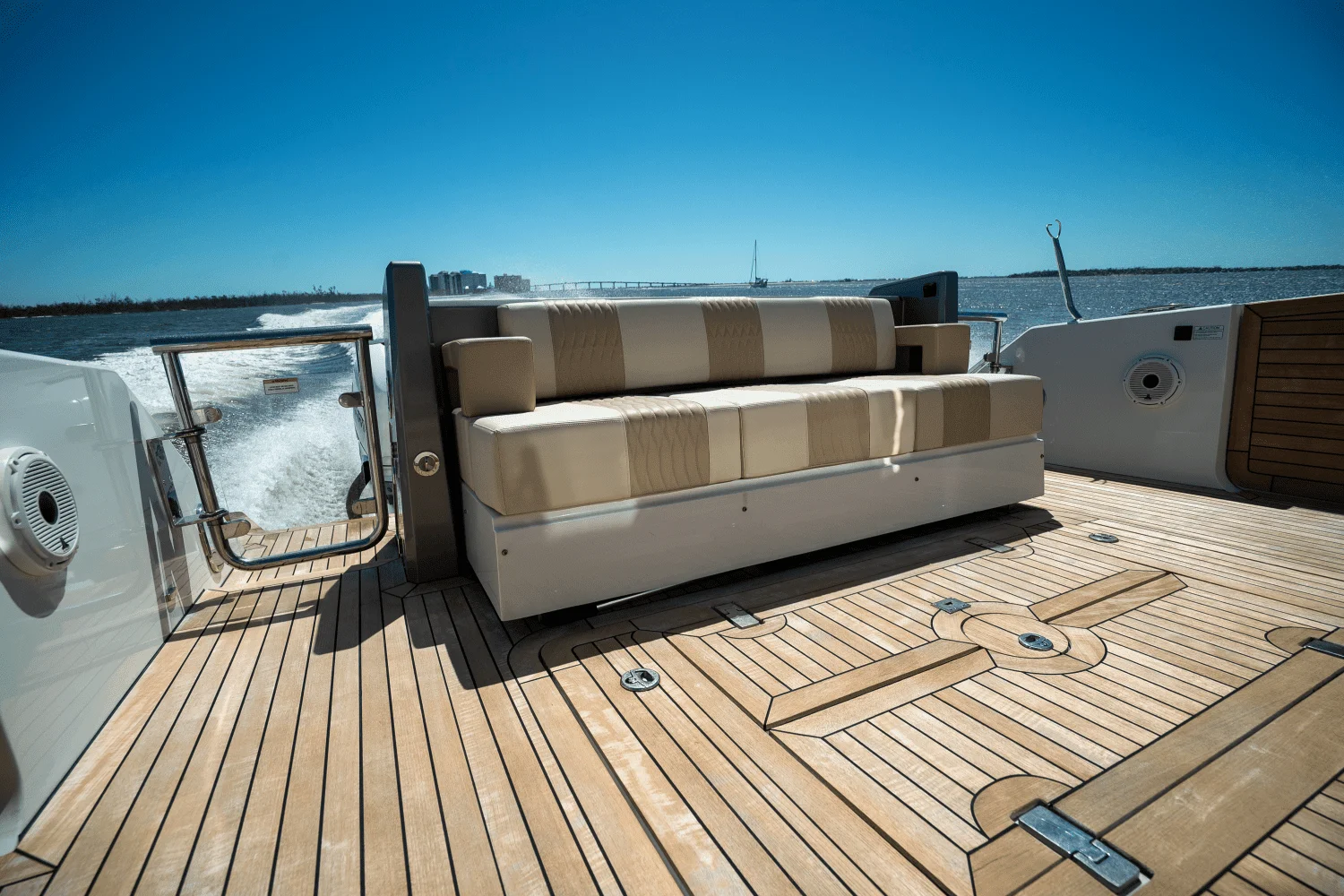

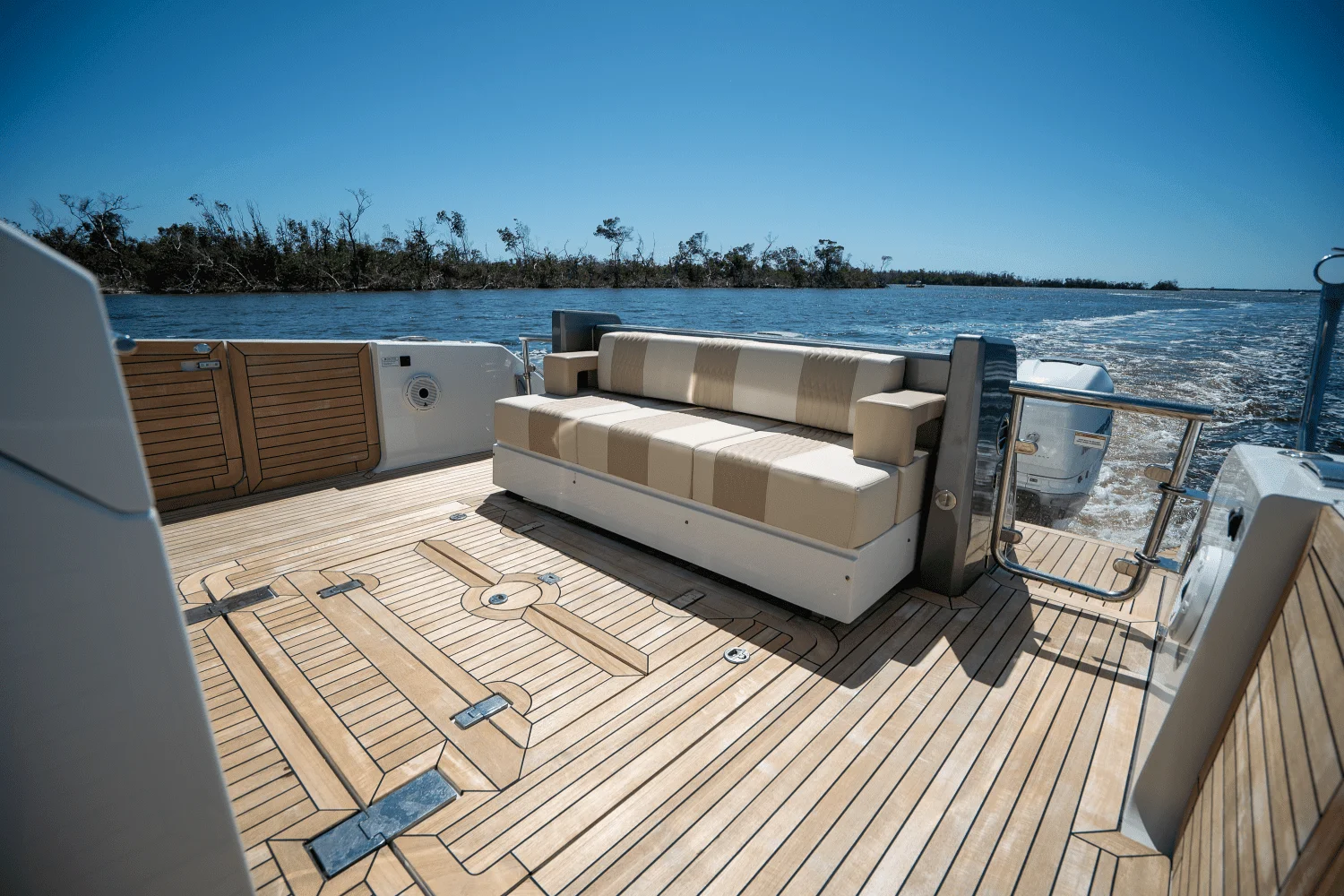

- Upgrade: Stern sofa with armrests and SS cup holders (2)
- Upgrade: 3-position, electric hi-tow teak table (floor, coffee, dining) with 2 folding leafs, lowers and stows in custom hatch recess with sealed hatch lids
- Upgrade: Retractable motroized cockpit Shuresade
Other:
- Rod holders (2 funwale, 1 port & 1 starboard)
- In-floor, oversized power actuated bilge access floor hatch with custom 316 SS hinges and drains
- Wash-down, raw water
- Wash-down, fresh water

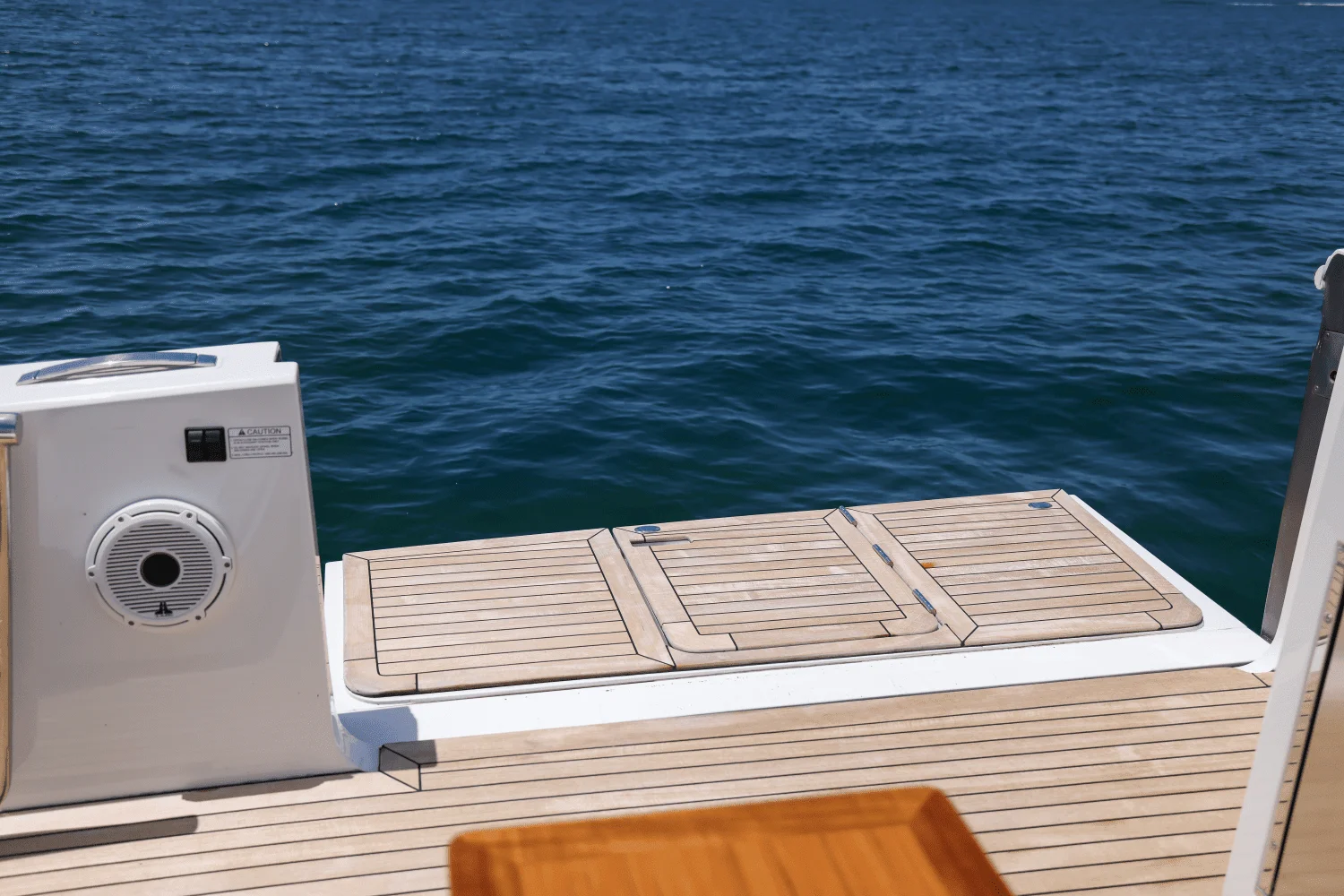

Transom:
- Cockpit 316 SS access doors (port and starboard sides)
- Ladder, hull side above water line (starboard)- emergency
- Storage compartment full size, AFT side with "vertical door" operation
- Cockpit hot and cold shower
Audio:
- Stereo, JL Audio 12V AM/FM, Bluetooth
- Amplifier, JL Audio
- Subwoofer, (2) 8", JL Audio

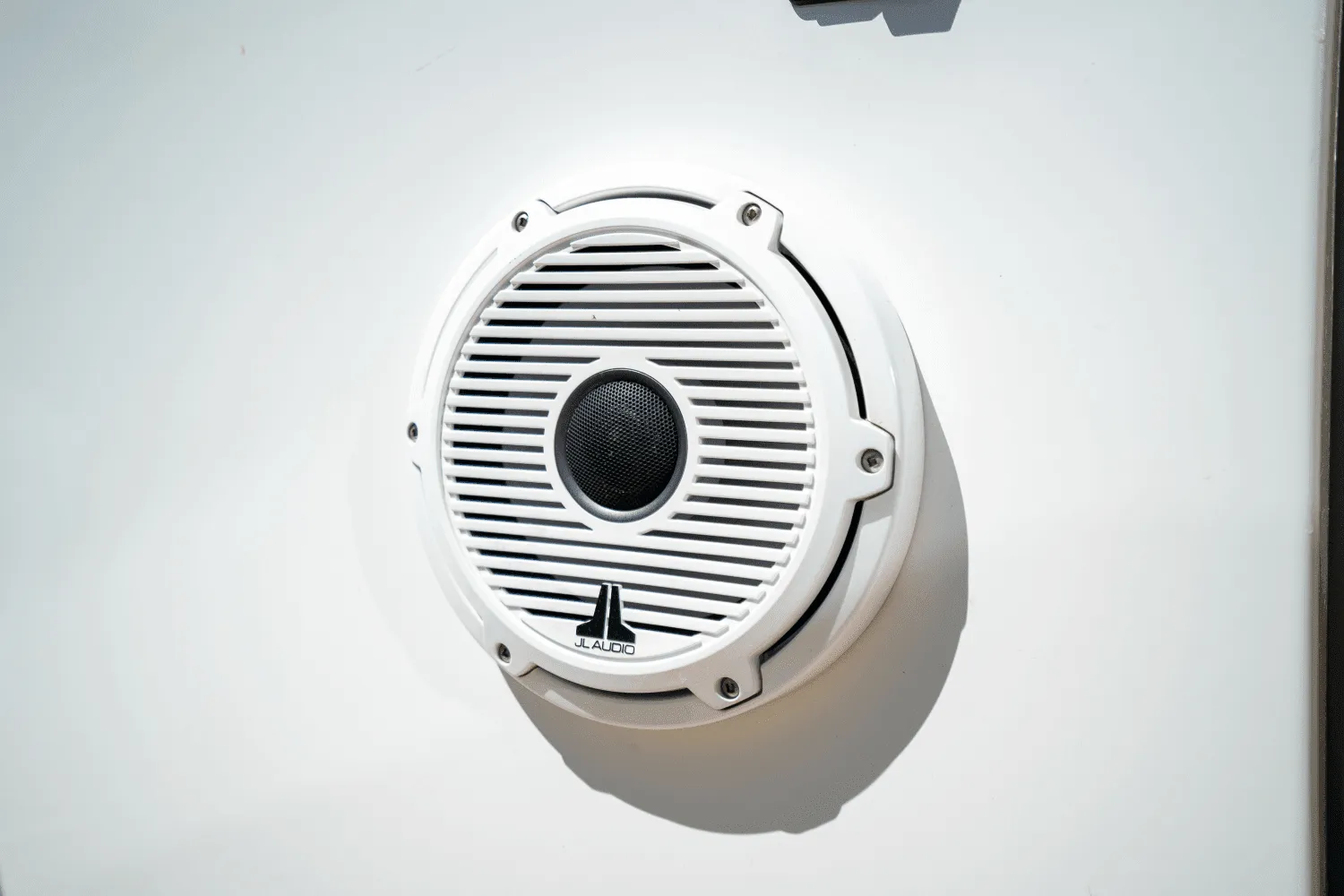

- Speakers, JL Signature Series ((4) 6.5" Speakers, (2) 8.8" Speakers)
Exterior Decor:
- Custom designed exterior with designer materials. Ergonomically designed and laid out to enhance owner experience/ performance
- Luxurious exterior upholstery and close-cell foam
- Cambria Berwyn galley countertop
- Upgrade: Canvas cover pacakge
Accommodation, Interior

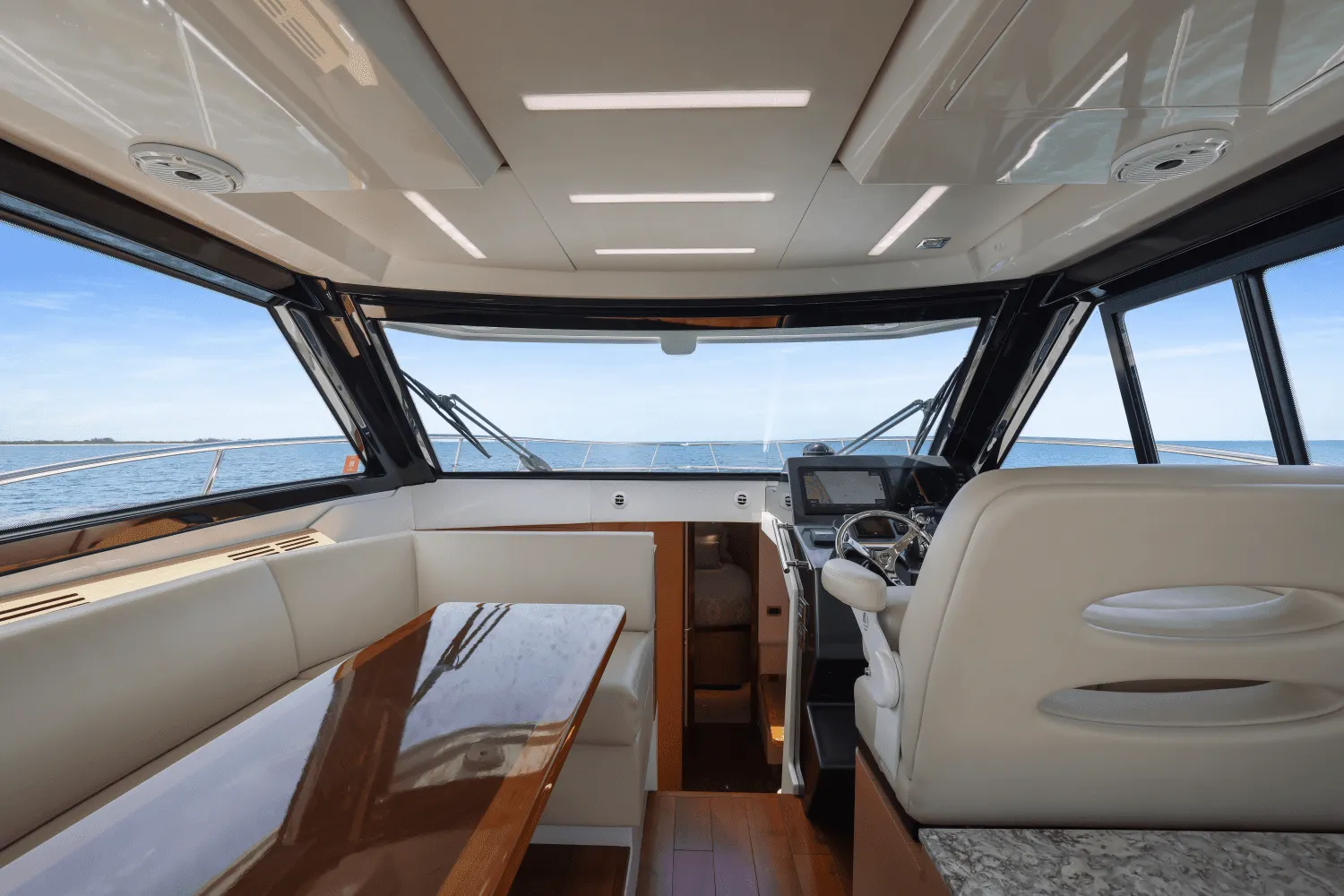

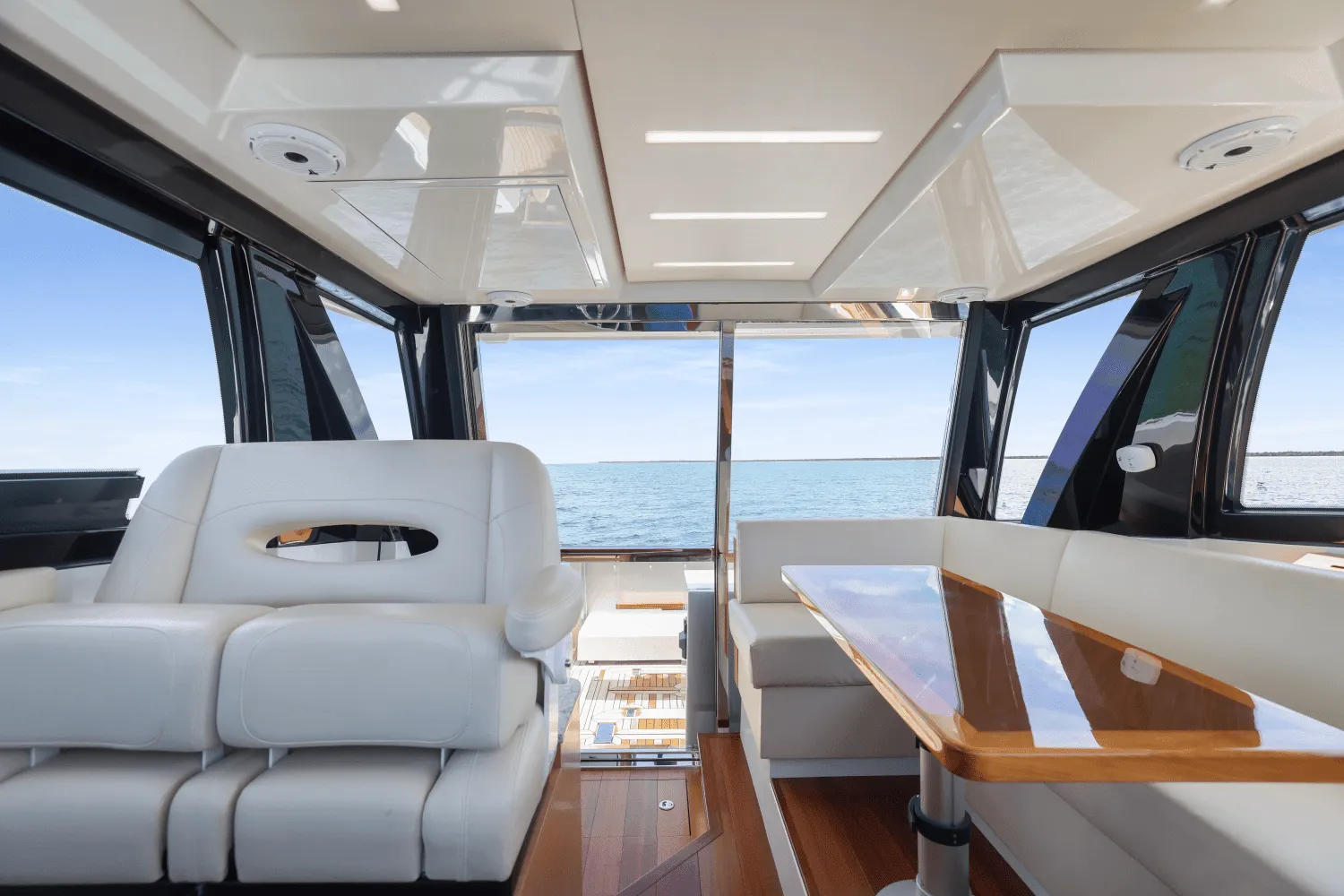

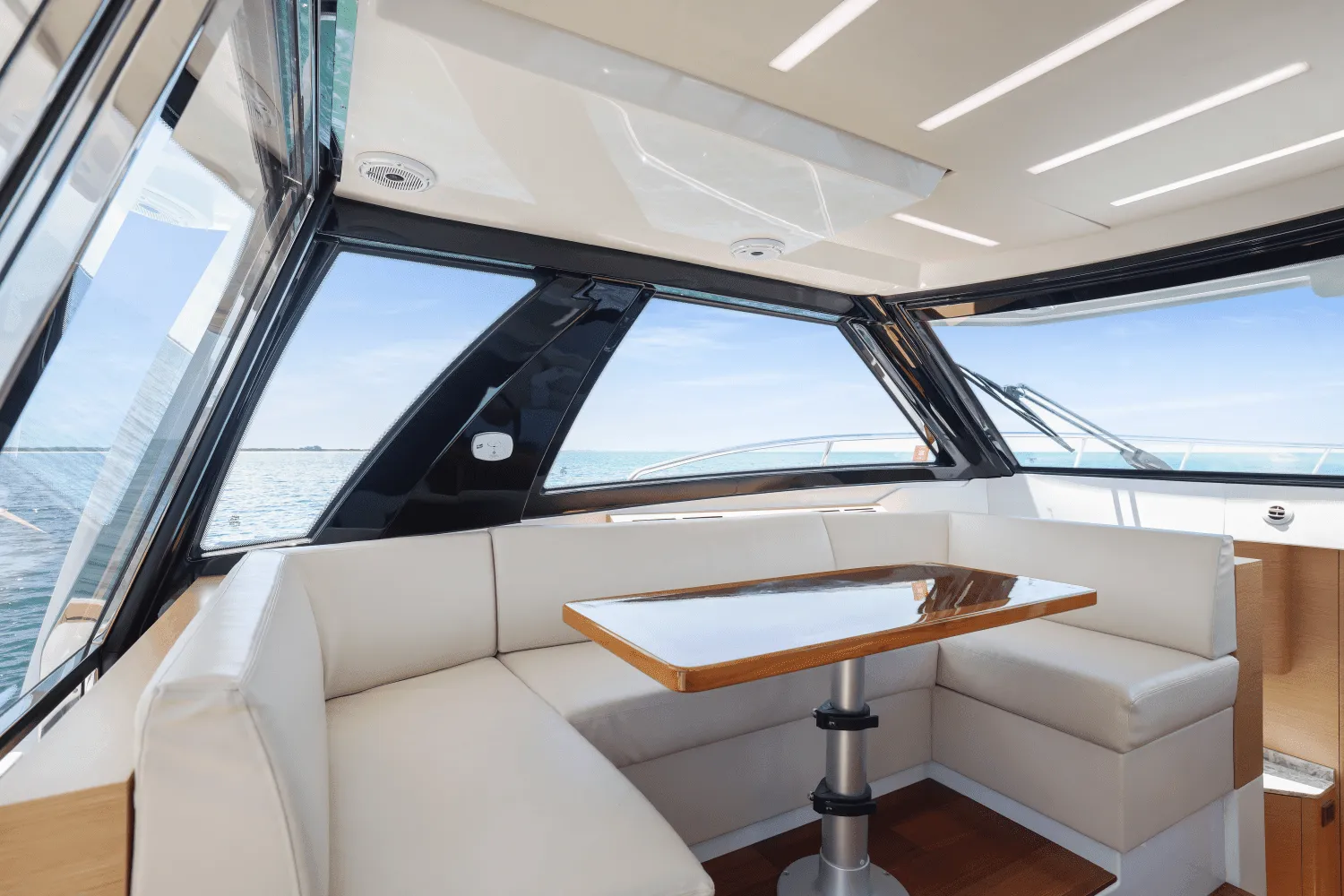

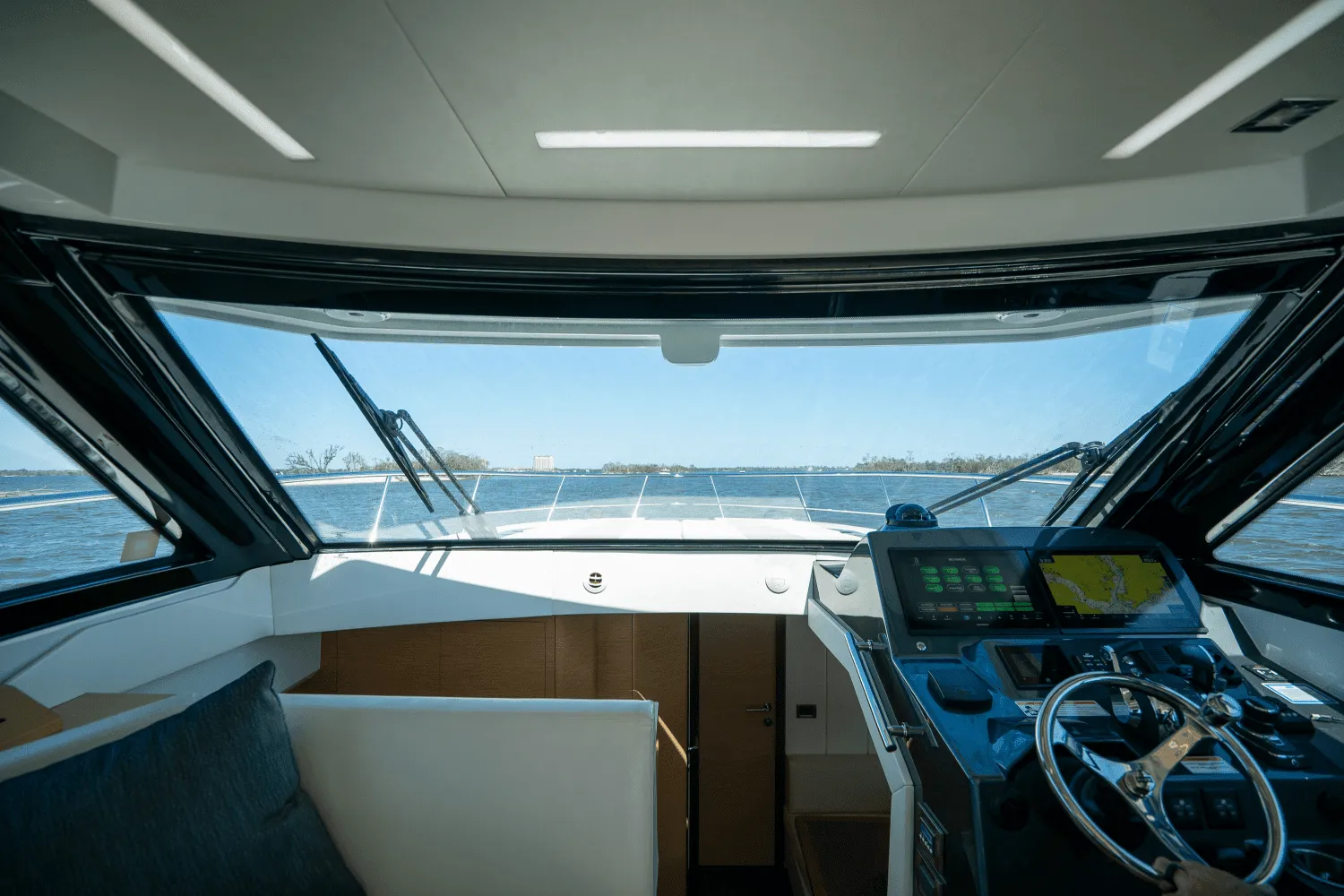

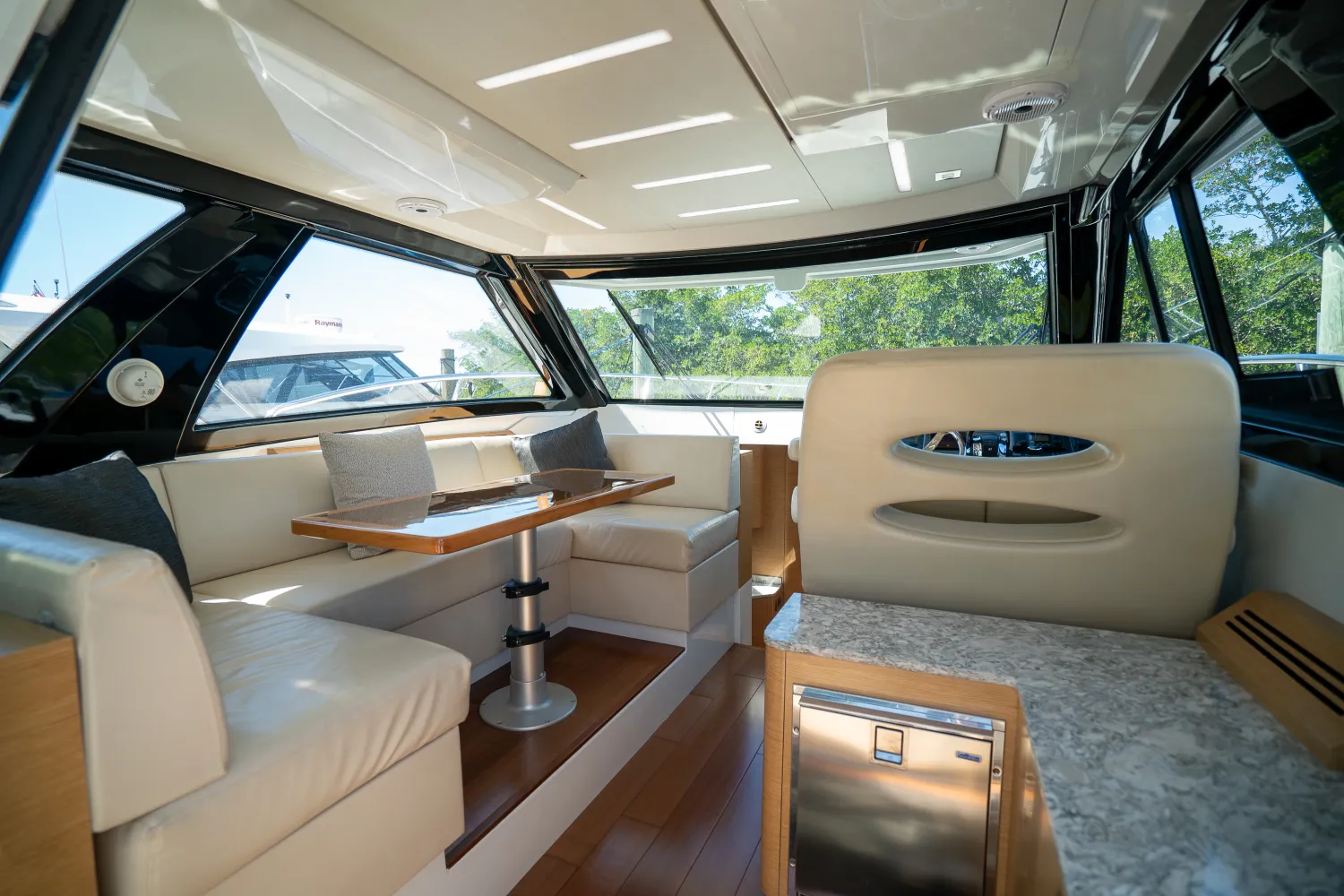

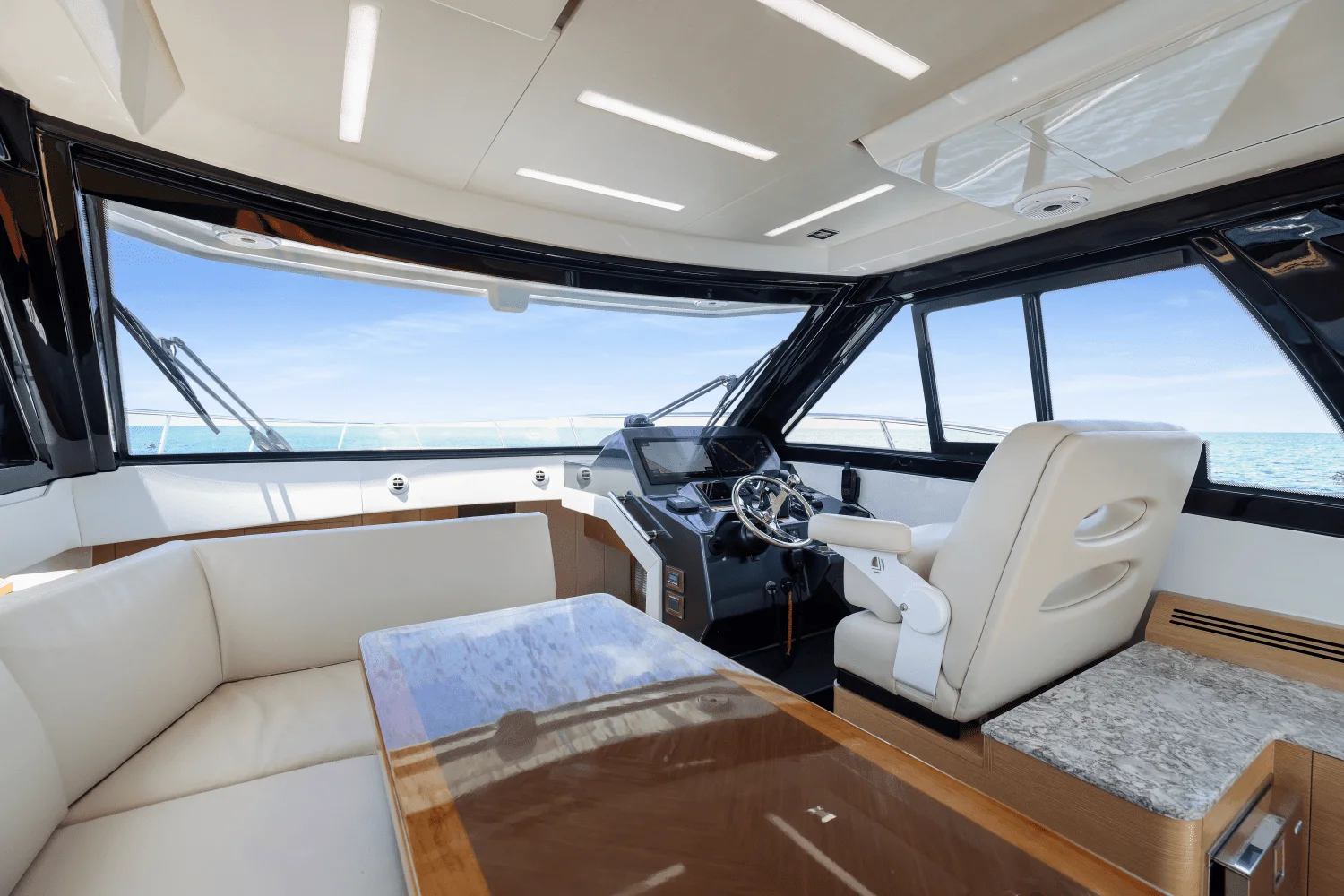

Pilot House:

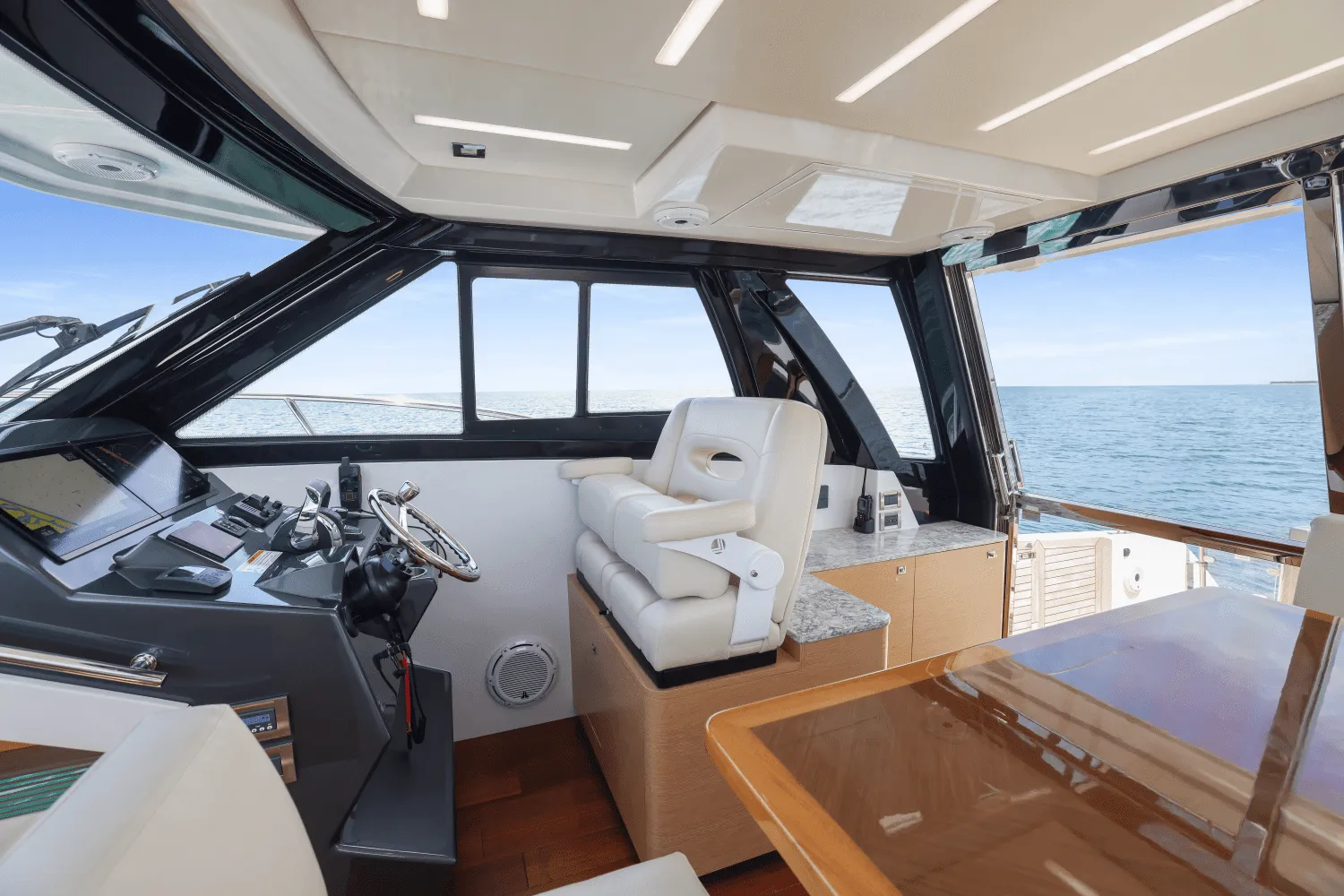

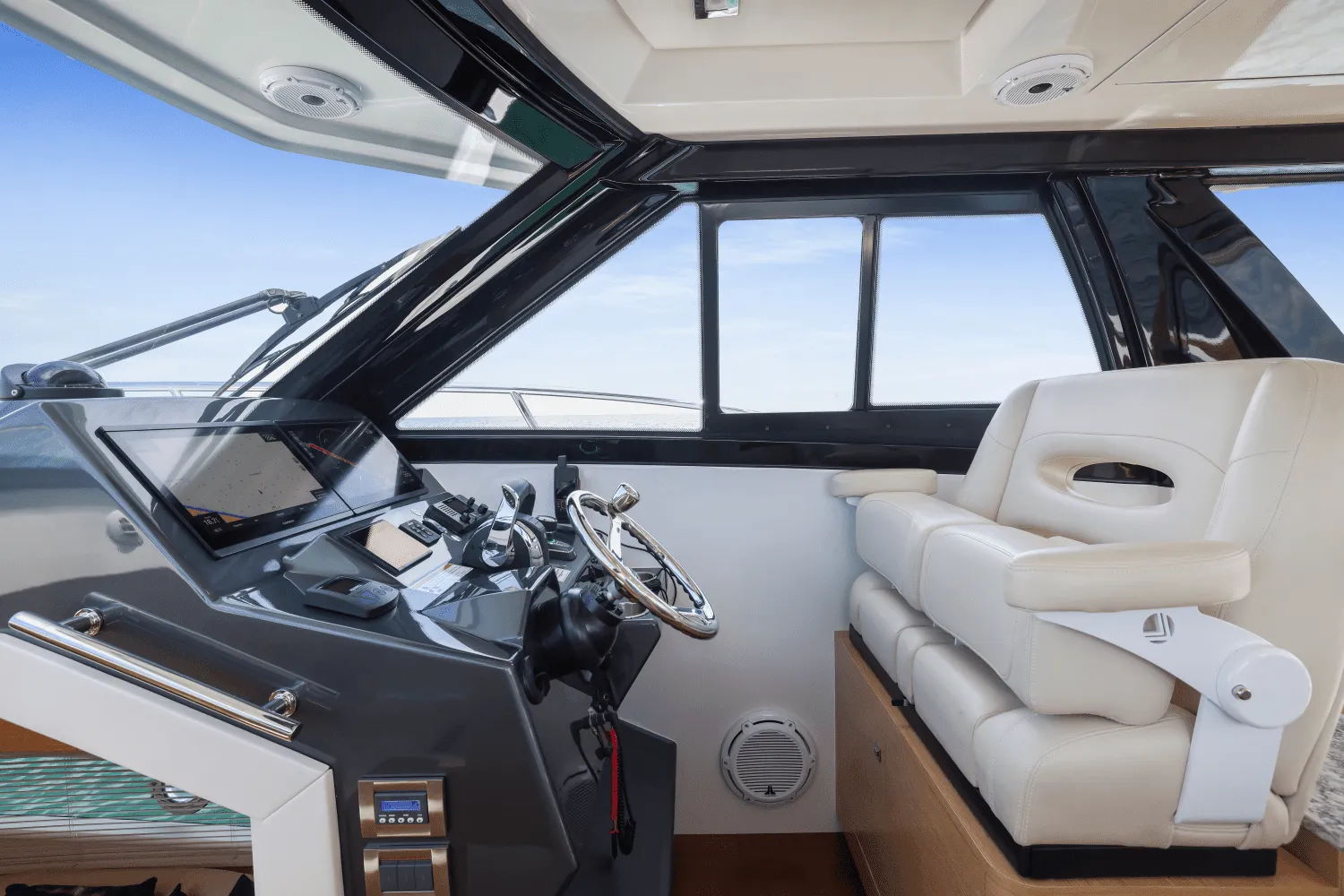

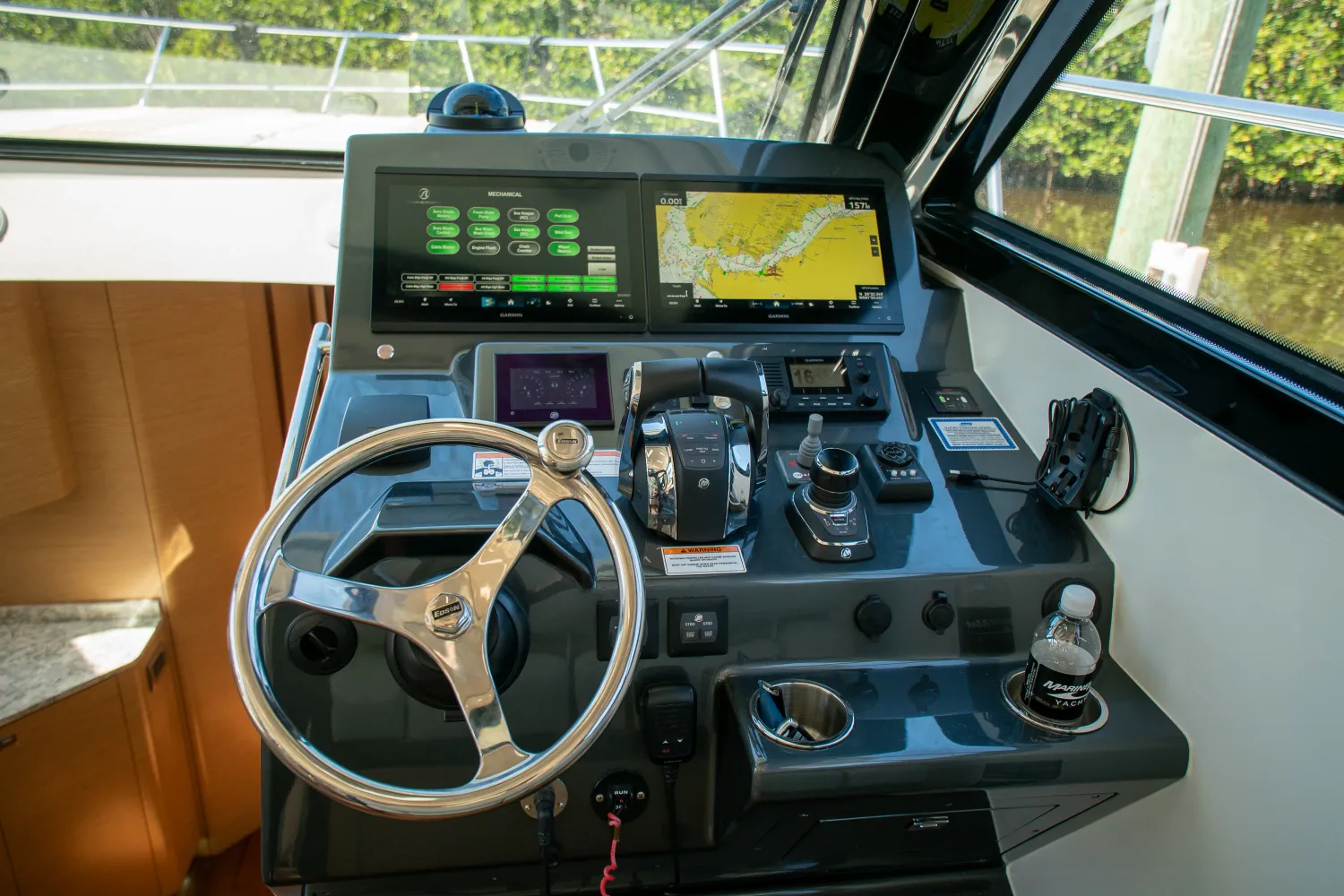

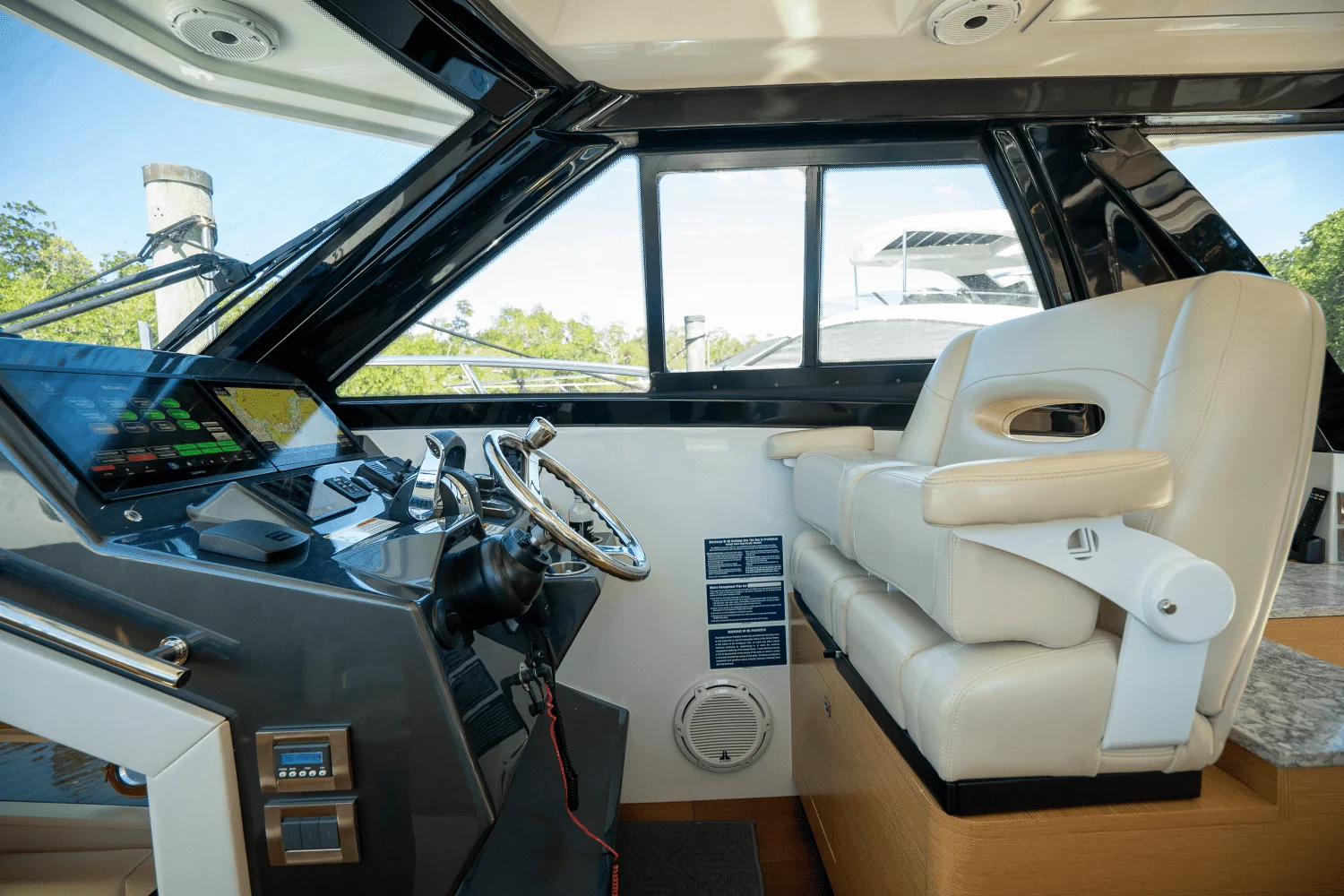

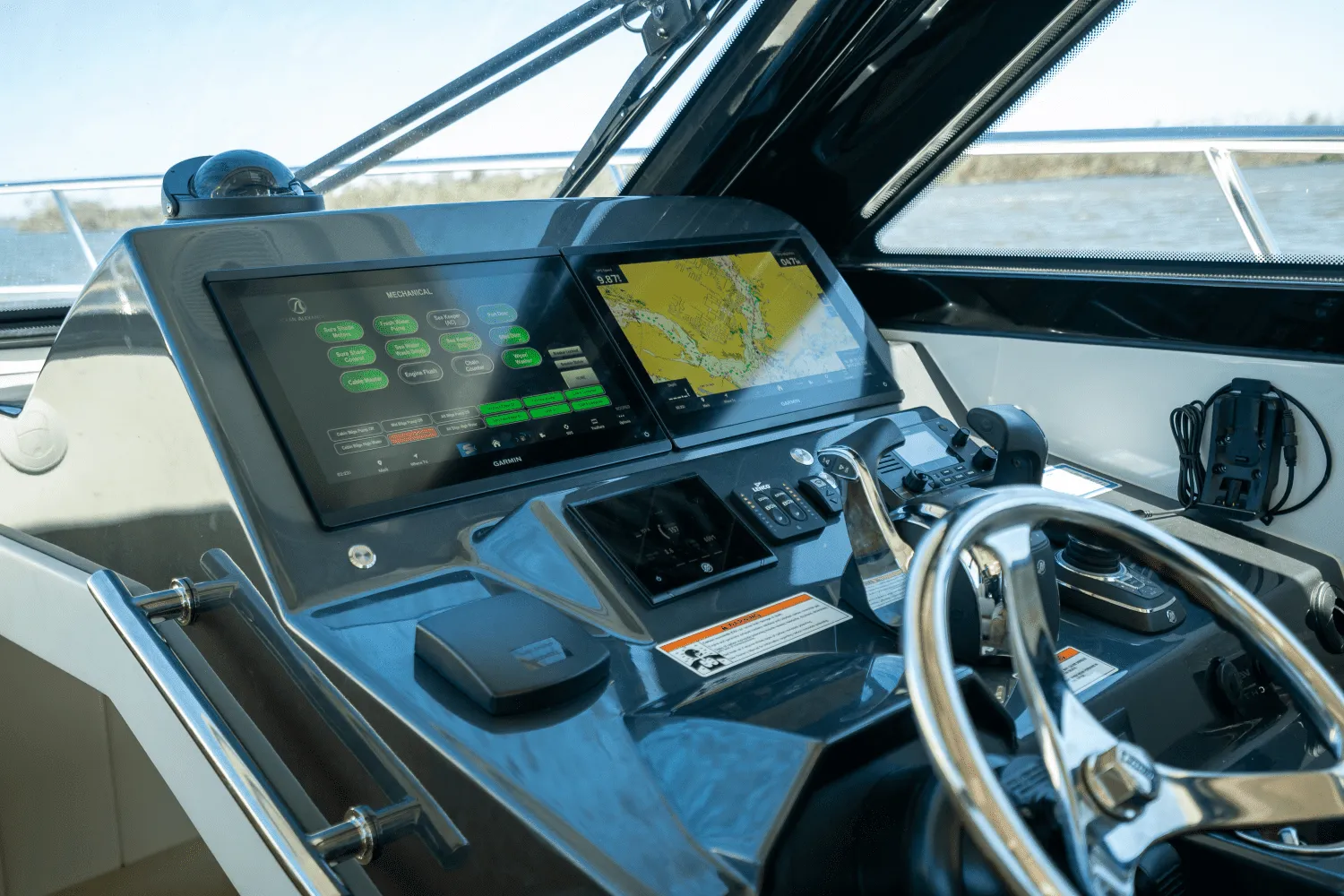

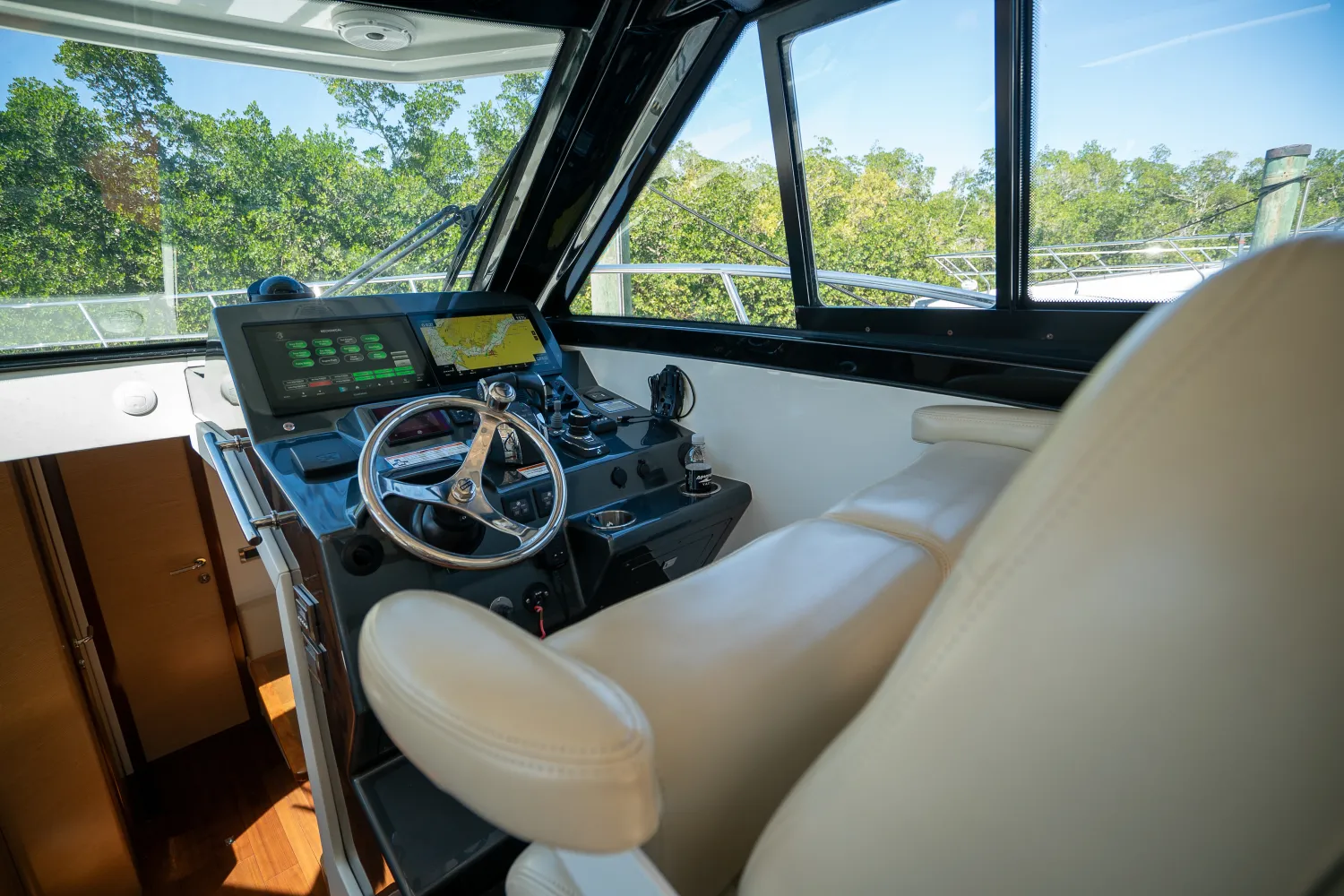

Helm:

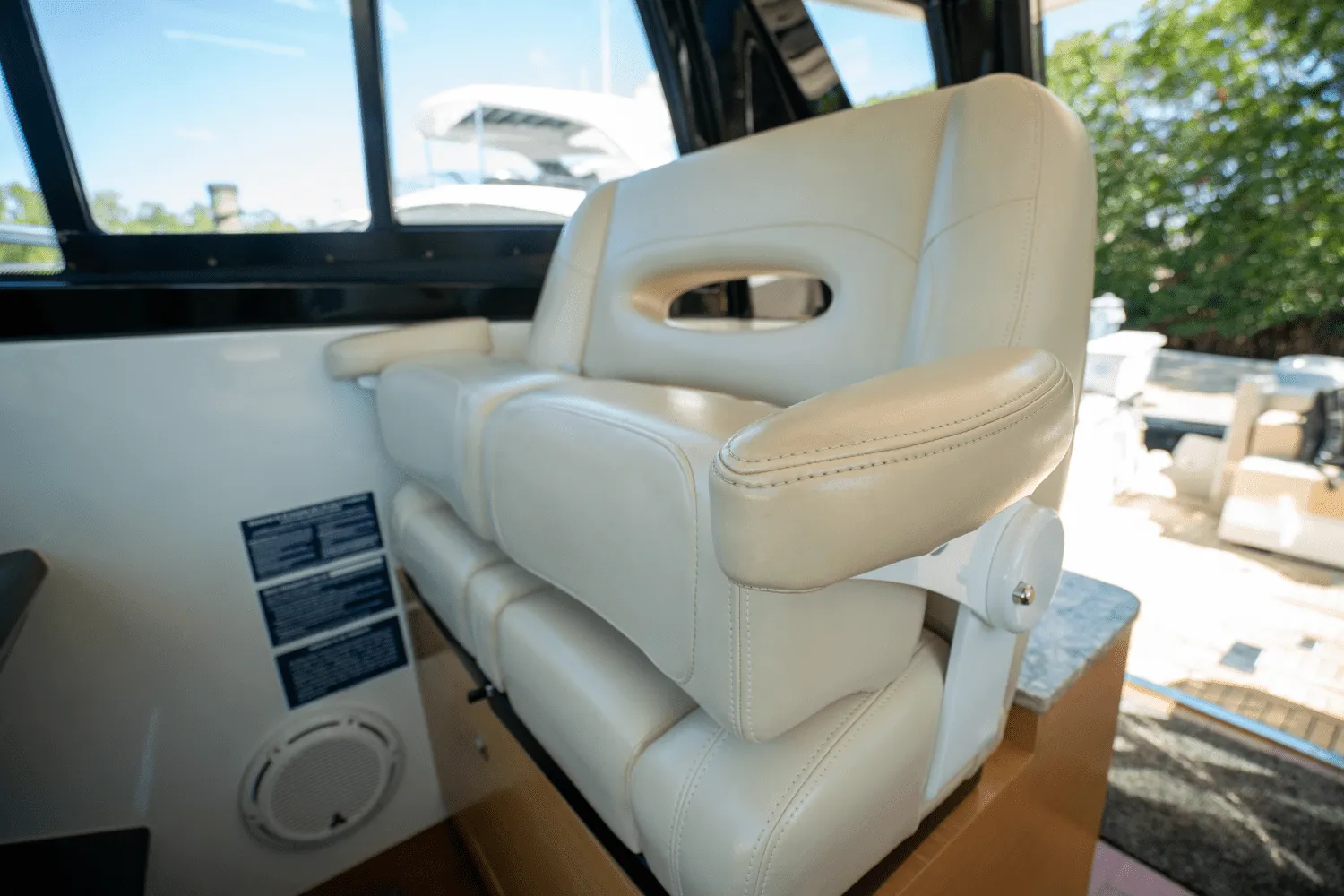

- Double Llebroc helm seat with flip up bolsters and gold-down armrests
- Fiberglass helm station (white) with built-in footrest
- Mercury Dual Handle Electronic Remote control (ERC) (dual binnacle with electronic shift & throttle control and interated engine trim control)
- Mercury push button engine ignition panels with remote key switches
- Mercury Vessel View 5" LCD color display
- Upgrade: Steering wheel, black leather wrapped Ultraflex
- Switches, SS flush mount
- Trim tab control panel with display
- Spotlight control
- Wiper/ Wash control
- Windlass control panel with counter
- Auto fire extinguisher display
- Electric trumpet horn control
- Upgrade: Ice Maker under helm seat
- A/C vents (2), adjustable
- Defroster, adjustable
- Cup holders, SS (2)

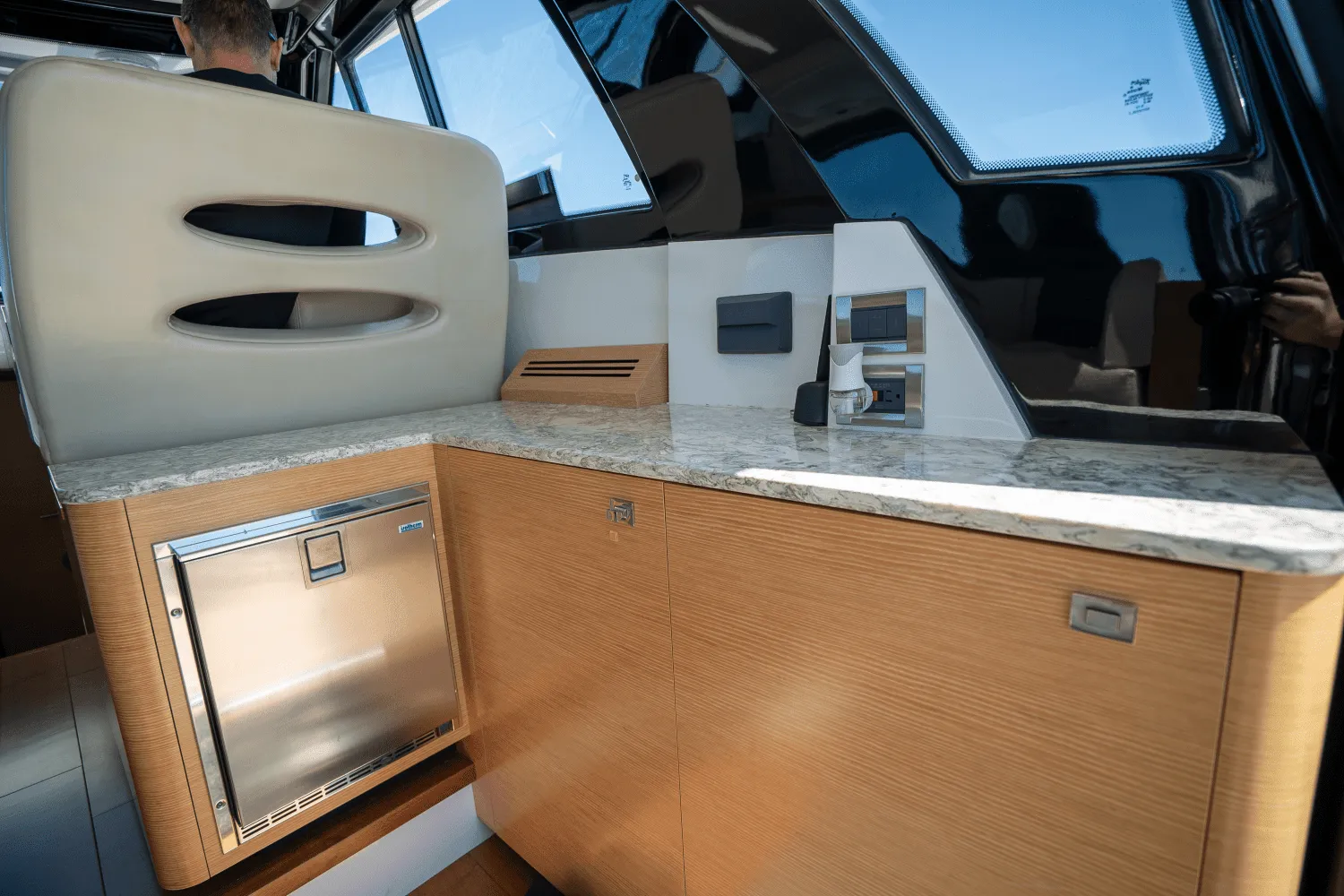

Custom Cabinetry:
- Drawer storage
- Hidden AC/DC distribution panel
- Storage locker
- Custom stone countertops

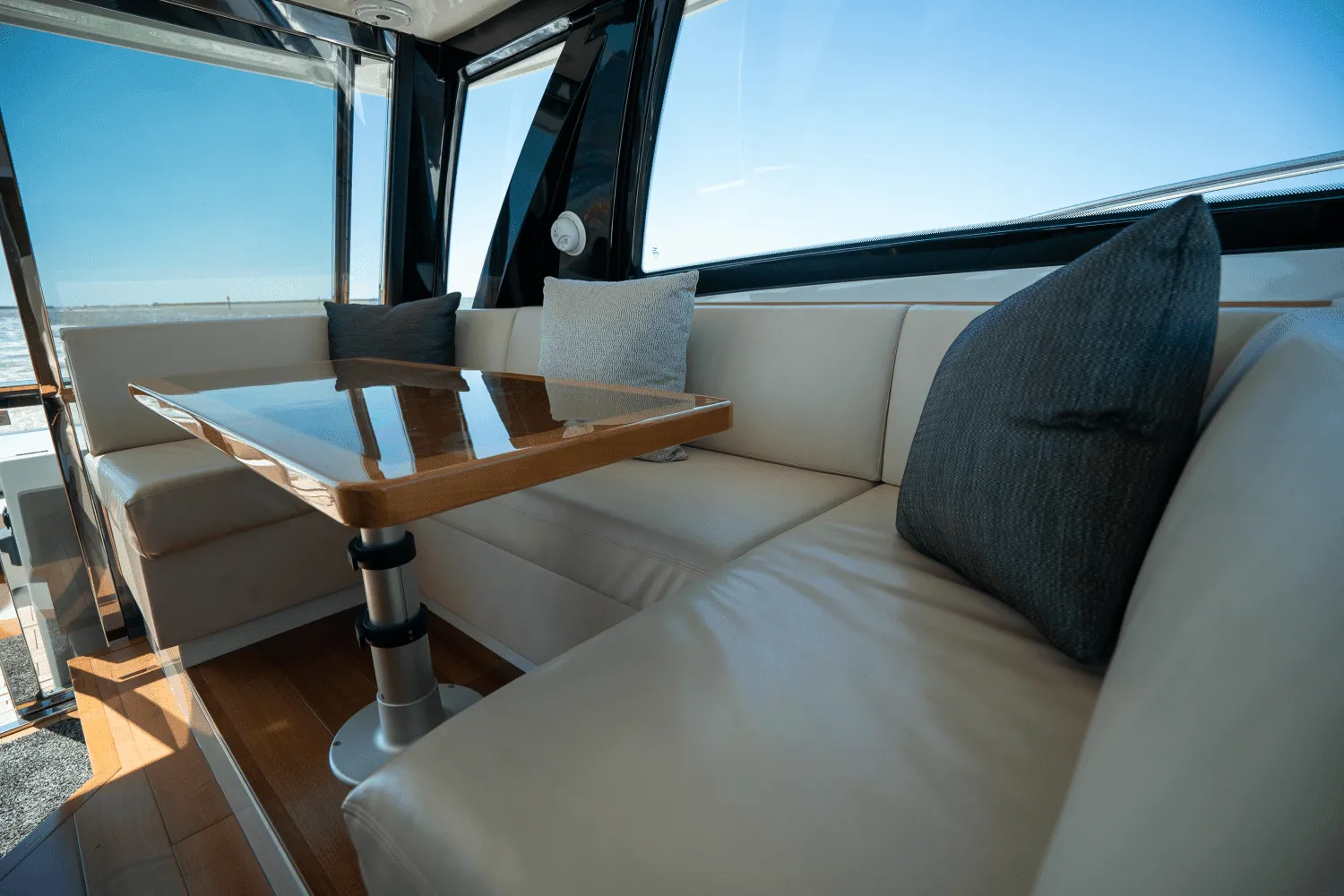

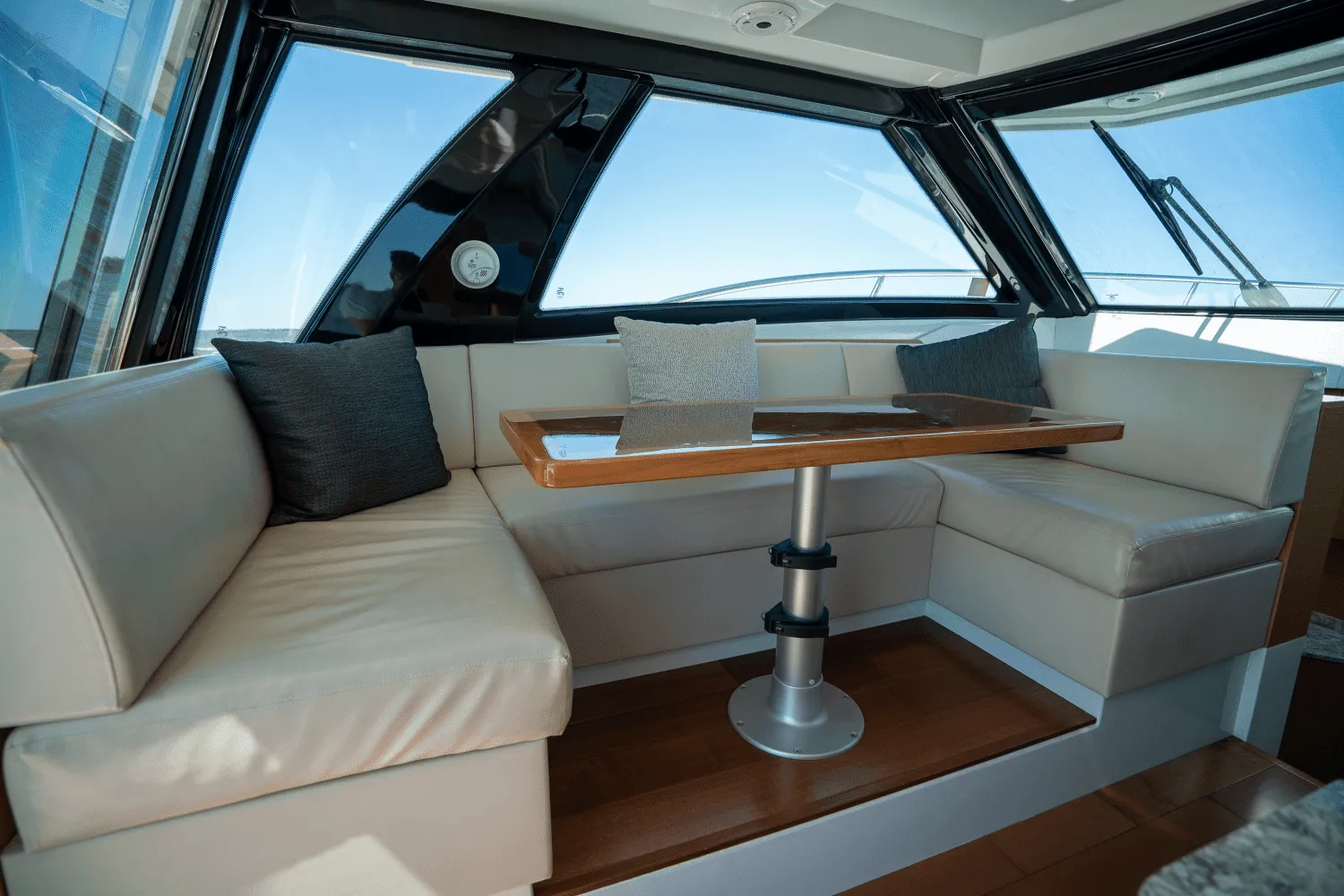

Settee with Table:
- Walnut high gloss table
- Custom cushion upholstery
- Upgrade: Custom walnut flooring in lieu of carpet
- Atrium view into lower accommodations
- 360 degree exterior visibility
- Upgrade: Privacy Covers
- Upgrade: Pilot house entertainment package

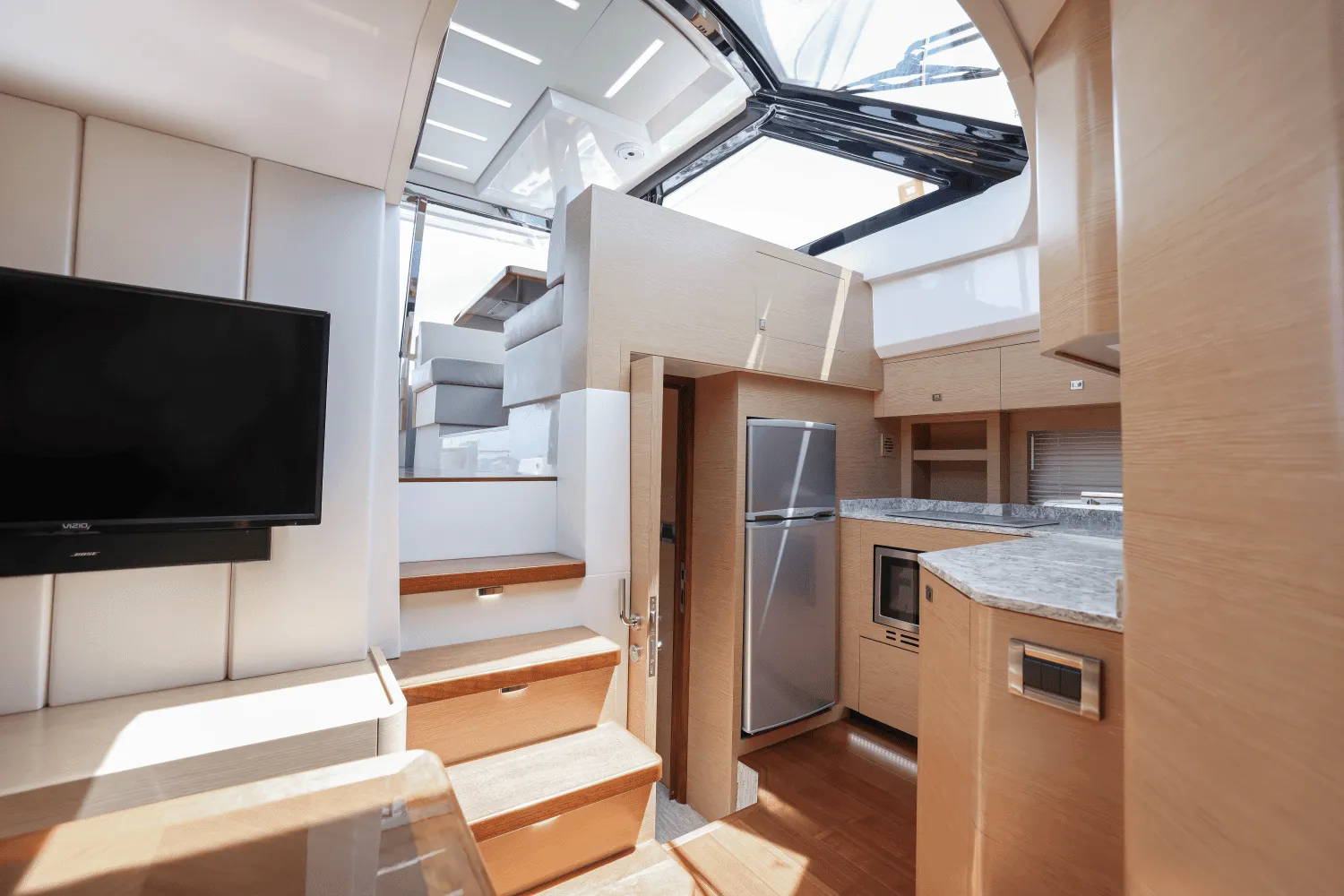

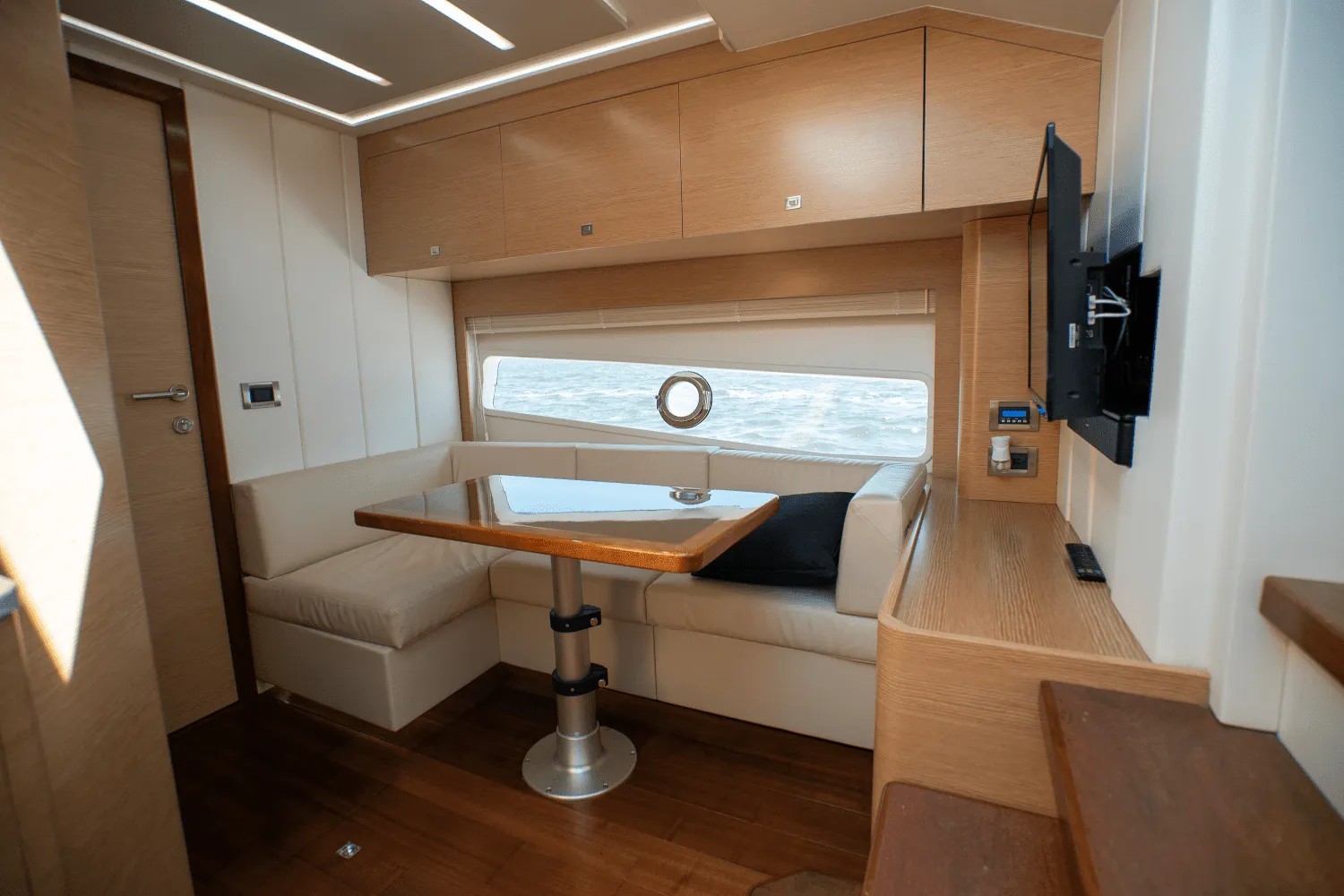

Cabin:

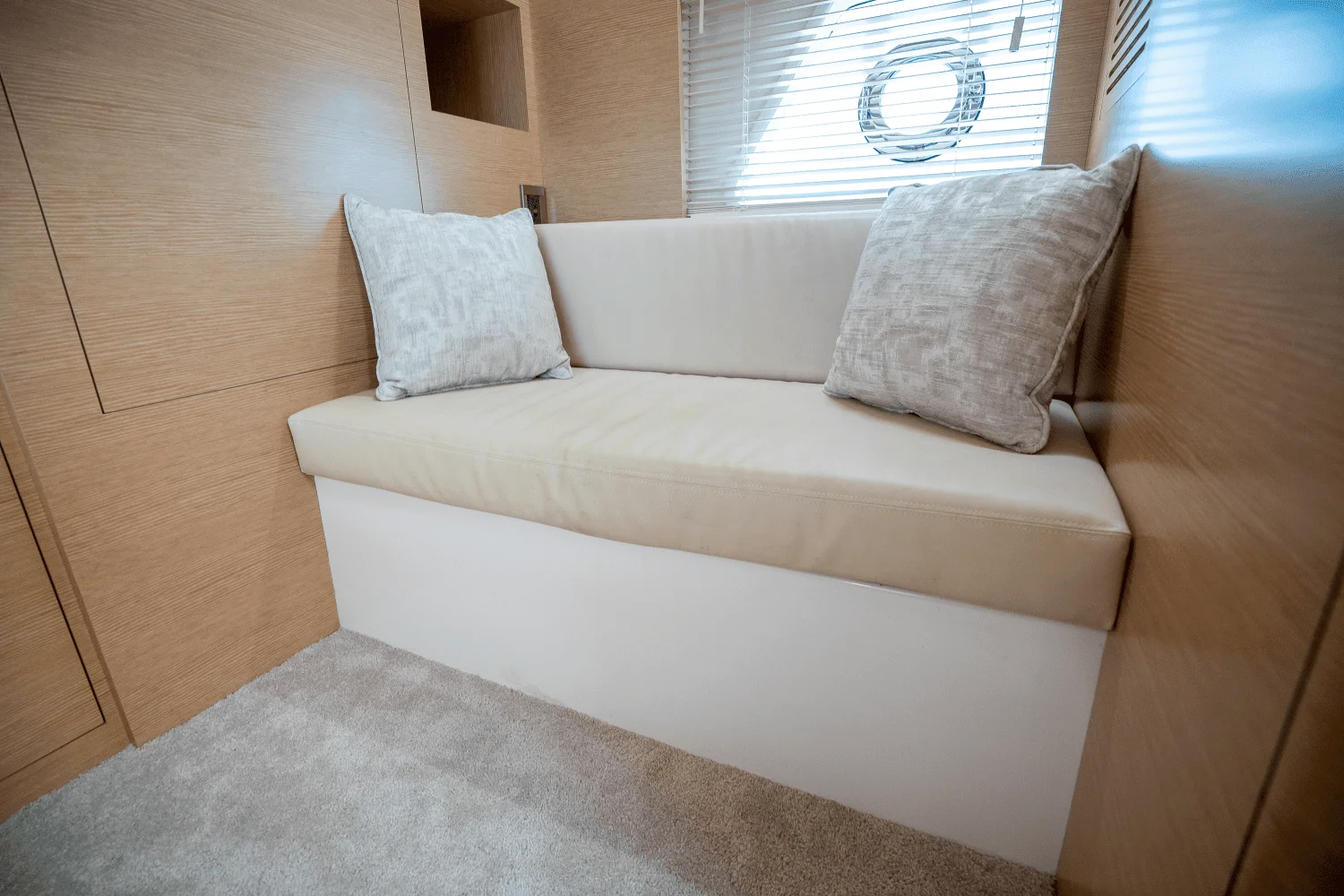

- L-shape seating with storage below, custom upholstery
- 76" (193 cm) standing headroom
- Dovetailed solid wood cabinetry with, positive-latch doors and drawers
- Port light, opening (starboard)
- Enlarged windows with custom window surrounds
- Storage cabinetry, base cabinet and overhead
- TV, 32" SMART with BOSE sound bar system and Apple TV
- Over head recesses LED and accent lighting
- Toe kick LED accent lighting

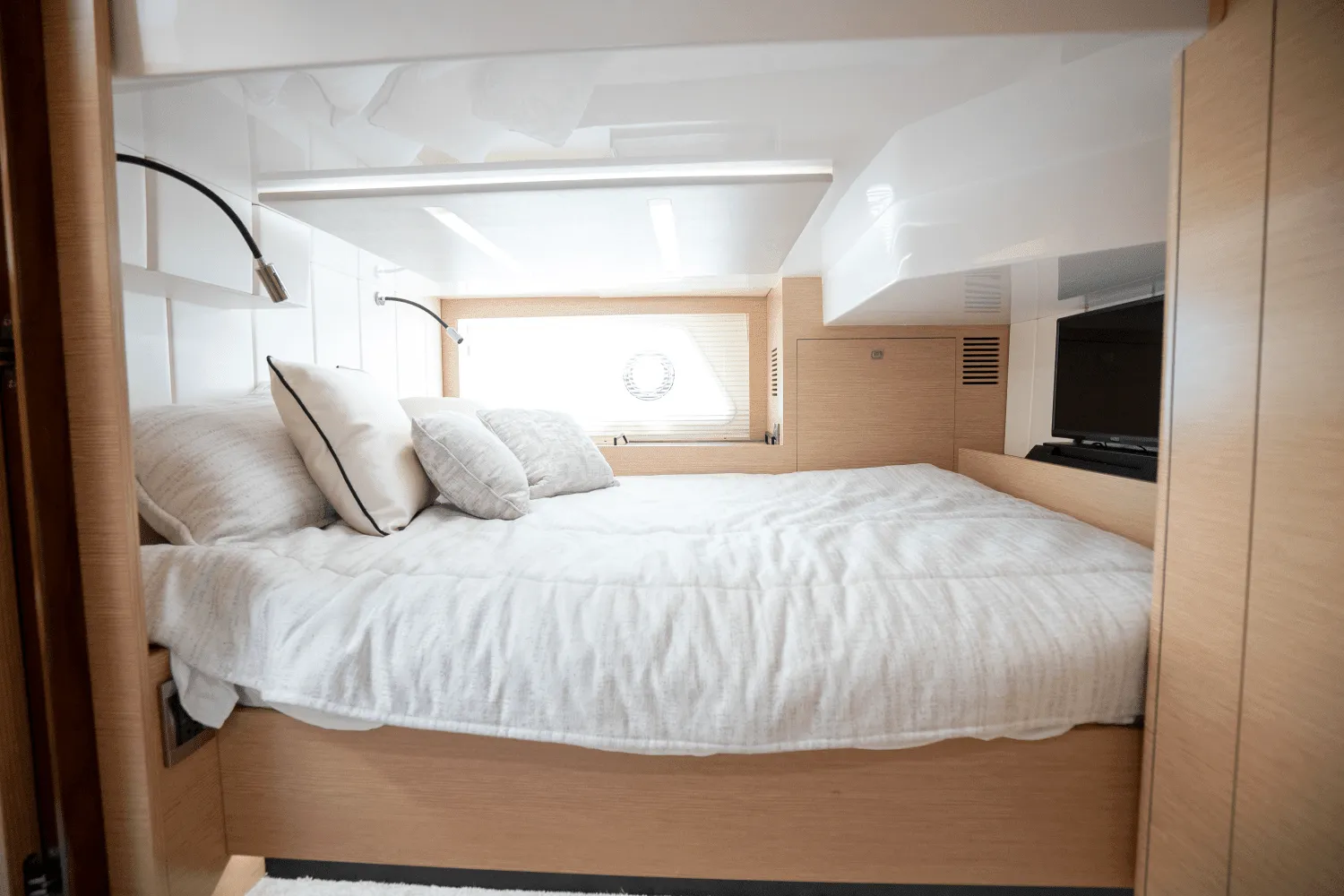

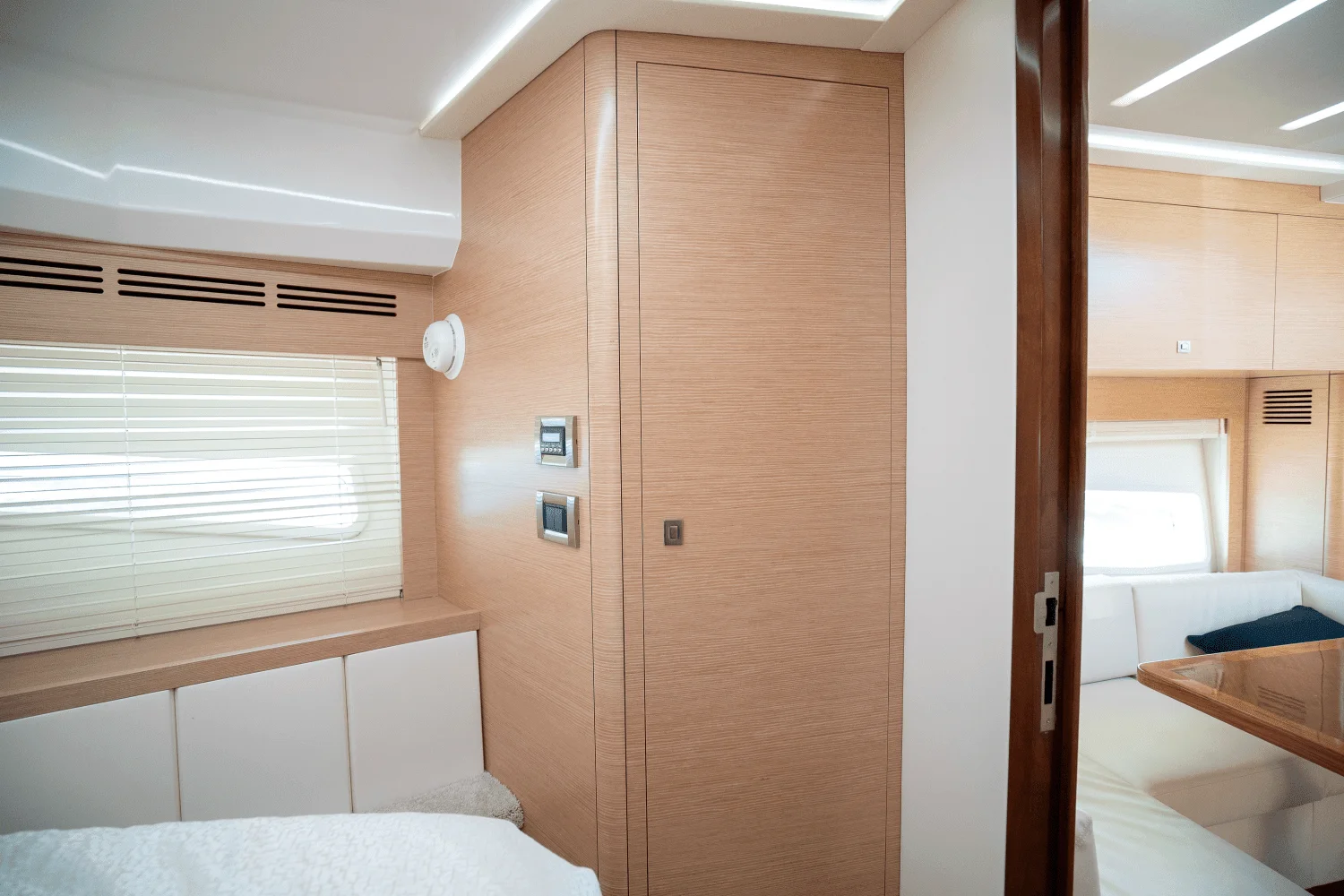

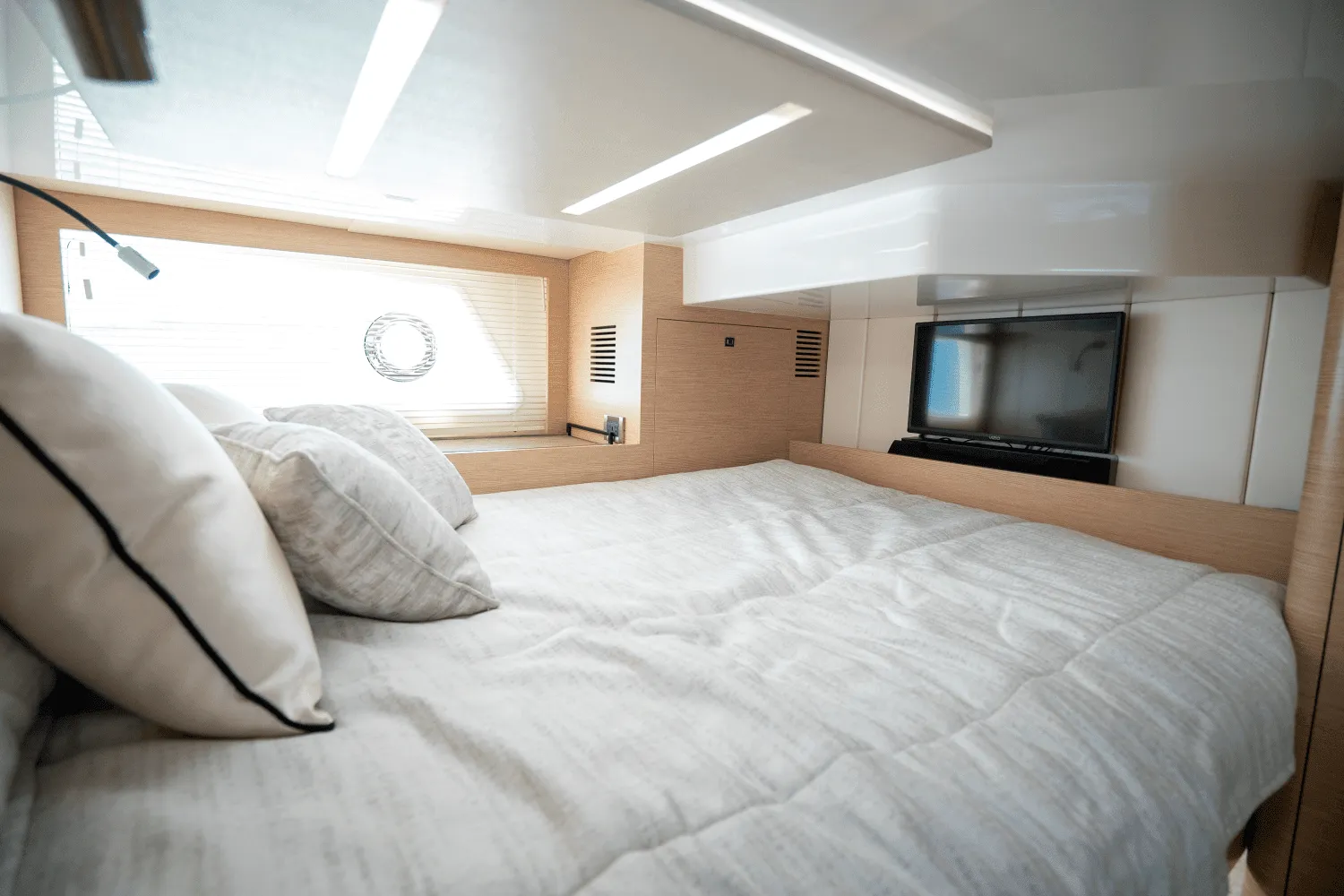

Forward stateroom:
- Berth, full size with drawer storage in base
- Berth side steps for easy access
- Dovetailed solid wood cabinetry with , positive- latch doors
- Hanging locker, PORT & STBD
- Windows port and stbd with opening port lights
- TV, 24", wall mounted with BOSE sound bar system and Apple TV
- Custom wall and accent panels through-out
- Overhead recessed LED lighting
- Accent lighting, LED through-out
- Escape/ ventilation hatch overhead, Lewmar
- Private head access door

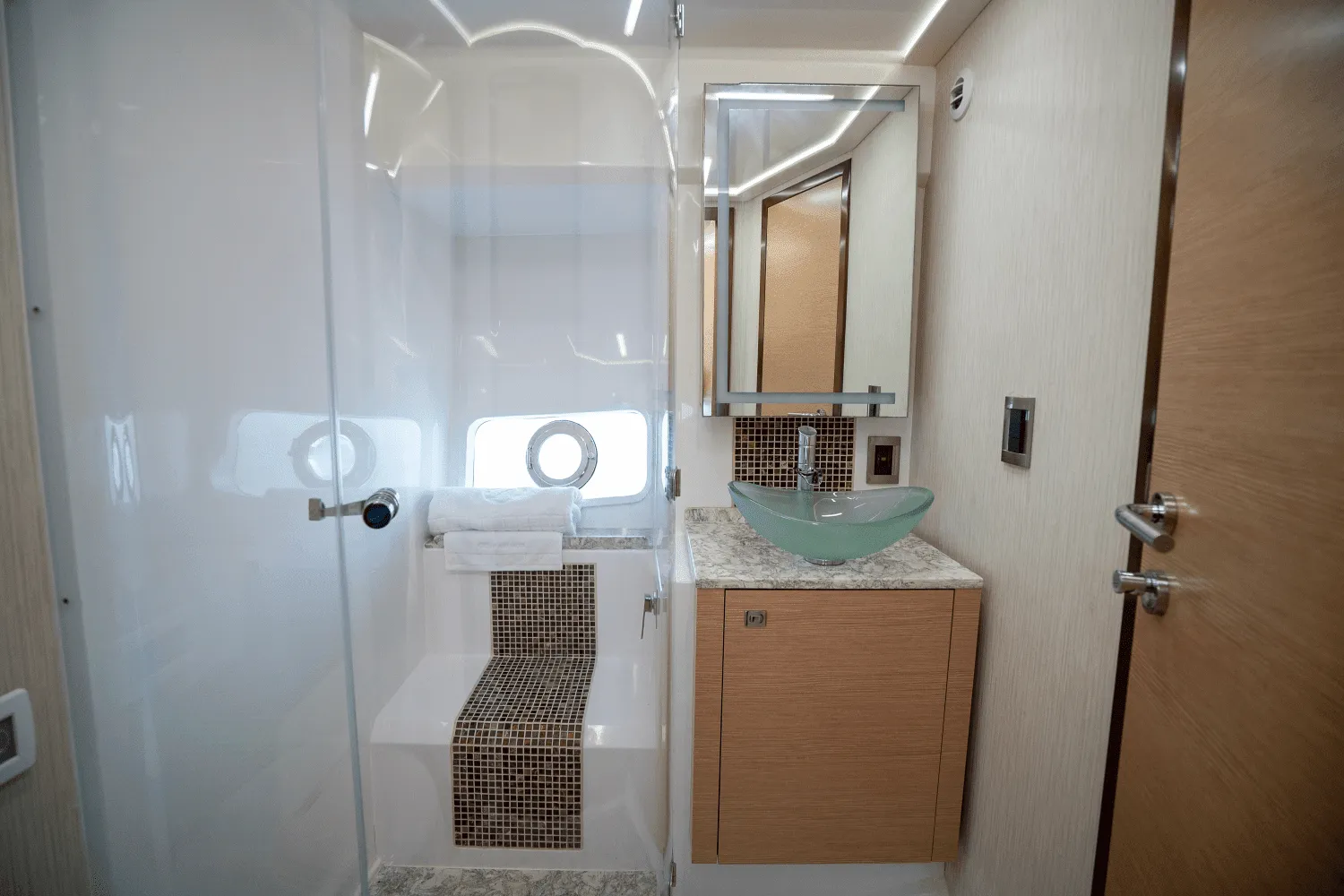

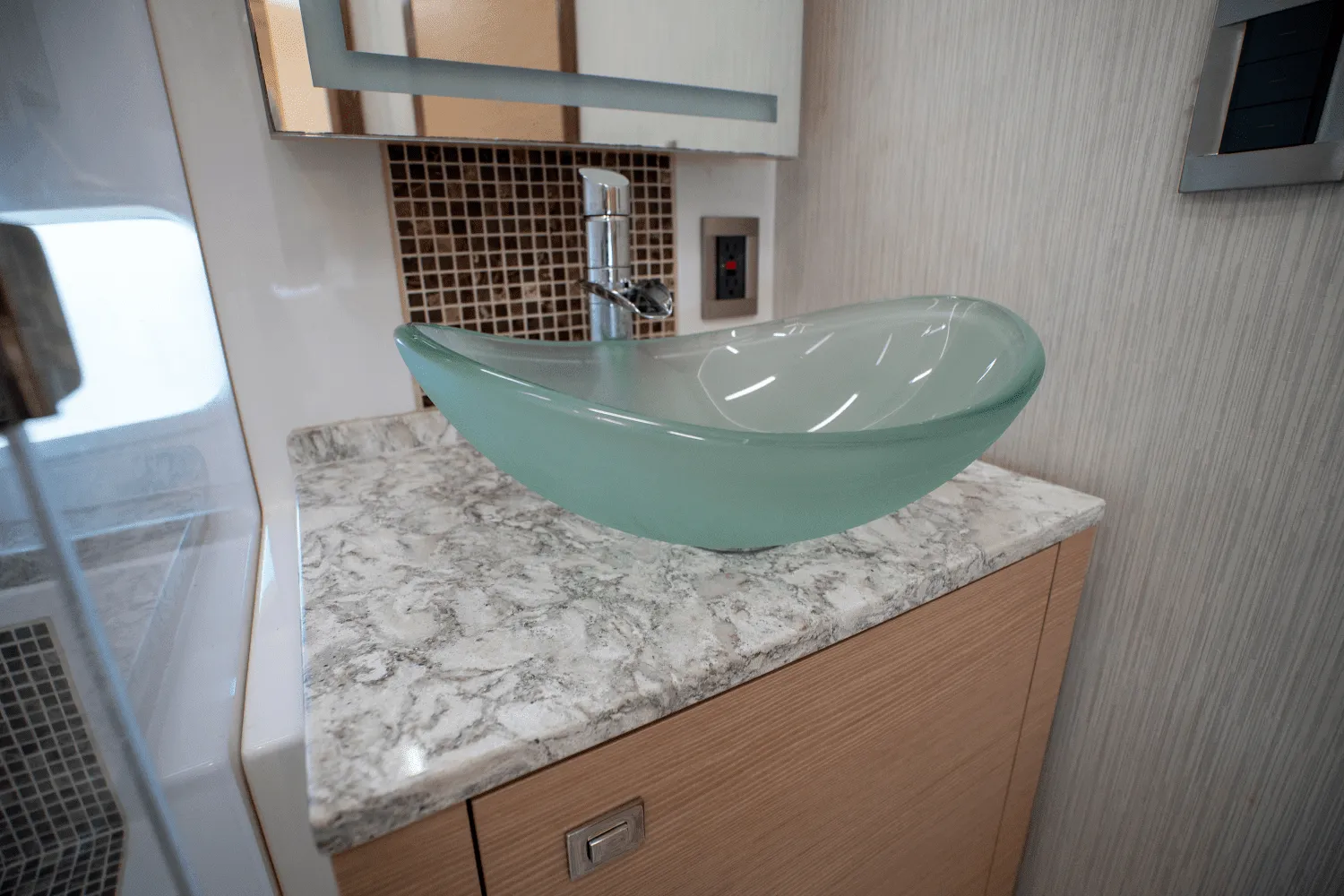

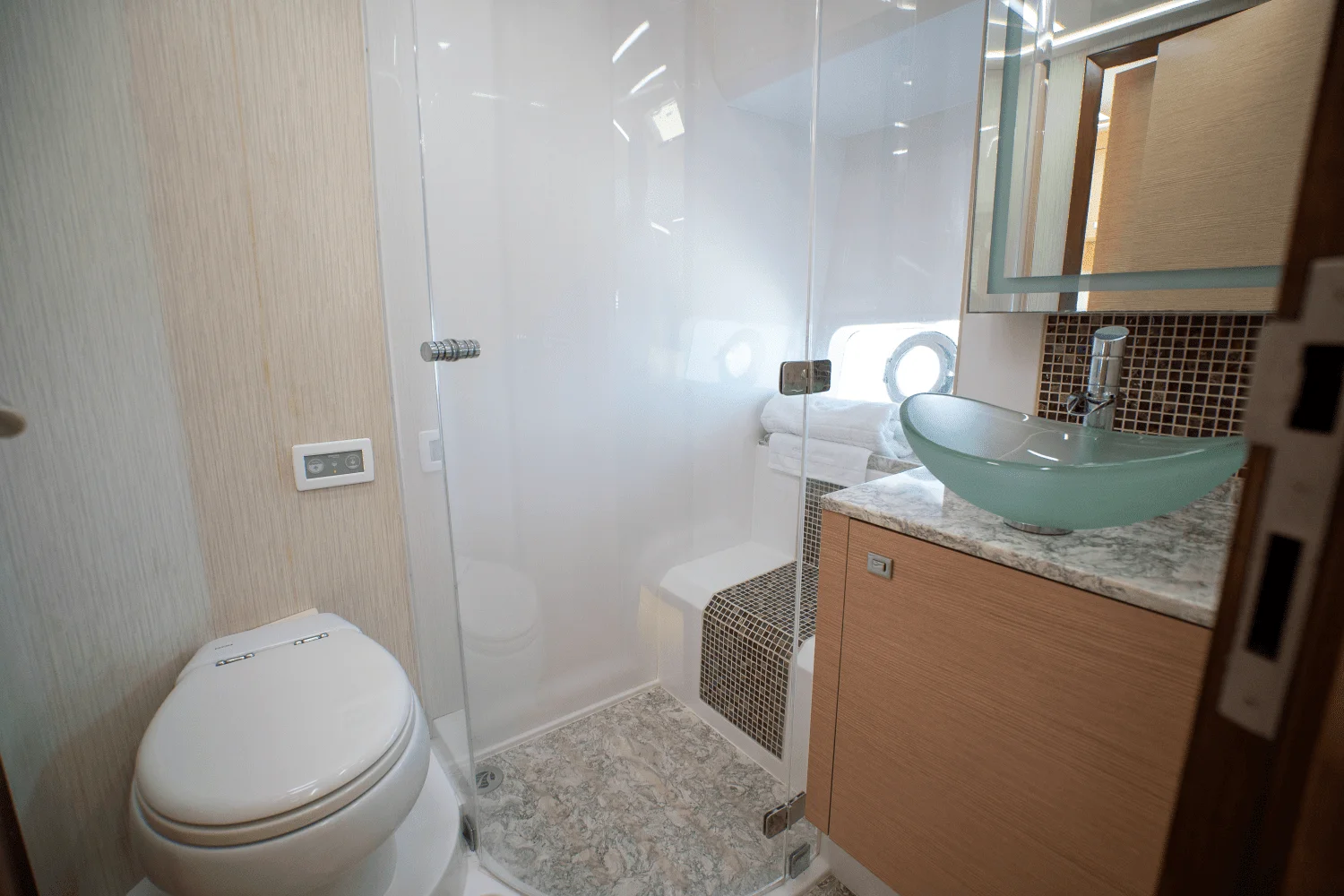

Head:
- Full fiberglass private head with 76" (193 cm) standing headroom

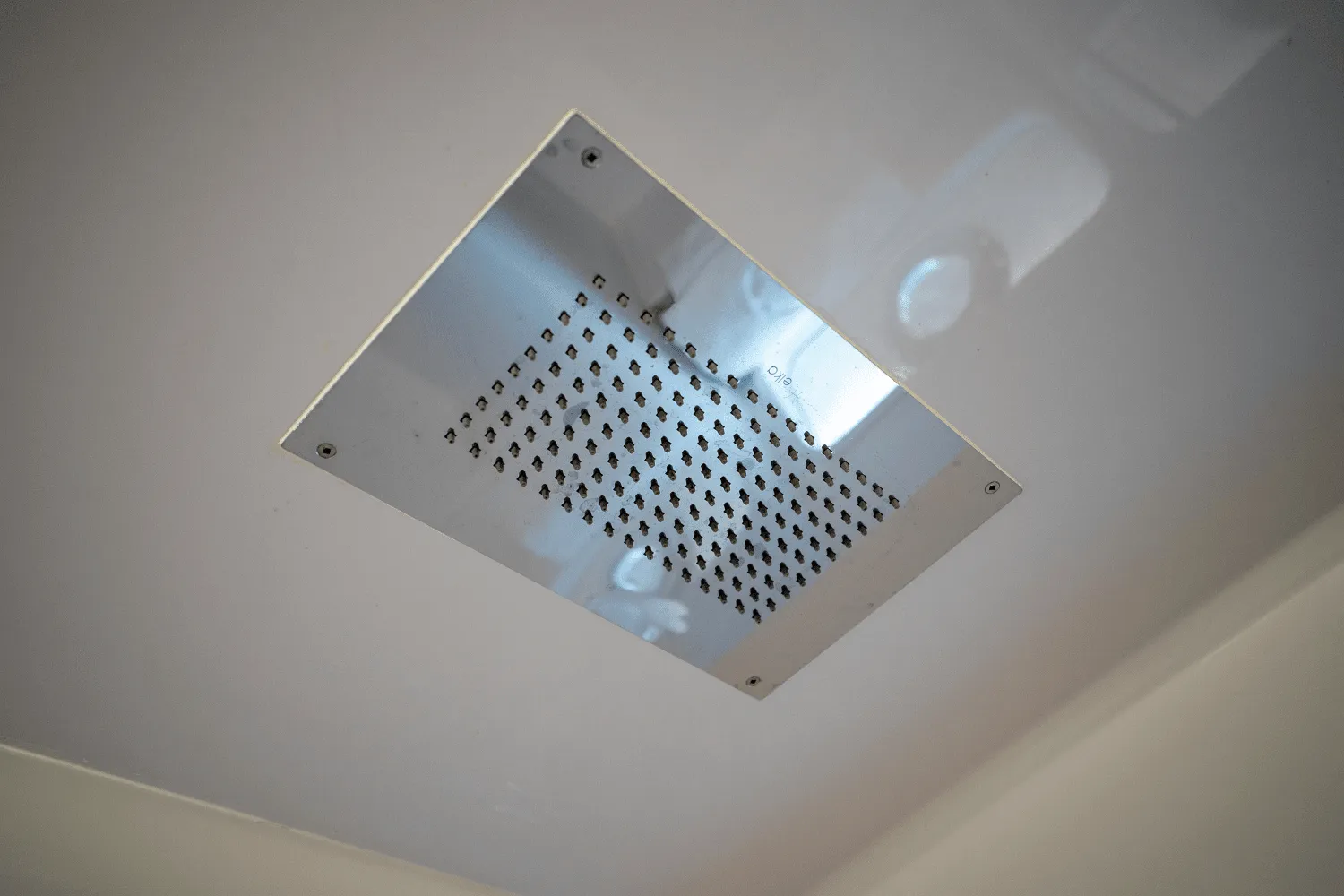

- Chrome-finish faucets for sink and rain head shower
- Separate stall shower with acrylic door, full size, curved

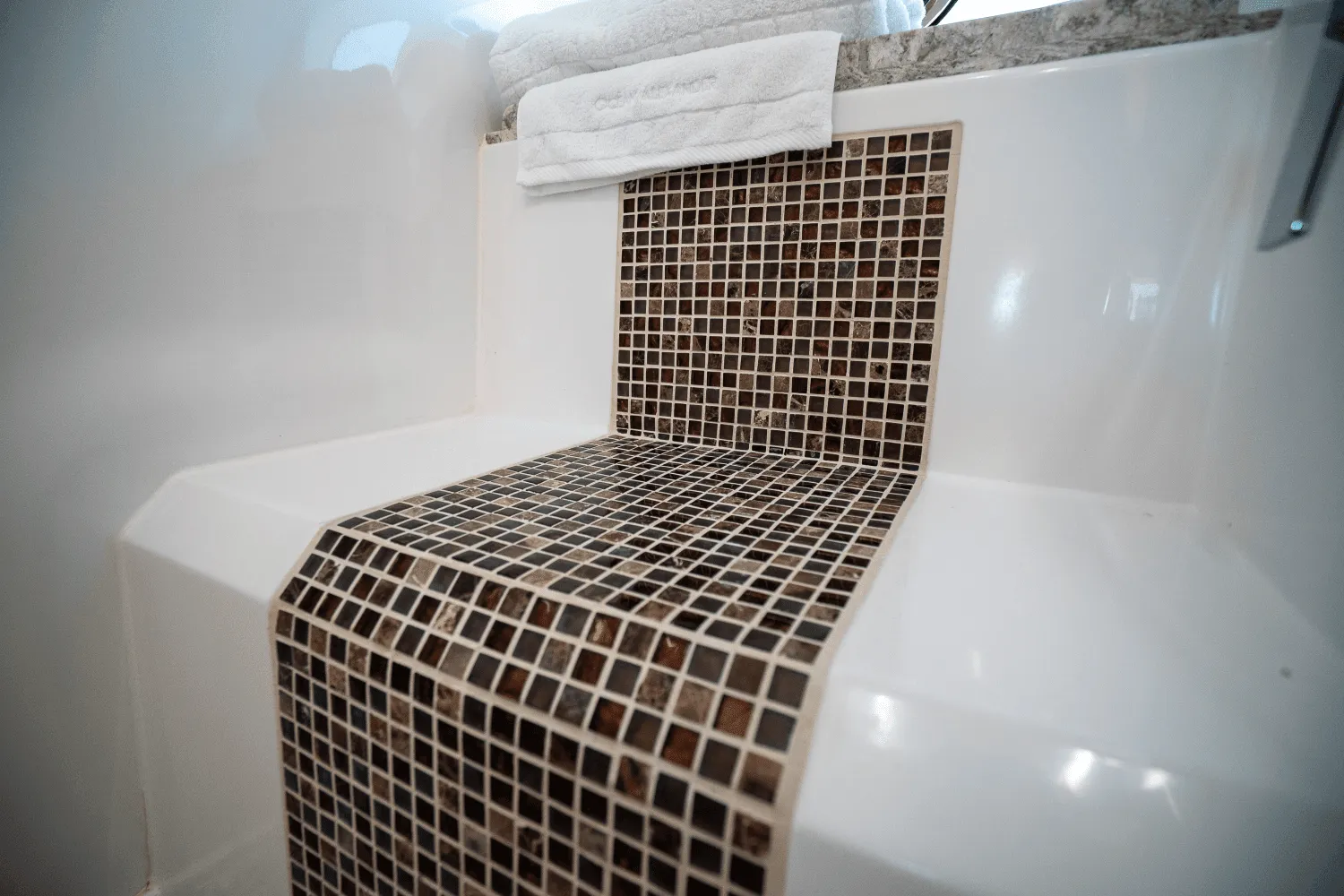

- Tile accents, backsplash and shower seat
- Upgrade: custom stone flooring in head in lieu of tile
- Vanity with Elite sink and lighted mirror
- Tecma silent plus toilet system
- Air extraction
- Air conditioning vent
- Storage cabinet with positive latch door, vanity
- Storage cupboards
- Window in shower with opening port light
- Door access through companion way and FWD stateroom

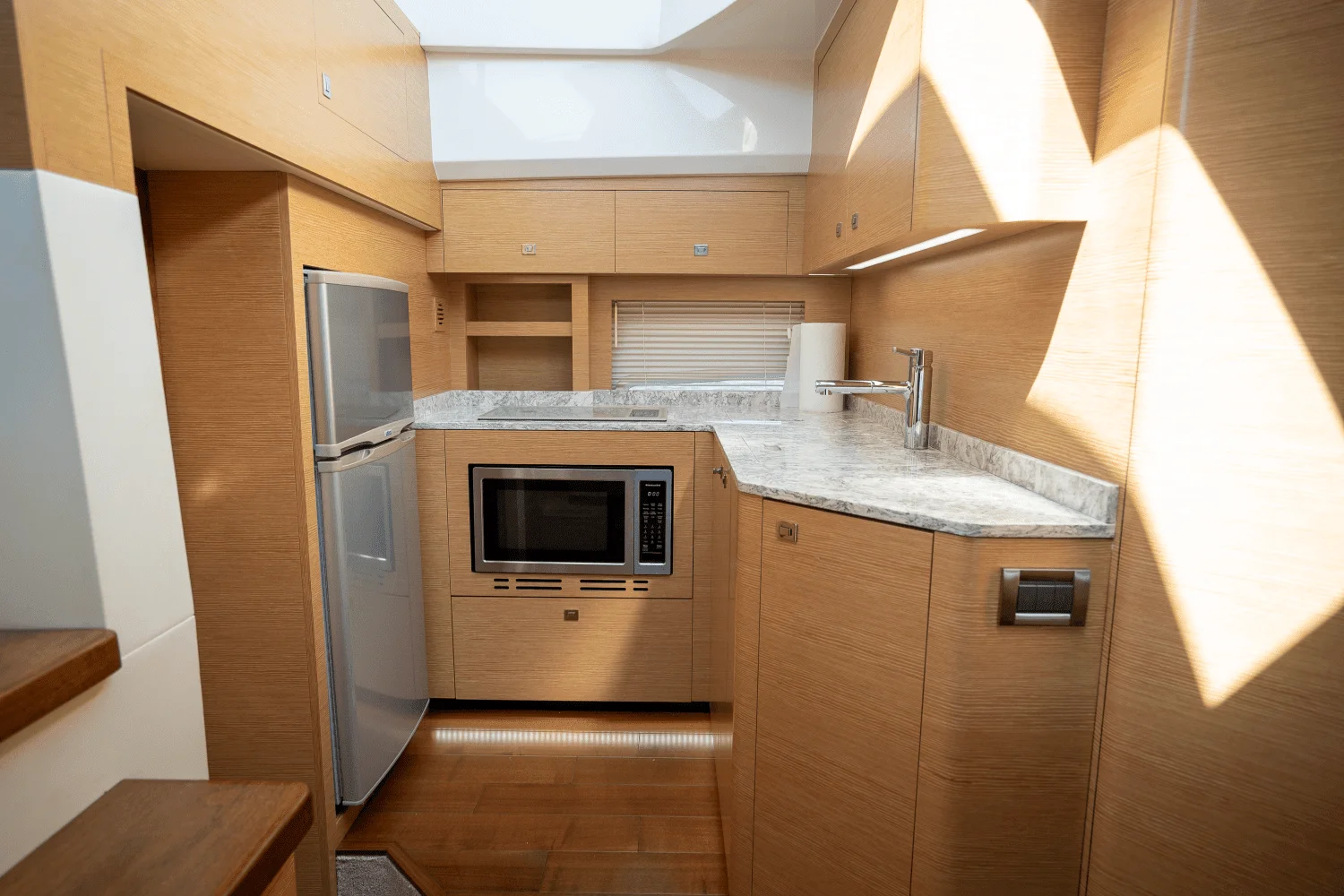

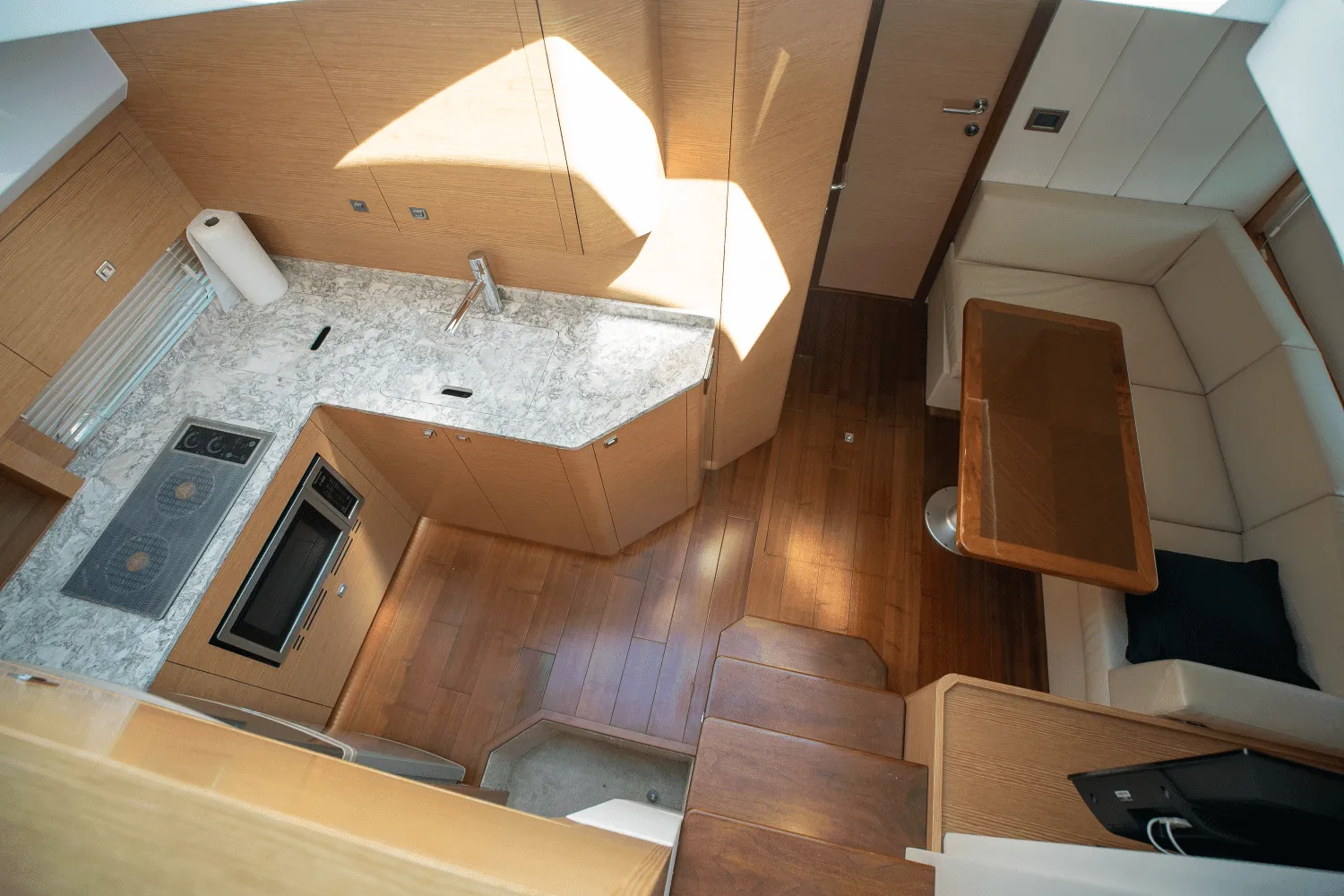

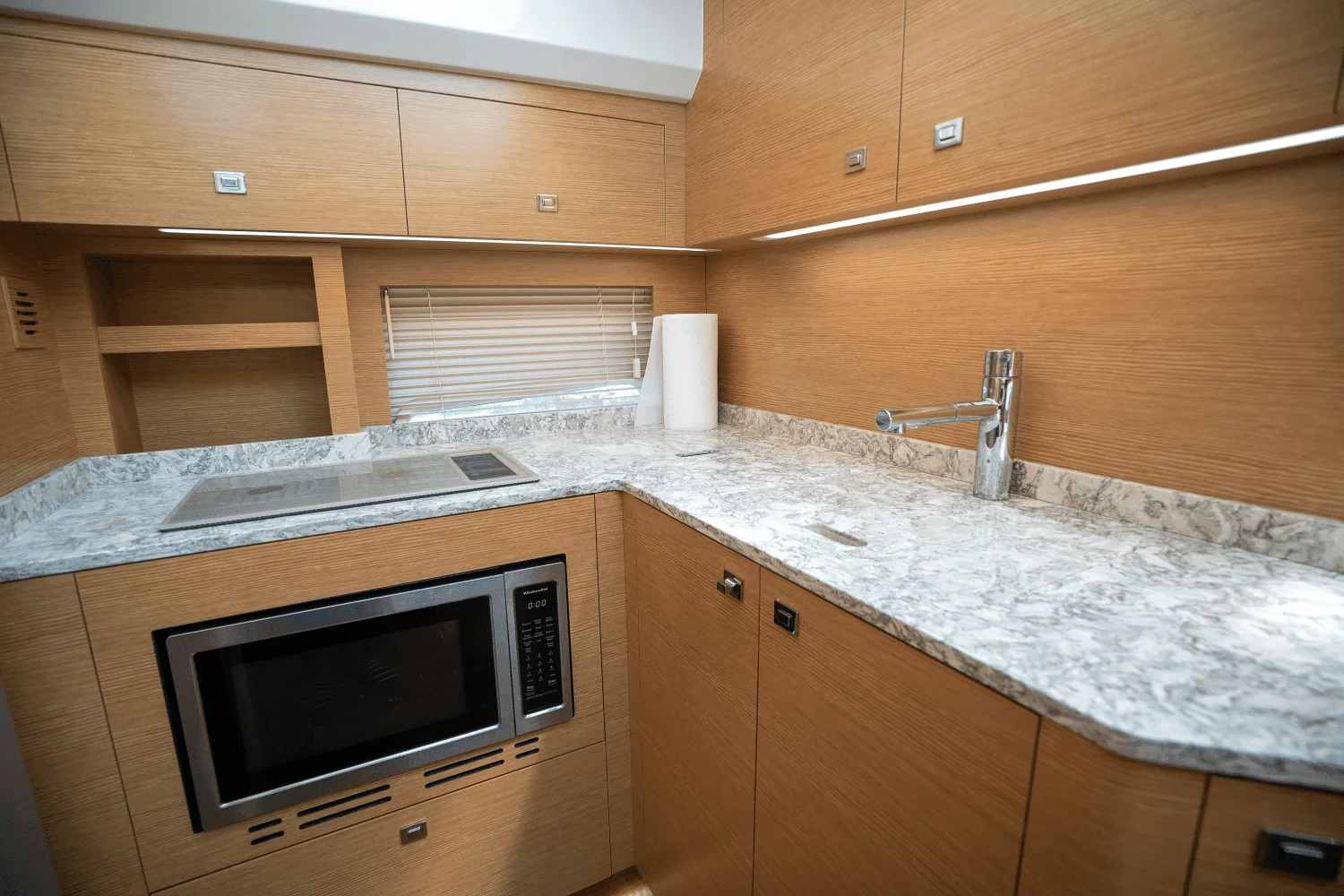

Galley:
- Custom dovetailed solid wood cabinetry with, positive- latch doors
- Custom stone countertops with sink covers to increase counter space
- Undercounted waste receptacle with countertop access
- Elkay SS sink, extra large
- Grohe filtering pull-out spray faucet
- KitchenAid convection microwave, flush mounted

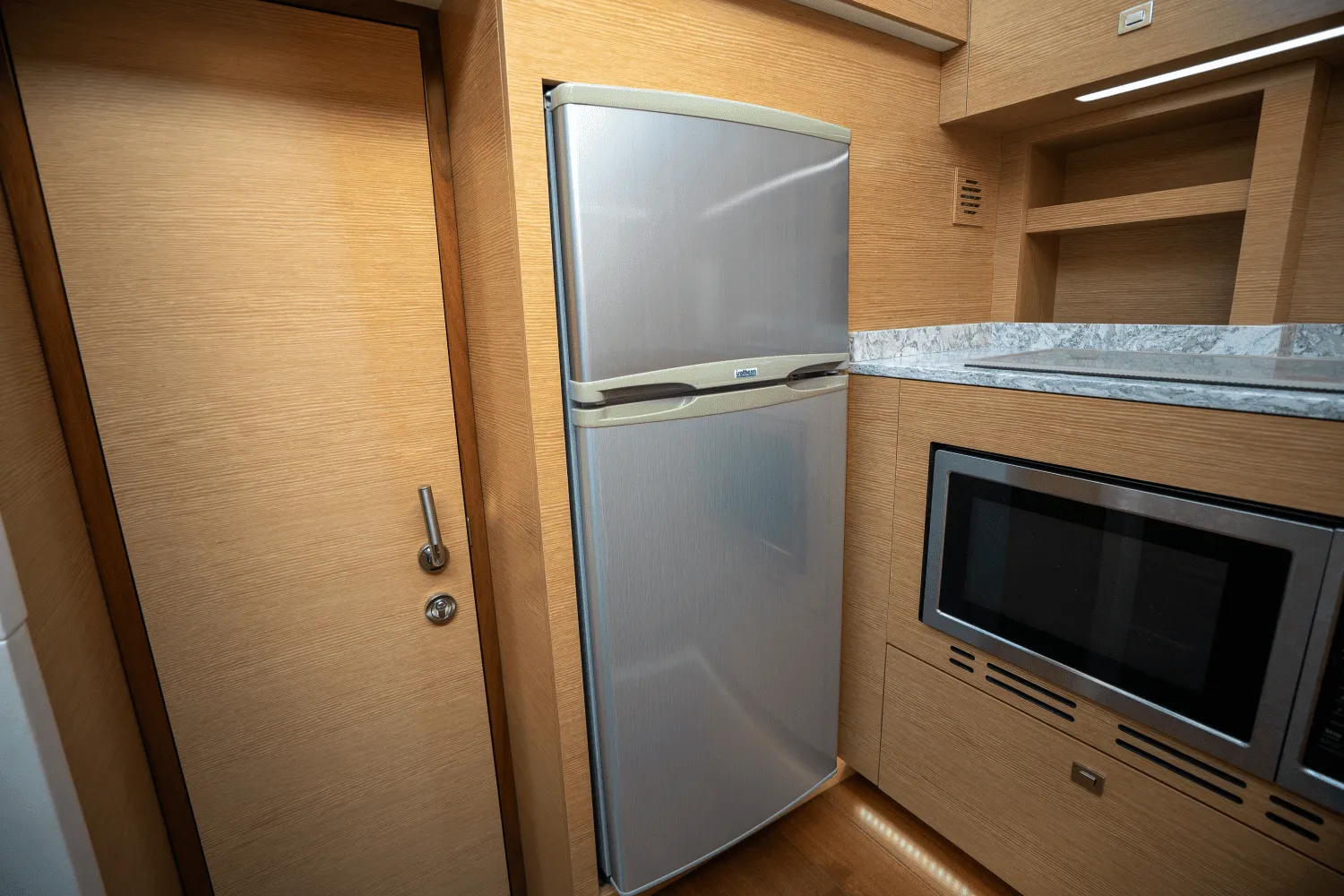

- Isotherm upright 5.8 cu/ft refrigerator/ freezer
- KENYON induction cooktop, SilKEN 2 burner
- Air extraction
- Overhead storage cabinets with dish storage
- Toe kick LED accent lighting
- Window with custom window surrounds
- Atrium view to pilot house area

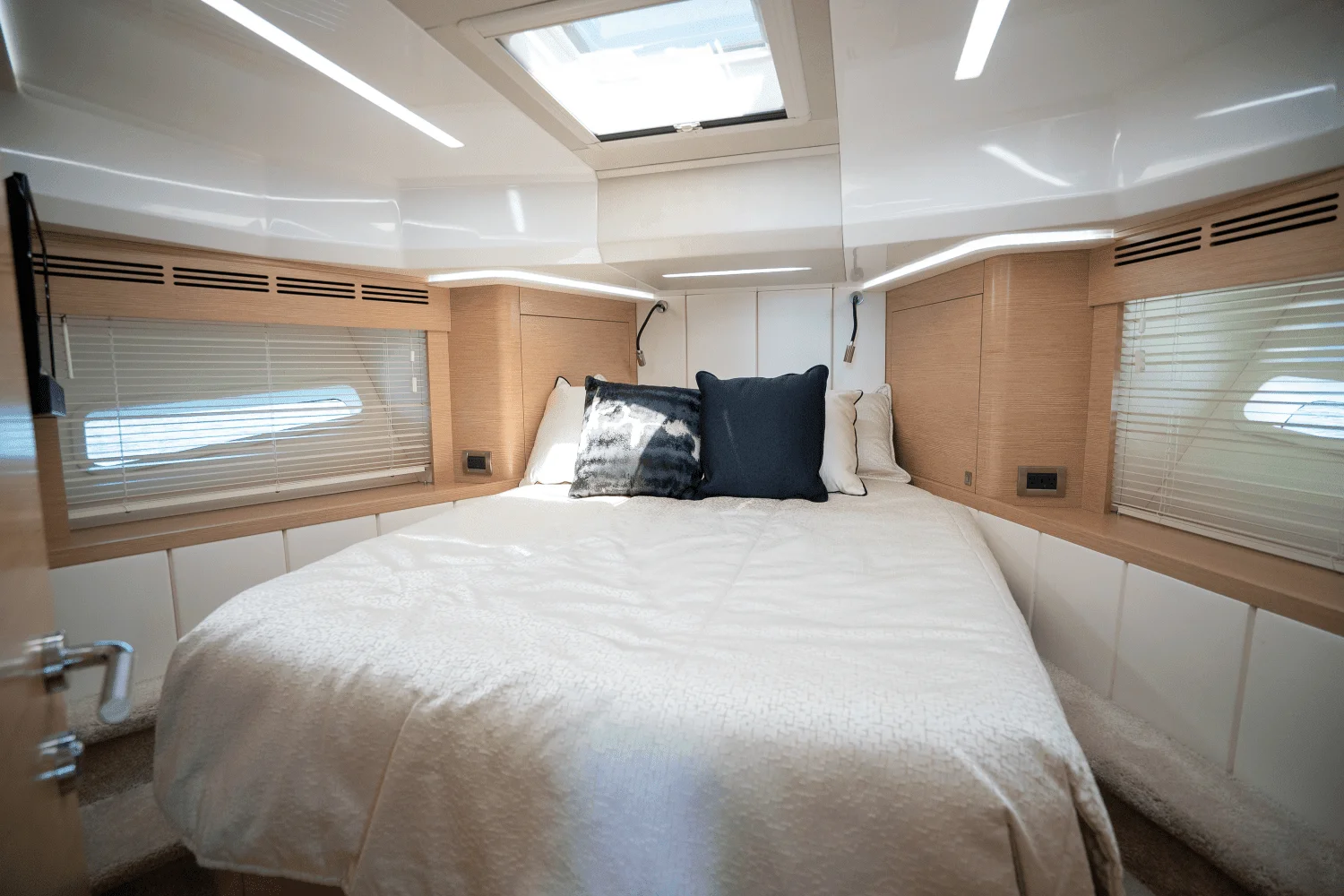

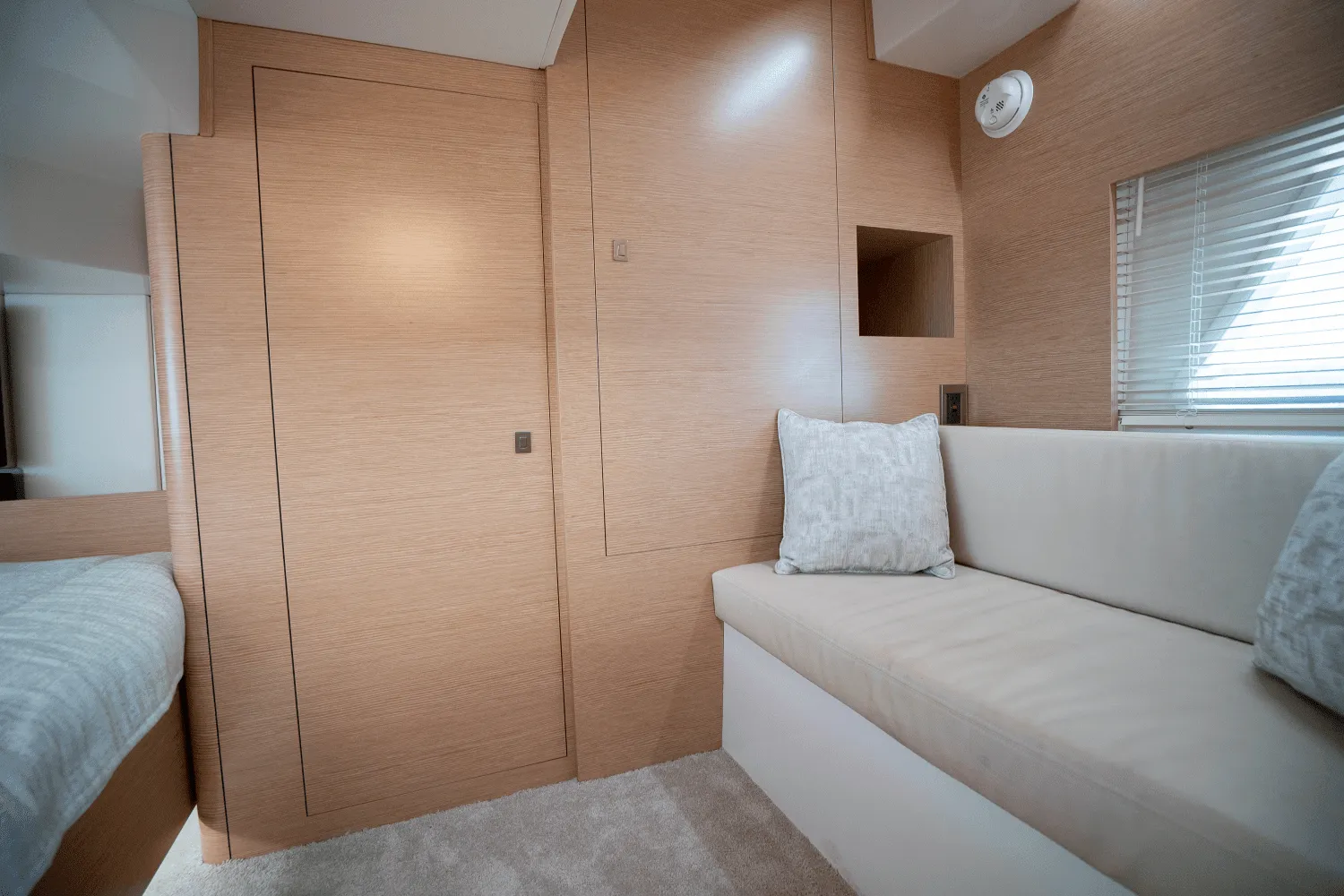

AFT Stateroom:
- Custom dovetailed solid wood cabinetry with, positive-latch doors
- Wood entry door
- Berth, full size with custom sheetes and bedspread
- Hanging lockers (2) side by side
- Windows PORT & STBD with opening port lights
- Custom wall and accent panels through-out
- Overhead recessed LED lighting
- Accent lighting, LED through-out
- Sofa 44" with custom upholstery
- Nightstand with charging ports
- Upgrade: Aft stateroom entertainment package
Interior Decor:
- Custom designed interior with designer materials. Ergonomically designed and laid out to enhance owner experience
- Stained wood paneling and cabinetry
- European door handles
- SS hardware
- Satin varnish for interiors
- Fabric covered walls and ceiling panels
- Cambria Berwyn countertops
- Carpet flooring in staterooms
- Tile flooring in head
- Entry steps with solid wood treads
|
