Options
- Advance Package
- Cockpit docking station incl engines control joystick and thruster
- Seakeeper Stabilizer 16
- Stern thruster 11.2kW
- ACR Artex electric search light
- Additional waterproof socket
- Bimini top on bow automatic
- Cockpit chair (Mod.Oskar)
- Co-pilot seat on fly
- Dimmer lights on fly
- Flagpole
- Flybridge bow table w/Corian frame & Synthetic marble insert
- With hi-lo system electronically operated flybridge dining table with Corian frame and synthetic marble insert
- Flybridge hatch
- Hardtop
- Lounge furniture on aft fly, C-shape sofas in Batyline fabric with coffee table
- Painted hull
- Spreader lights on aft fly (N.6)
- Table on bow with Corian frame and synthetic marble insert
- Telescpoic gangway
- Upgrade std external cushions in Batyline fabric
- Additional socket
- Additional storage shelves in engine room, portside aft of engine
- And aft above generator
- Coffee table in salon
- Co-pilot seat in main helm
- Extra size master bed
- Fabric curtains in master cabin
- Fabric curtains in VIP and guest cabins
- Black-out system for curatins in master cabin master head
- Shower wall in marble
- Safe in master cabin
- Safe in crew cabin
- Scenic lights package
- Set of linens for cabins
- Set of towels for one person with Azimut logo toilet with bidet faucet feature
- VIP head shower wall in marble
- Wooden floor in lower deck hallway
- Wooden floor in salon, dinette and stairs
- BBQ on fly
- Icemaker on fly
- Washer and dryer in crew cabin
- Winecooler in salon
- Raymarine AIS 700
- Raymarine platinum package
- Raymarine videocameras (NR.3)
- Raymarine FLIR M332 thermal camera audio/video package
- Flybridge furniture with built-in tv and hi-lo system
- Additional set of zincs
- Cockpit furniture w/ icemaker
- Cockpit table w/ Corian frame and snythetic marble insert
- Teak on flybridge
- Underwater multicolor lights (N.8)
- Addl BBQ grills on flybridge furniture
- BBQ in cockpit (in the icemaker furniture)
- Addl 14 decorative cushions
- Custom stbd salon bottle cabinet cutout
Standard Features

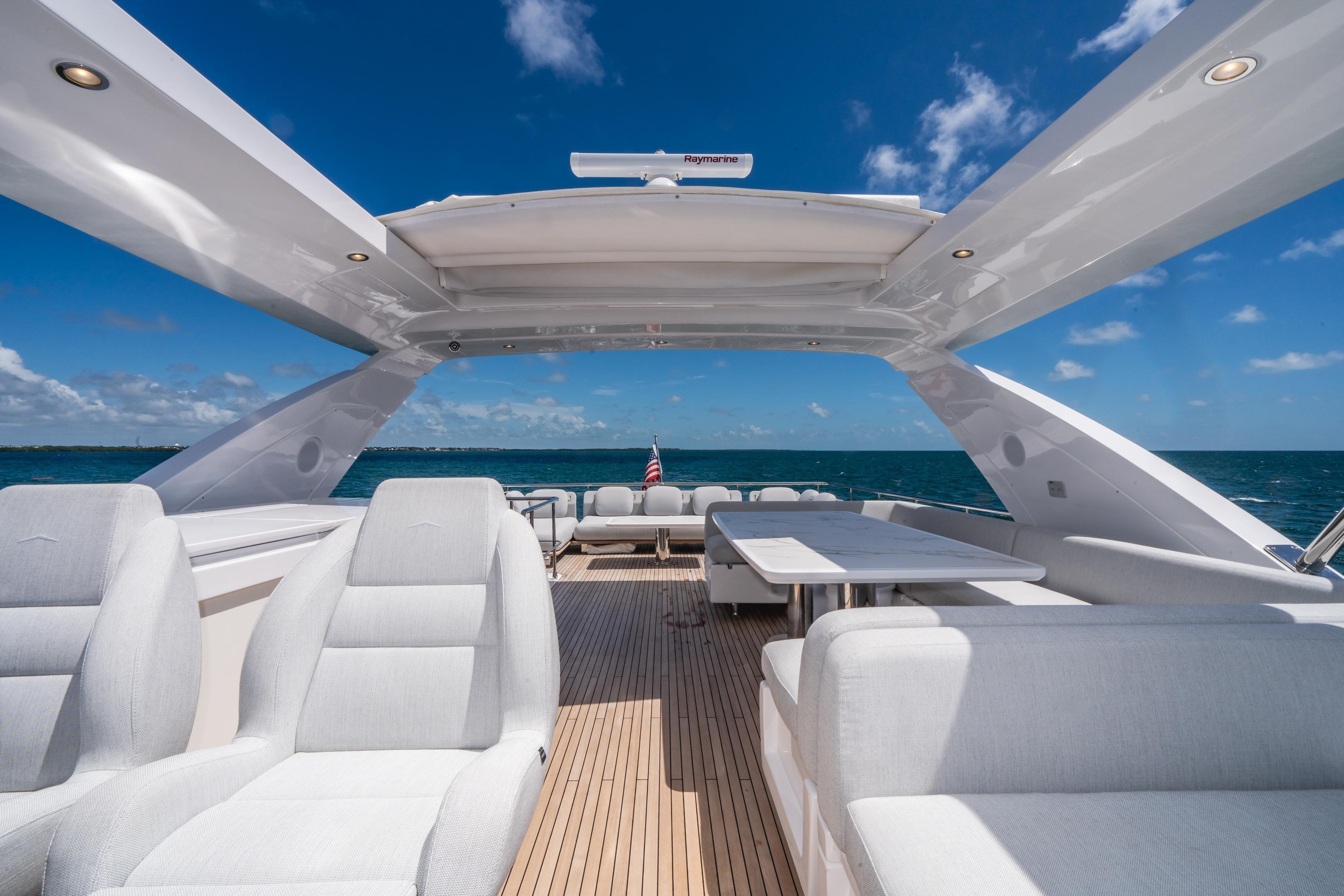

Flybridge
Accessible from the cockpit, via a teak covered GRP ladder
- Helm seat with adjustable height for one person
- Adjustable steering wheel
- Teak table
- Two watertight loudspeakers
- Fore port sunbed area with cushions
- C-shaped seating area on port side
- Cup holder for passenger and pilot
- Plexiglas flybridge screen with steel frame
- Possibility of housing a jet ski or tender 2.85 m (9' 4") long
- Roll bar in carbon fiber, steel and glass handrails
- MAN display
- The pilot console consists of:
- PLATINUM series electronic navigation instruments
- Communication systems (VHF)
- Engine start-up
- Steering wheel
- Bow thruster controls
- Bow anchor winch control
- Audible alarm controls
- Trim tab controls
- 12 V socket
- Chain meter counter controls
- Bar cabinet with sink and fridge
- LED navigation lights
- Searchlight

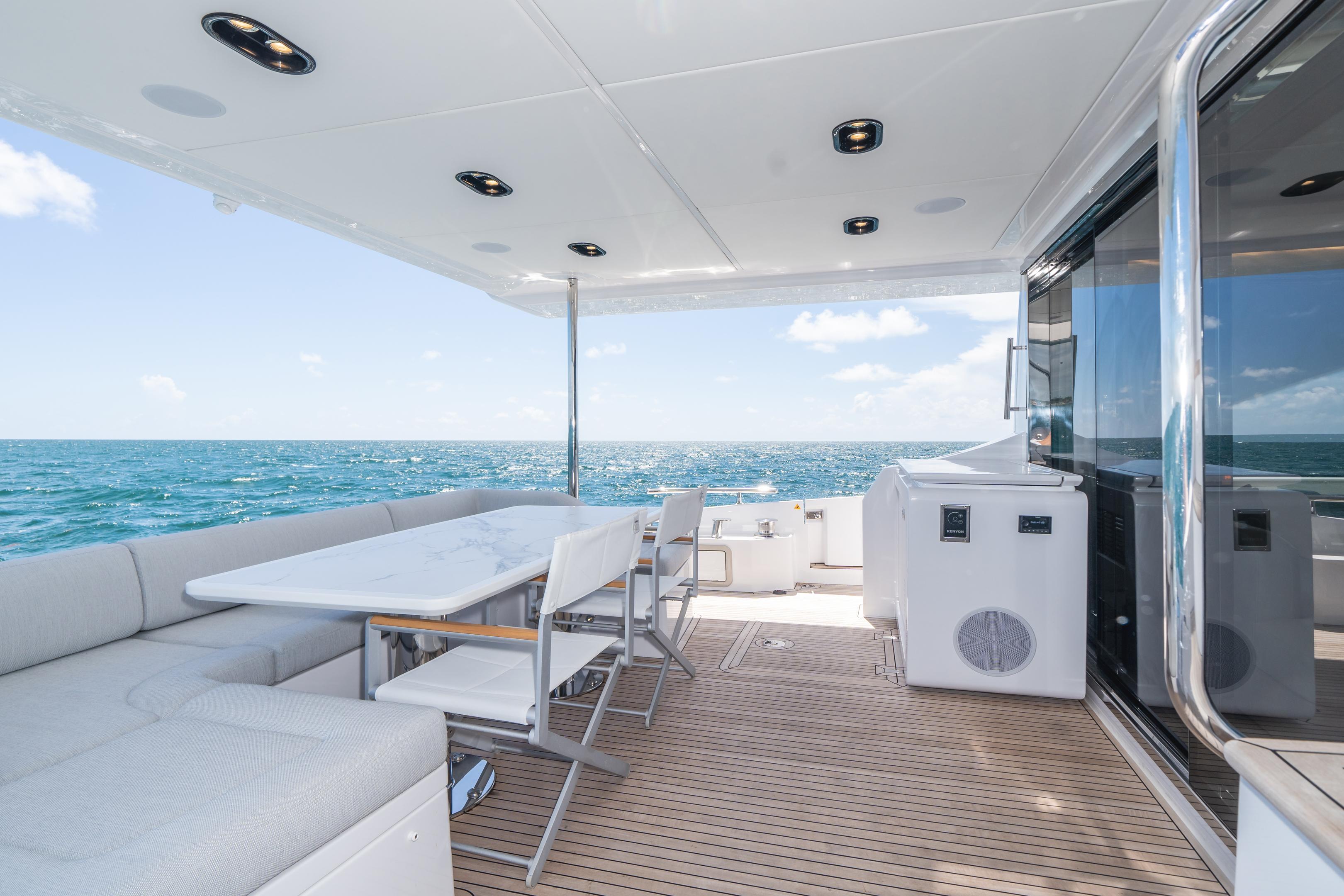

Deck and Cockpit
Access via gates from both sides (in 316 stainless steel) and via gangway (upon request)
- 316 stainless steel pulpit on side washboard
- Stainless steel 316 chocks
- Thick tempered glass windows glued to the surrounding structure without any metal frame
- Watertight side door on superstructure for access to saloon from starboard side
- Rubber rub-rail with stainless steel insert along the hull side
- Refueling plug and fresh water refill plug on side walk arounds
- Black water tank suction point on walkarounds
- Two midship cleats per side
- Walk arounds: teak covering
- Electric windows on port side (galley)
- Two side boarding gates on washboard, in stern cockpit
- Four openable line-holder lockers on bulwarks
- Two lockers and side compartments (below the mooring stations)
- Two storage lockers, fore
- Fender-holder locker in transom
- Shoe rack in cockpit starboard seating area
- Mooring winches
- Stern mooring cleats in 316 stainless steel
- Saloon access door with three stainless steel/glass panels
- Cockpit bench
- Access to engine room via pantograph door in transom (port side) and escape hatch in cockpit floor
Bow
- 2700 W winch
- Anchor winch controls
- Chain locker with drainage and fender housing
- Chain washing / fire extinguishing system
- 65 kg (143.3 lb) anchor
- Anchor chain, length 100 m (328' 1")
- Hawsehole for anchor
- Two windscreen wipers
- Two stainless steel cleats
- Hatchway
- Two bow handrails for sunbed cushions
- C-shaped seating
- Sunbed cushions and cup holders
Lighting
- LED spotlights on ceiling
- Bathing platform lighting
- Teak table in cockpit
- Two shore water intakes
- Shower with hot and cold mixer tap
- Manual swimming ladder (starboard side)
Installable Tender (OPT):
- MAXIMUM DIMENSIONS OF TENDER - PLATFORM: 3.90 x 1.76 m (12'10'' x 5'9'')
- MAXIMUM DIMENSIONS OF TENDER - FLYBRIDGE: 3.30 x 1.70 m (10'10'' x 5'7'')
- MAXIMUM INSTALLABLE LIFT LOAD:
- 840 kg (1851.88 lb) (the above value considers 640 kg (1410.96 lb) of water toys + 200 kg (440.92 lb) for operators and various accessories)
- RECOMMENDED TENDER - PLATFORM: Pirelli J39
- RECOMMENDED TENDER, FLYBRIDGE: Pirelli J29

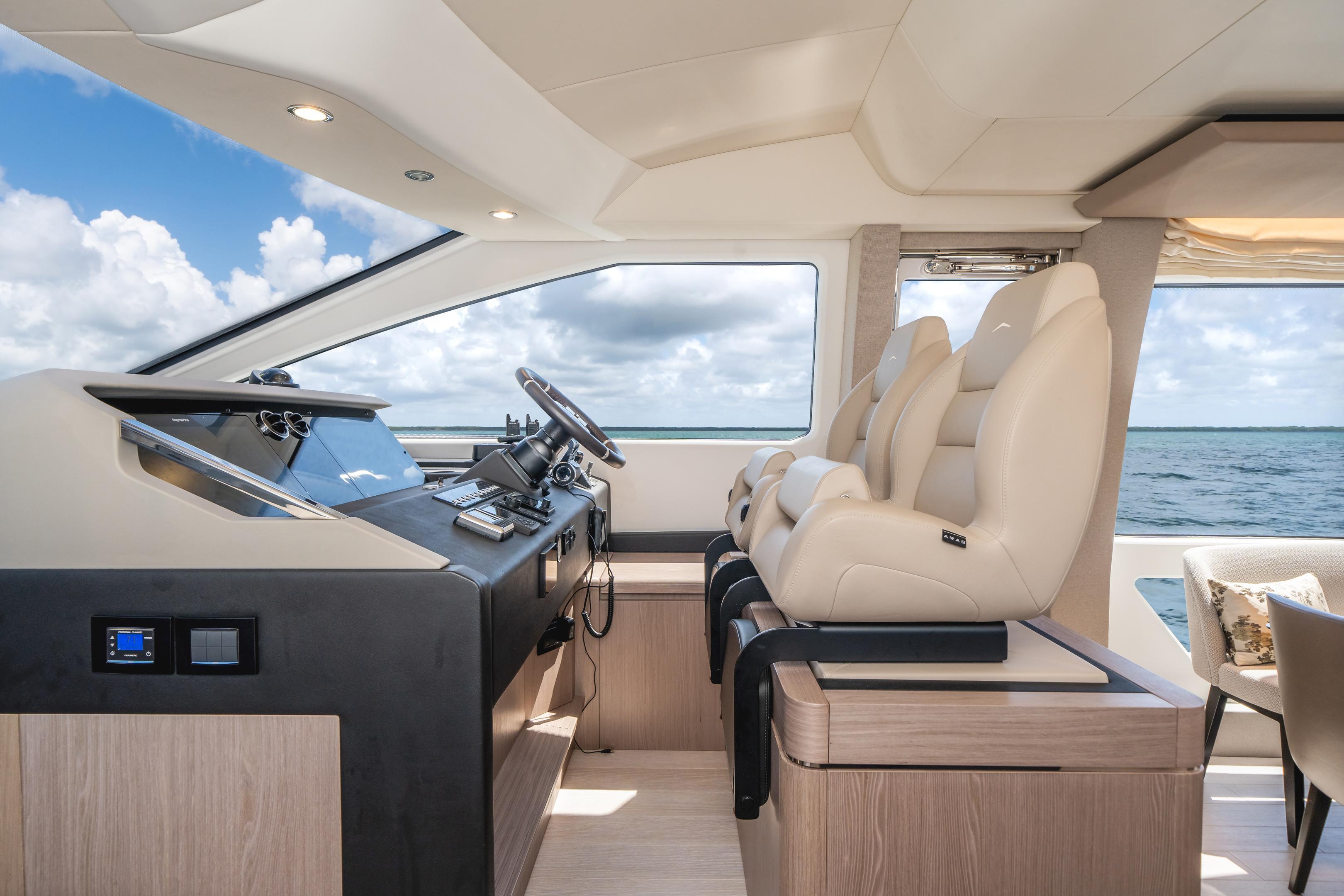

Wheelhouse
Access via watertight door from starboard walk around
- Rudder angle indicator
- MAN control instruments
- 12 V socket
- Automatic pilot
- One electrically adjustable helm seat
- Adjustable steel rudder
- Chain meter counter
- Magnetic compass
- 24 V + 220 V electric panel
- Cigarette lighter 12 V socket
- Controls for:
- Activation of: bow anchor winch, searchlight, bow-thruster, windscreen wiper-washer, trim tabs, fire fighting pump, engine start-up, electronic engine remote controls (thrust levers)
- Multifunction display (built-in)
- Alarm indicator lights for: bow bilge, engine room bilge, rudder hold bilge, high gray water level, high black water level, Racor filters, navigation lights, shore power sockets, low battery voltage, low diesel level
- Fresh water level gauge
- Diesel level gauge

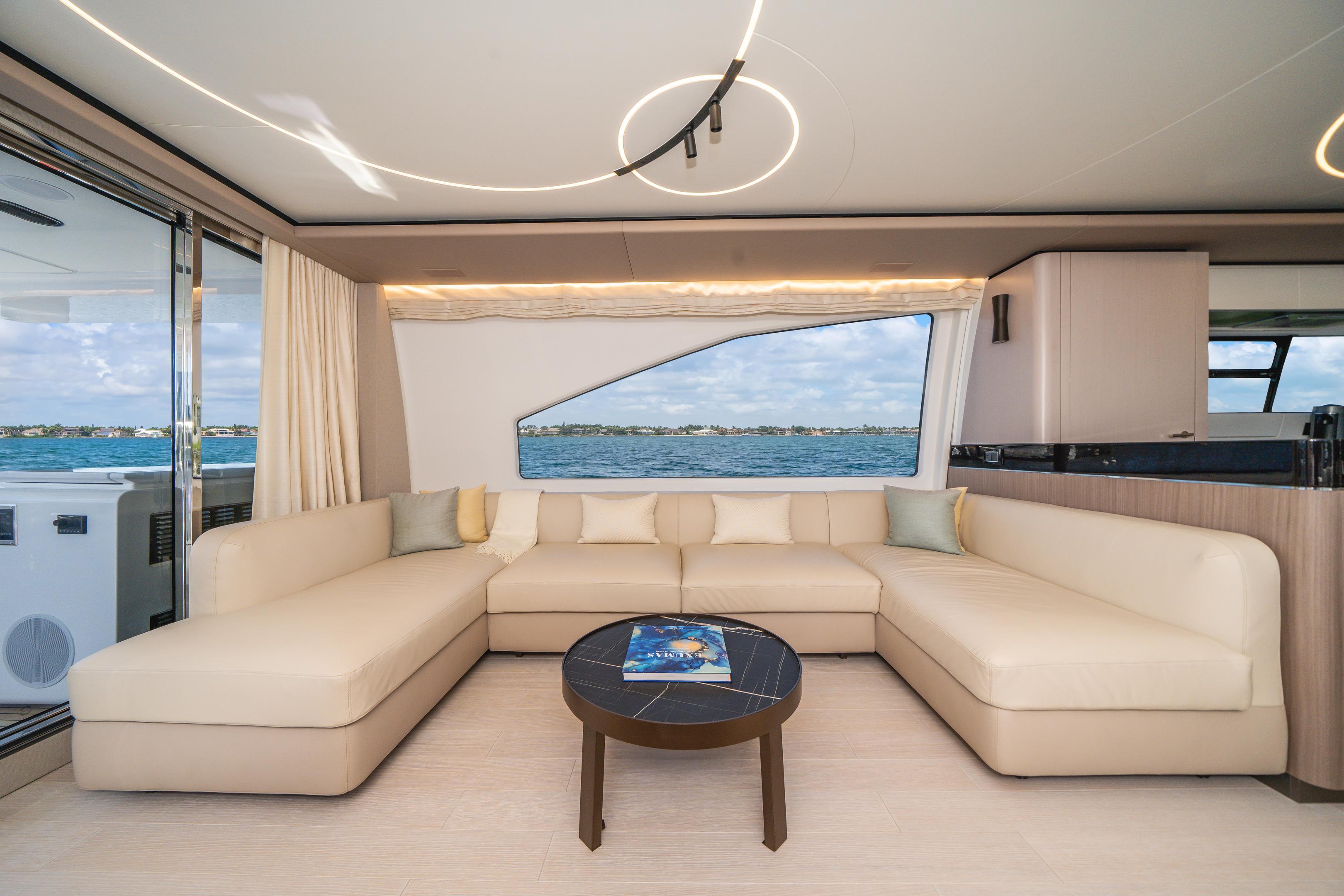

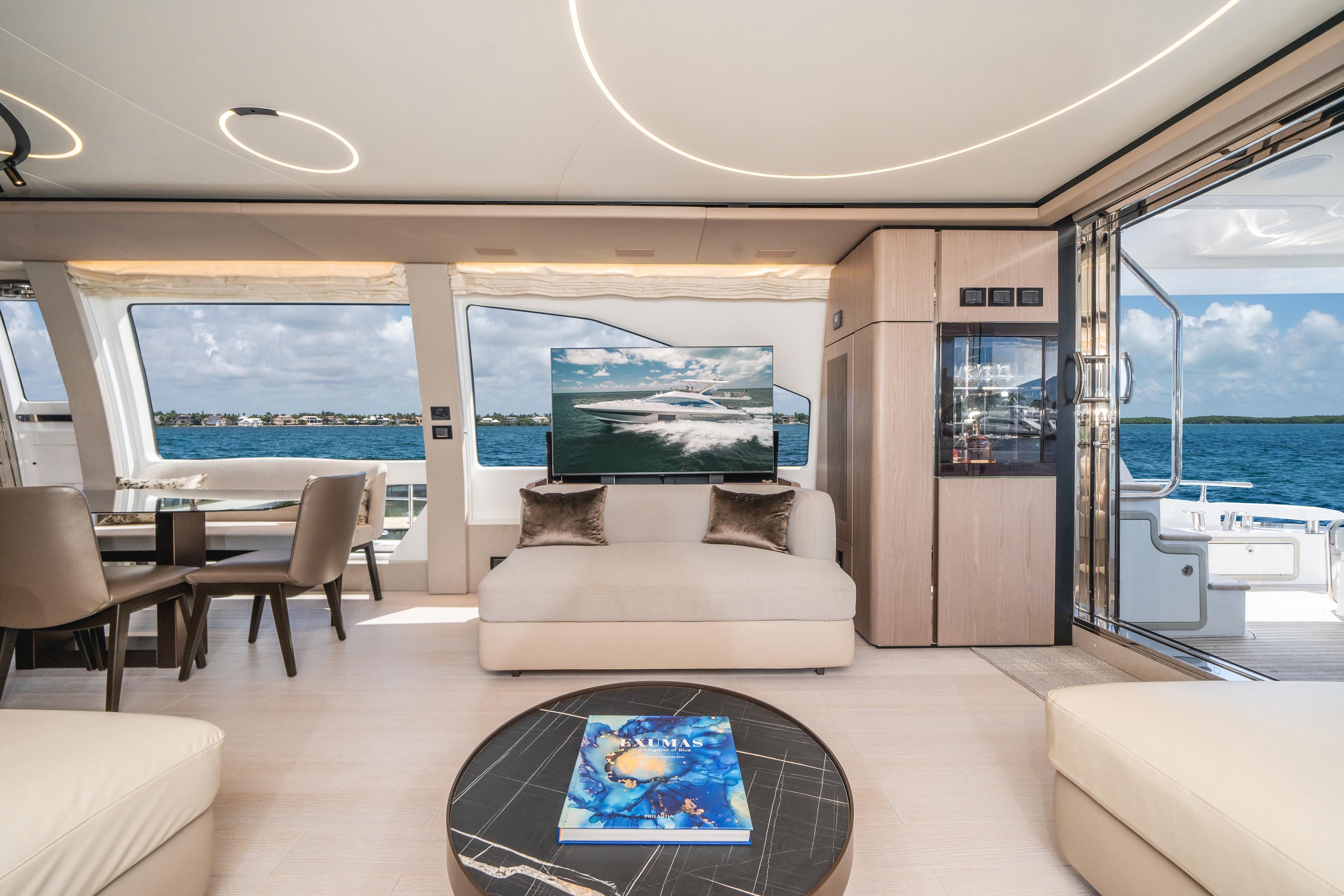

Saloon
- Carpeted floor
- Fore sofa, port side facing the bow (two seats) and aft sofas (eight seats) with storage
- Cabinet at saloon entrance (starboard side), with integrated glass-holder
- TV system with aerial
- Dining table on starboard side of saloon for eight people, with five chairs and 3-seater bench
- Galley on port side
- Set of wooden furniture
- Cabinet for tableware beneath the helm seat
- Stairs leading below deck (in bow area)
- Roman blinds
- Saloon door blind

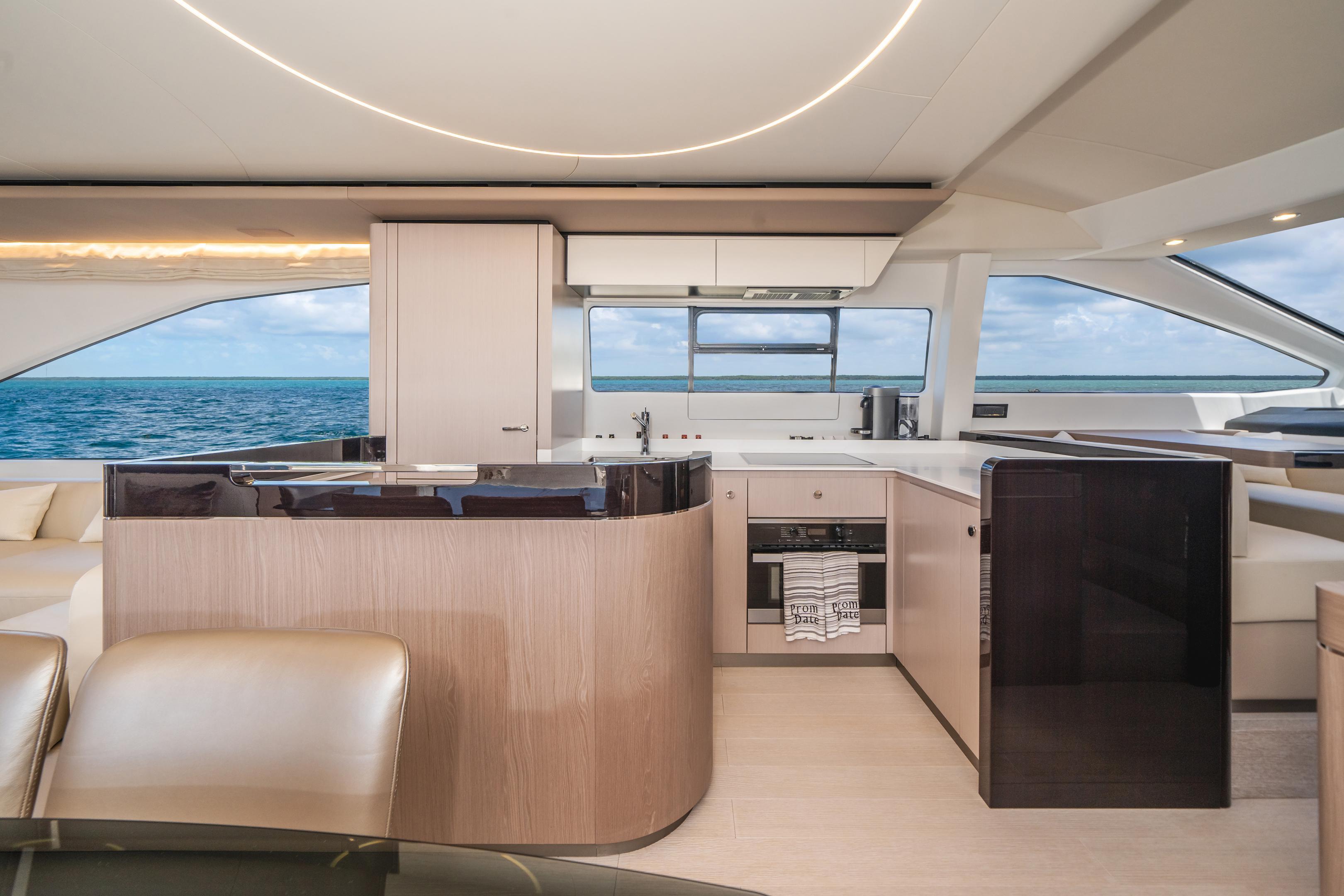

Galley
- Hood integrated in the wall cabinet
- Wooden floor
- Window with electric opening
- Avonite worktop and riser
- One stainless steel sink
- Drawers and wall cabinets
- Ceramic glass four-hob range with silicone pot holder
- 28.3 l (1 cu.ft) microwave oven with grill
- 240 l (8.47 cu.ft) Fridge / Freezer
- Corridor to access below-deck area
- Carpeted floor
- Spotlights
- Two storage lockers
Owner's Cabin (Midship)
Accessed from corridor
- Double bed + storage
- Mattress, pillows and bedspread
- Headboard in fabric and wall in wood essence
- One fore armchair on starboard side
- One aft armchair on starboard side
- Two headboard wall lights
- Set of wooden furniture
- Port aft dressing
- Storage chest of drawers on port side
- Vanity on starboard side
- Provision for TV system
- LED spotlights
- Two openable portlights (one per side)
- Two windows (one per side)
- Venetian blinds
- Carpeted floor
- Direct access to head
Owner's Head
Access from owner's cabin
- TECMA toilet
- Two washbasins with top in statuary quartzite
- Two blenders
- Flush-mounting mixer tap for shower
- Stainless steel shower enclosure with glass panels and oak grating
- Stainless steel soap-dish in shower
- Two cabinets + two wall cabinets
- Wooden flooring
- LED spotlights
- One openable portlight with curtain
- One air extractor
- Chrome head accessories
VIP Cabin
- Double bed with storage
- Mattress, pillows and bedspread
- Headboard in fabric and wall in wood essence
- Set of wooden furniture
- Two wardrobes
- Two storage wall cabinets
- Two headboard wall lights
- LED spotlights
- Windows with two openable portlights (one per side)
- Hatch for emergency exit onto fore sunbed area
- Direct access to head
- Provision for TV system
- Carpeted floor
- Venetian blinds
- Fabric-upholstered bulwarks
VIP Head
Access from VIP cabin
- TECMA toilet
- One washbasin with top in statuary quartzite
- One blender
- Stainless steel shower enclosure with glass panels
- Stainless steel soap-dish in shower
- Wall cabinet
- Wooden flooring
- LED spotlights
- One openable round portlight with curtain
- One air extractor
- Chrome head accessories
Guest Cabin (Starboard Side)
- Two single beds with storage
- Mattress, pillows and bedspread
- Headboard in fabric and wall in wood essence
- Set of wooden furniture
- One wardrobe
- One bedside table
- Fabric bulwark upholstery
- Window with one openable portlight
- Provision for TV system
- Carpeted floor
- Two wall lights
- Direct access to head
- LED spotlights
- Venetian blinds
Guest Head (Starboard Side)
Access from starboard side guest cabin
- TECMA toilet
- One washbasin with statuary quartzite top
- One blender
- Stainless steel shower enclosure with glass panels
- Stainless steel soap-dish in shower
- One wall cabinet
- Wooden flooring
- LED spotlights
- One openable portlight with curtain
- One air extractor
- Chrome head accessories
Guest Cabin (Port Side)
- One double bed with storage
- Mattress, pillows and bedspread
- Headboard in fabric and wall in wood essence
- Set of wooden furniture
- One wardrobe
- One bedside table
- Fabric bulwark upholstery
- Two wall lights
- LED spotlights
- Window with one openable portlight
- Venetian blinds
- Direct access to head
- Provision for TV system
- Carpeted floor
Guest Head (Port Side)
Access from port guest cabin and from corridor
- TECMA toilet
- One washbasin with statuary quartzite top
- One blender
- Stainless steel shower enclosure with glass panels
- Stainless steel soap-dish in shower
- One wall cabinet
- Wooden flooring
- LED spotlights
- One openable round portlight with curtain
- One air extractor
- Chrome head accessories
Crew Room
Consisting of two rooms: a cabin with portlight for the commander and a shared crew room.
- Both cabins are provided with:
- One bed
- Mattress, pillow, and bedspread
- Laminate flooring
- Set of laminated furniture
- Storage cabinets
- Access to the crew area via the transom
- One escape hatch in the shared room
Crew Head
- TECMA toilet
- Cabinet with sink
- Mixer tap
- Shower with curtain and grating
- Chrome soap-dish and glass holder
- One openable portlight with curtain
Electrical System
Main Characteristics
- The voltage levels on the boat are as follows: 220 V AC (110 V for 60 Hz version), 24 V DC, 12 V DC
- The main electric panels are installed in:
- Crew room astern
- Wheelhouse
Generator
- Version EUROPA, 50 Hz:
- Two 20 kW generator / 60Hz located in the engine room
Shore Power Sockets
- Two 110 V - 60 Hz power sockets (port side)
- The AC power sources are controlled from the main electric panel in the auxiliary room, with a voltmeter and frequency meter for the 220 V network.
- The power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches
Batteries
- AGM batteries 90 Ah - 24 V (total 540 Ah):
- Six for services
- Six for engine start-up
- Four for the thruster
- One AGM battery 70 Ah - 12 V for generator
- One 12 V - 10 A Mastervolt generator battery charger
- One Mastervolt battery charger 24 V - 80
- A for the service batteries
Lights and Sockets
- AC sockets: 110 V for main utility power supply, US type
- DC sockets: cigarette lighter type (wheelhouse) + USB socket
- 24 V lighting (LED)
- 24 V watertight external lights (LED)
Bilge System
- Central system with intakes in each compartment, connected to main manifold located in engine room:
- Three automatic electric pumps:
- One electric pump with manual and/or automatic activation below the bed in the owner's cabin, one electric pump with manual and/or automatic activation, in the engine room, astern, under the generator unit, one electric pump with manual and/or automatic activation, in the steering areas, with access from the crew room
- Two manual pumps:
- One manual pump under the floor of the owner's cabin, in front of the bed, one manual pump in the cockpit locker under the cockpit emergency panel, where there is also a selector to choose suction either from the steering area or from the engine room.
- Three-way valve on engine cooling
- Four bilge level alarms
- Emergency suction in engine room connected to one of the two engine seawater intakes
Fire Extinguishing System
- One SEAFIRE type cylinder in engine room for local discharge
- SEAFIRE Engine Shutdown System to switch off engines, generators, extractors and fans automatically when the gas is discharged
Fuel System
- Two steel tanks (not communicating),2600 l (686.8 US.liq.gal.) each, total capacity 5200 l (1373.6 US.liq.gal.), in the engine room
- Electronic level gage for starboard diesel tank, with display in the wheelhouse
- Optical diesel level gage on port tank
- Double filters for engines
Fresh Water System
- 1100 l (290.6 US.liq.gal.) polyethylene tank
- Water filling from walk around
- Level sensor and status indicator in wheelhouse
- Tank vent
- 100 liter (26.4 US.liq.gal.) water heater
- Two connections for water supply directly from shore
- Hot/cold water line
- Cold water line in engine room
- Fresh water toilet flushing
Black Water System
- One 450 l (118.9 US. liq. gal.) polyethylene tank
- Level sensor
- Pump operating button
- Tank vent
- 24 V 70 l/min (18.49 US. liq. gal./min) macerator pump in each toilet
- Water filling from walk around
- Sea outlet
Gray Water System
- One 500 l (132.1 US. liq. gal.) polyethylene tank
- Water drainage directly into the sea
- Pump switch
- 24 V 70 l/min (18.49 US. liq. gal./min) membrane pump
- Level sensor and status indicator in wheelhouse
Seawater System
- Engine cooling
- Generator unit cooling
- Conditioner cooling
- Chain washing pump
- Fire extinguishing system
Hydraulic System
- One independent steering system pump
- Humphree
- One 24 V electro-hydraulic pump for gangway and bathing platform
Ventilation
- Natural engine room ventilation
- Engine room air extraction with four extractors (3300 m3/h (35.3 cu.ft/h))
- Head air extraction system with dedicated extractor for each head (apart from crew head)
Engine Room
Access from crew room, cockpit
- Bilge drainage pump through engines cooling circuit
Exhausts
- Immersed exhaust system with bypass
- Stainless steel outlet pipes
- Underwater outlet via structural duct in GRP
- Minimum bypass pipe for gas outlet with boat stationary or traveling at reduced speed
- Water/fumes separator for generator with side exhaust
Air Conditioning System
- Air conditioning, one version only - 120,000 BTU
- 48,000 BTU for the saloon
- 36,000 BTU for the windscreen area
- 42,000 BTU for cabins, including:
- Owner's cabin -18,400 BTU
- VIP cabin - 12,500 BTU
- Starboard guest cabin - 9,200 BTU
- Port guest cabin - 9,200 BTU
- 6,200 BTU for crew room
- A/C controls in all the cabins, the saloon and the dinette
- Deliveries in all heads except for crew cabin
Fancoils
- Four for saloon + dinette
- Two for windscreen
- Two for owner's cabin
- One for VIP cabin
- One for starboard side guest cabin
- One for port side guest cabin
- One for crew room
|
