Options
- Seakeeper Stabilizer NG6
- Audio / video package with decoders and sat antenna
- Tracvision tv3 usa
- Painted hull, gunwhale and hardtop
- Raymarine platinum package
- Estech on cockpit, aft swim platform, swim platform and side beach platform and wheelhouse
- Advance package
- Bow thruster
- Mercury maneuvering package
- Electric awning in cockpit
- Painted motors cowlings
- 40" tv in cockpit w/ hi-lo mechanism
- Full monitoring system
- Luxury exterior lighting package
- Electric hi-lo cockpit table (deck flush)
- BBQ in cockpit furniture
- Sun shade sail on bow w/ removable carbon fiber poles
- Electrically operated porthole on htop
- Sofa bed in dinette w/ hi-lo table
- Wooden floor in dinette and galley
- Removable table on bow in carbon fiber finishing
- Painted boot stripe for painted hull
- Cooktop in cockpit furniture
- Sunbathing cushions on bow w/ foldable backrest in upgraded Spradling fabric
- Winecooler
- N.2 underwater lights on sides (1 per side)
- 2 underwater lights on transom
- Interiors and exteriors dimmered lights
- Storage predisposition for seabob and inflatable
- Set of cutlery, crockery and glasses
- Set of linen for cabins
- Stainless steel anchor
- Safe in master cabin
- Set of towels (one person)
- Toilet w/ bidet faucet feature
- Stern sofa cover
- Bow sunbathing and setee cushions covers
- Appliances upgrade
- Chaincounter in main helm
- Peace of mind warranty
- Extra conduits
- Backrest in upgraded spradling fabric
- Predisposition for watermaker
- Mercury skyhook system
- Mercury maneuvering joystick w/ dedicated extra gps antenna
- Automatic outboard flushing system
- Decor upgrade
- Windshield cover
- Pilot seat and dashboard covers
- Outboard flushing system
Standard Features
Exterior
Hard Top
Carbon fiber Hard Top equipped with:
- Lights mast
- Compliant navigation lights
- Electric adjustable spot with remote control (for USA version)
- Portlight with manual opening system
Bow
- Chain locker provided with drainage, accessible through hatch
- Remote control for fore winch
- Stainless steel anchor line anti-rubbing protection
- Hatch (emergency exit from master cabin)
- Sunbed area with built-in glass holders
- Grabrails on sunbed area sides

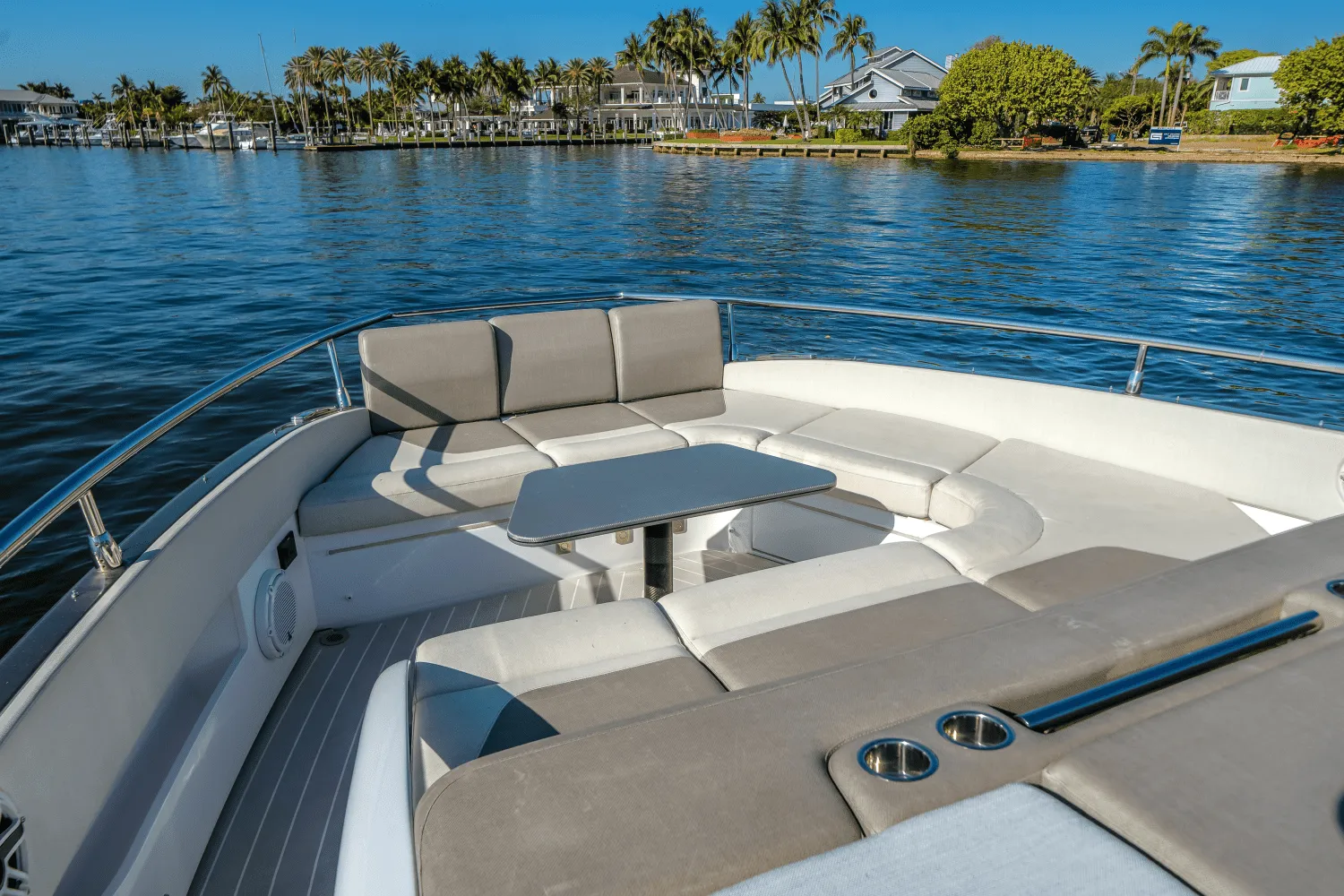

- C-shaped seating area at the bow
- Fridge
- Scuppers

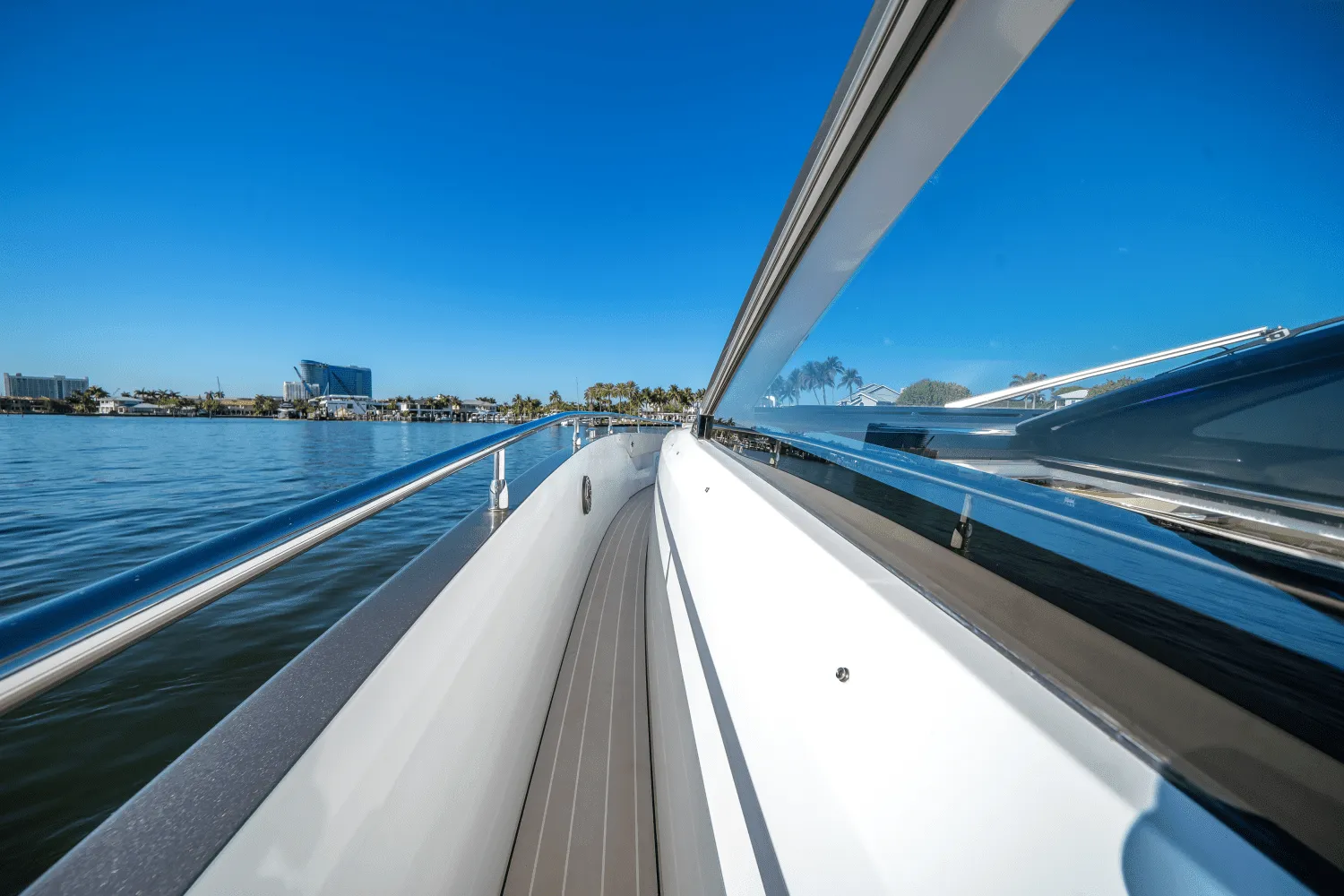

Walk Arounds
- Access to port walk around from the cockpit
- Access to starboard walk around from the wheelhouse
- Rubber rub-rail with stainless steel insert
- Stainless steel pulpit with handrail

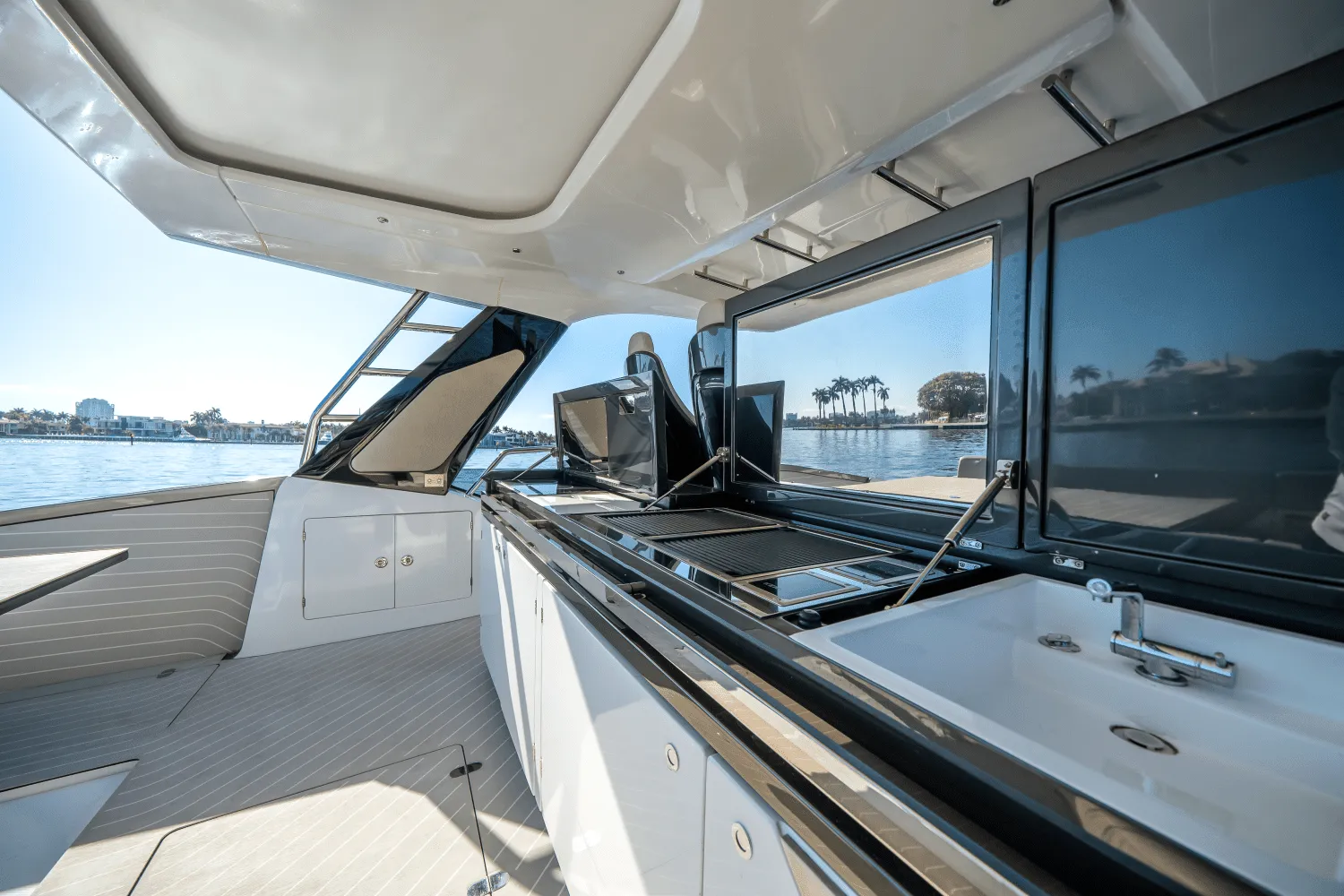

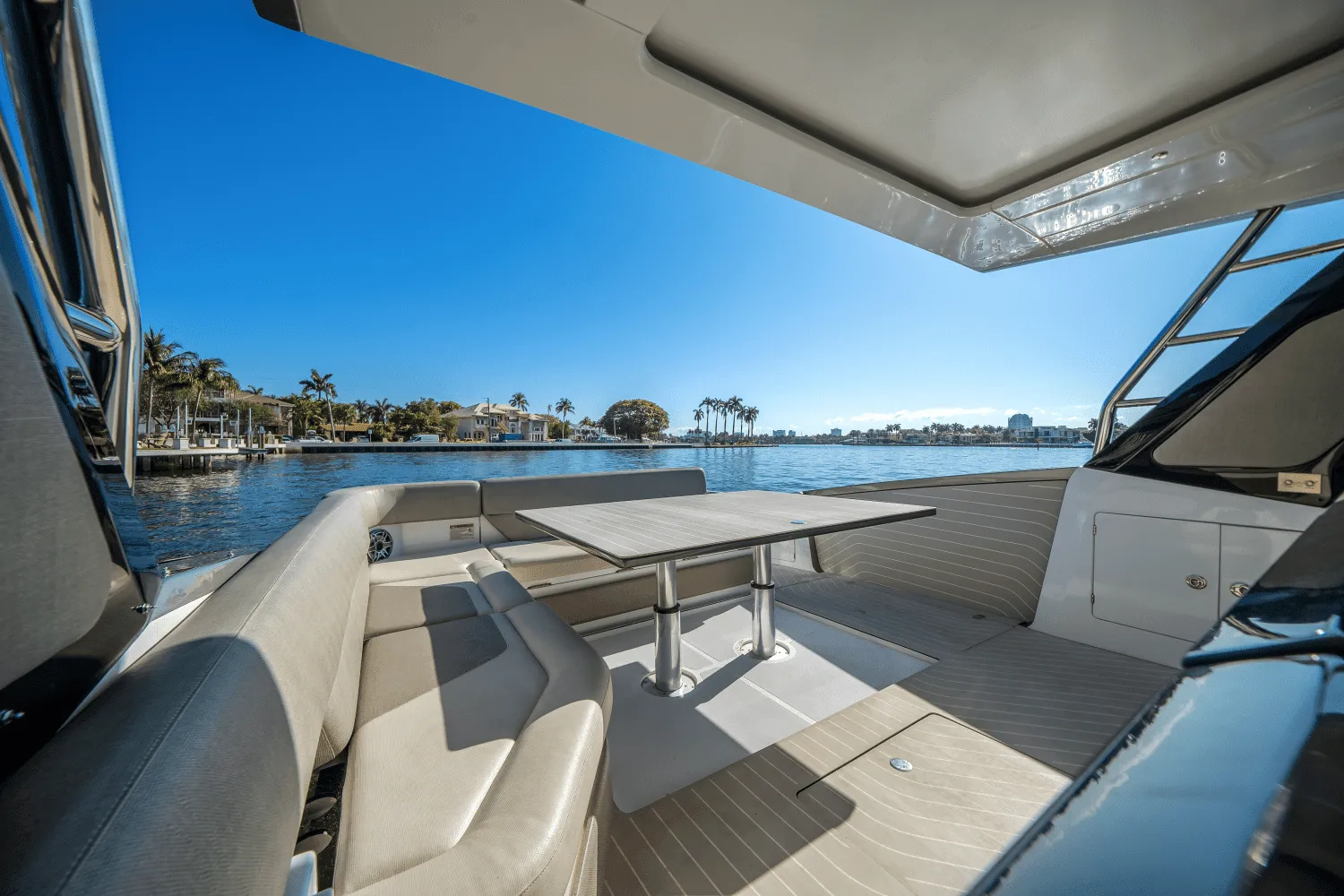

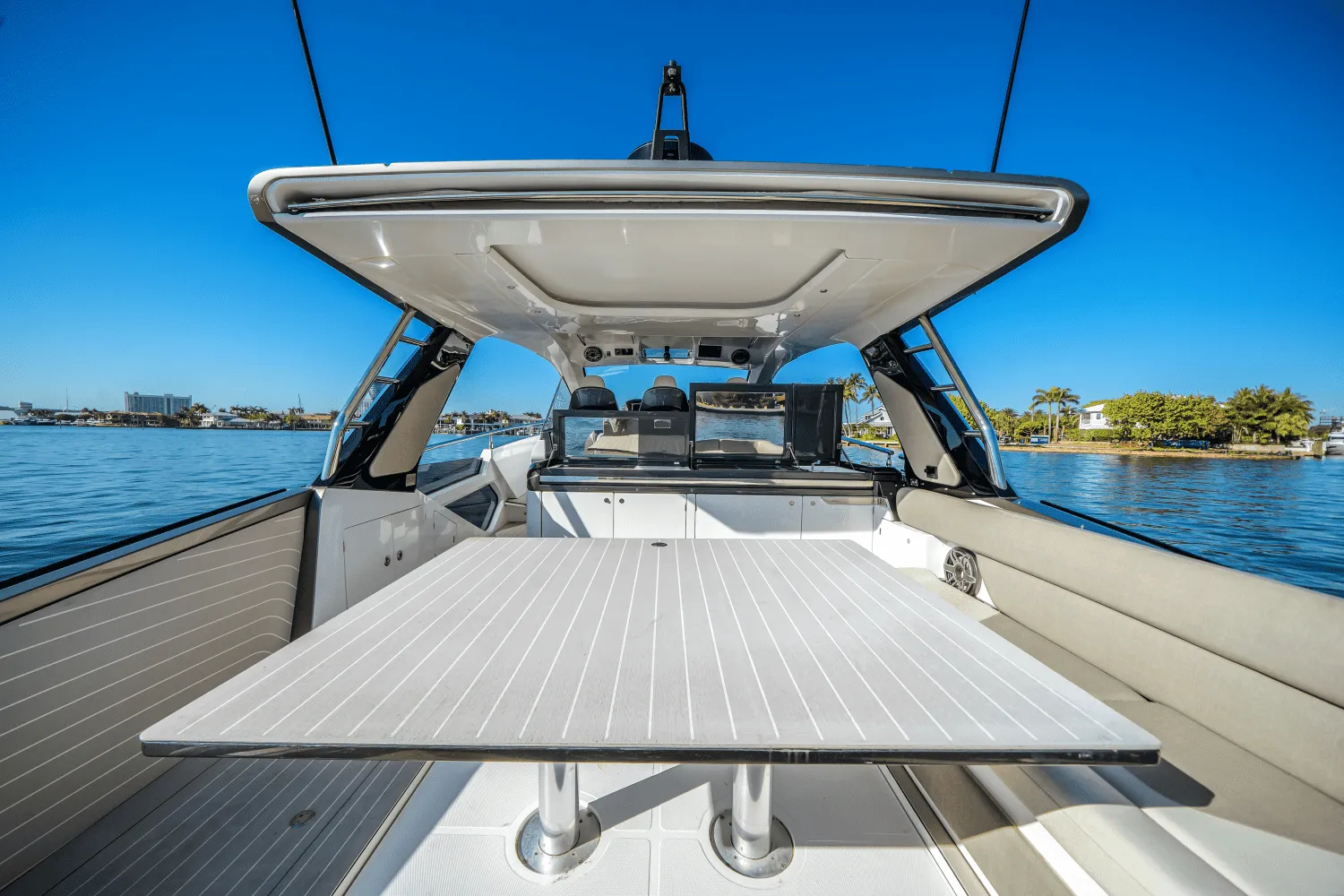

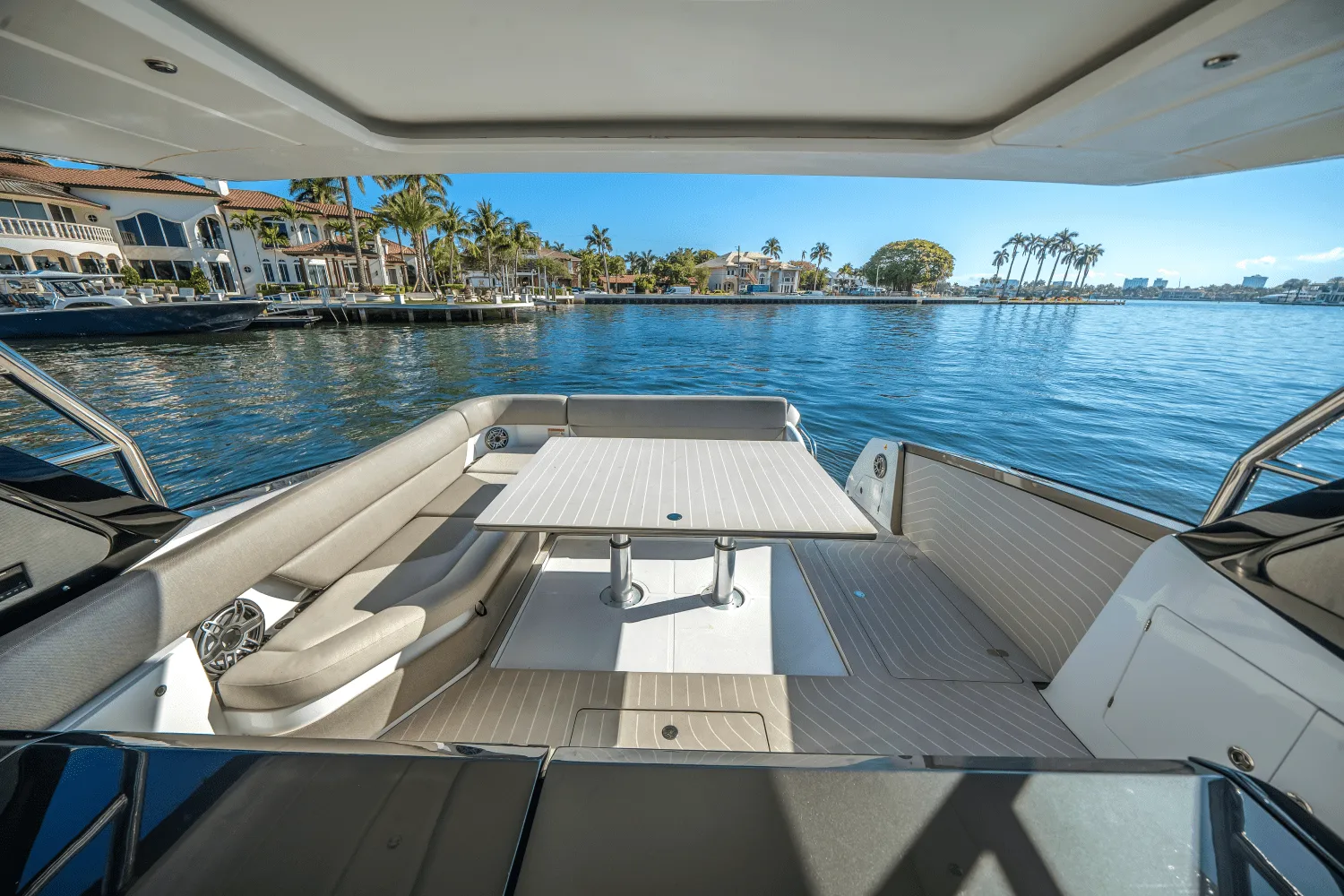

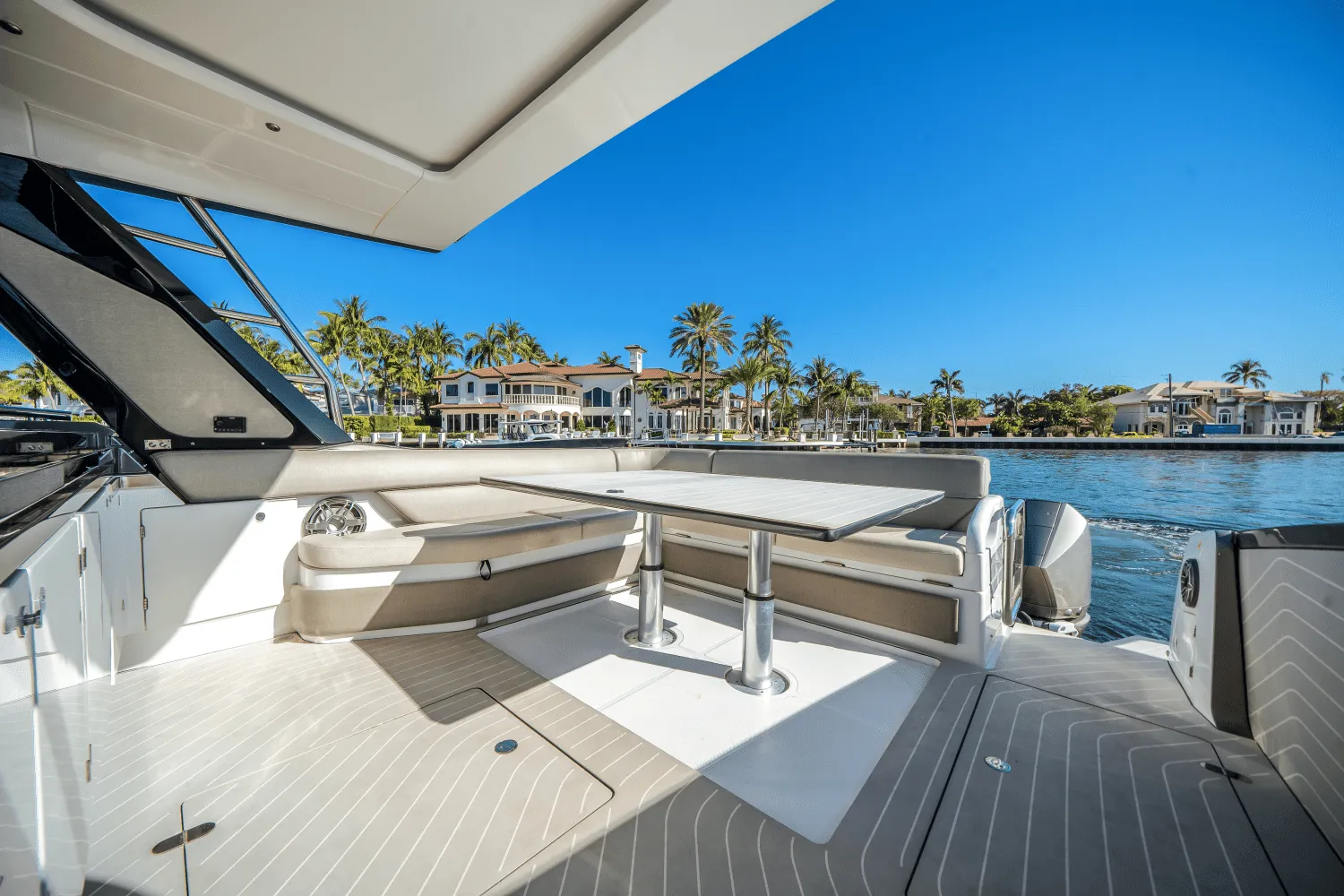

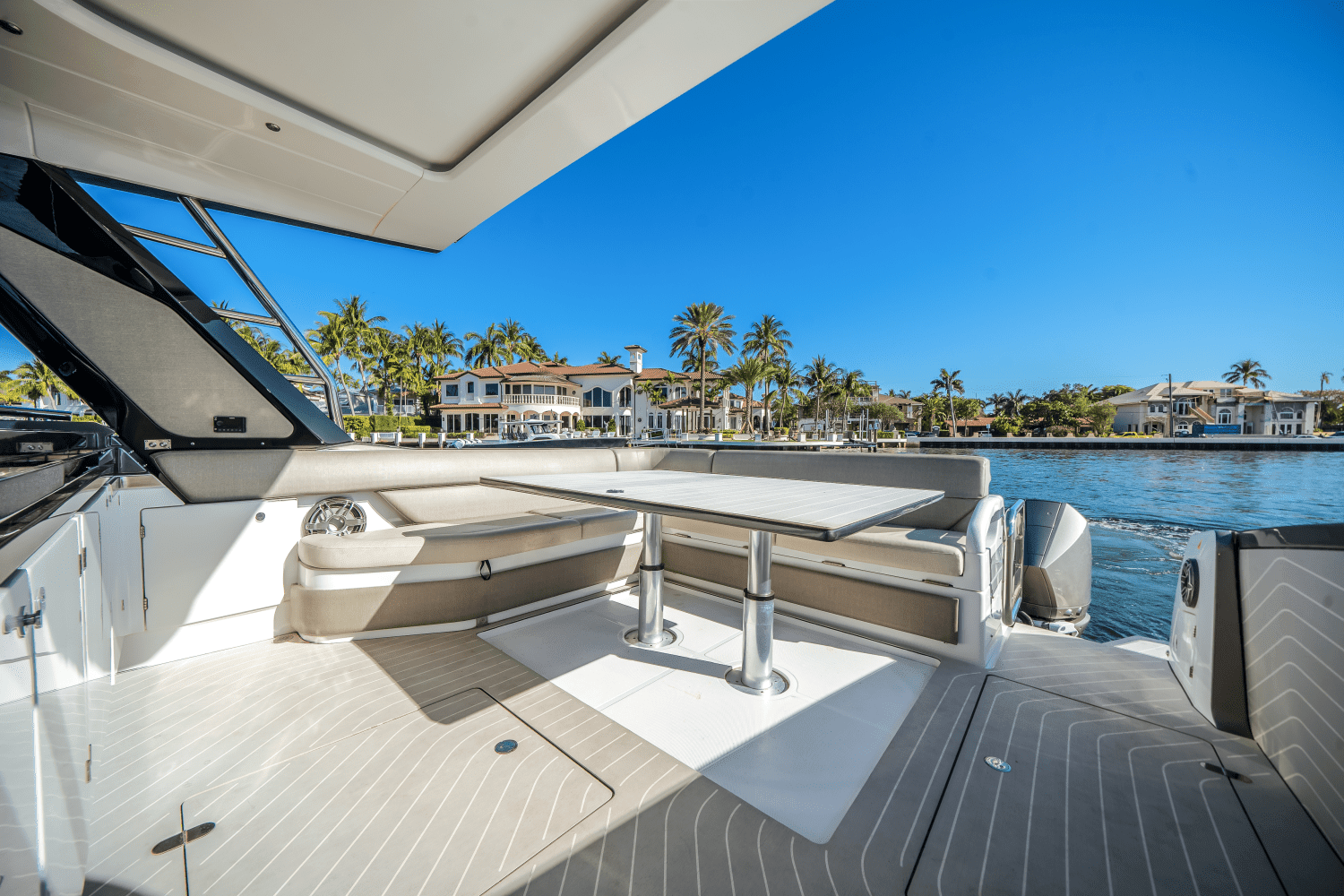

Cockpit
-One access on port side through stainless steel gate
- Port side platform with electric control
- Manual pull-out swimming ladder, located inside the side platform
- "L" shaped sofa in dining area

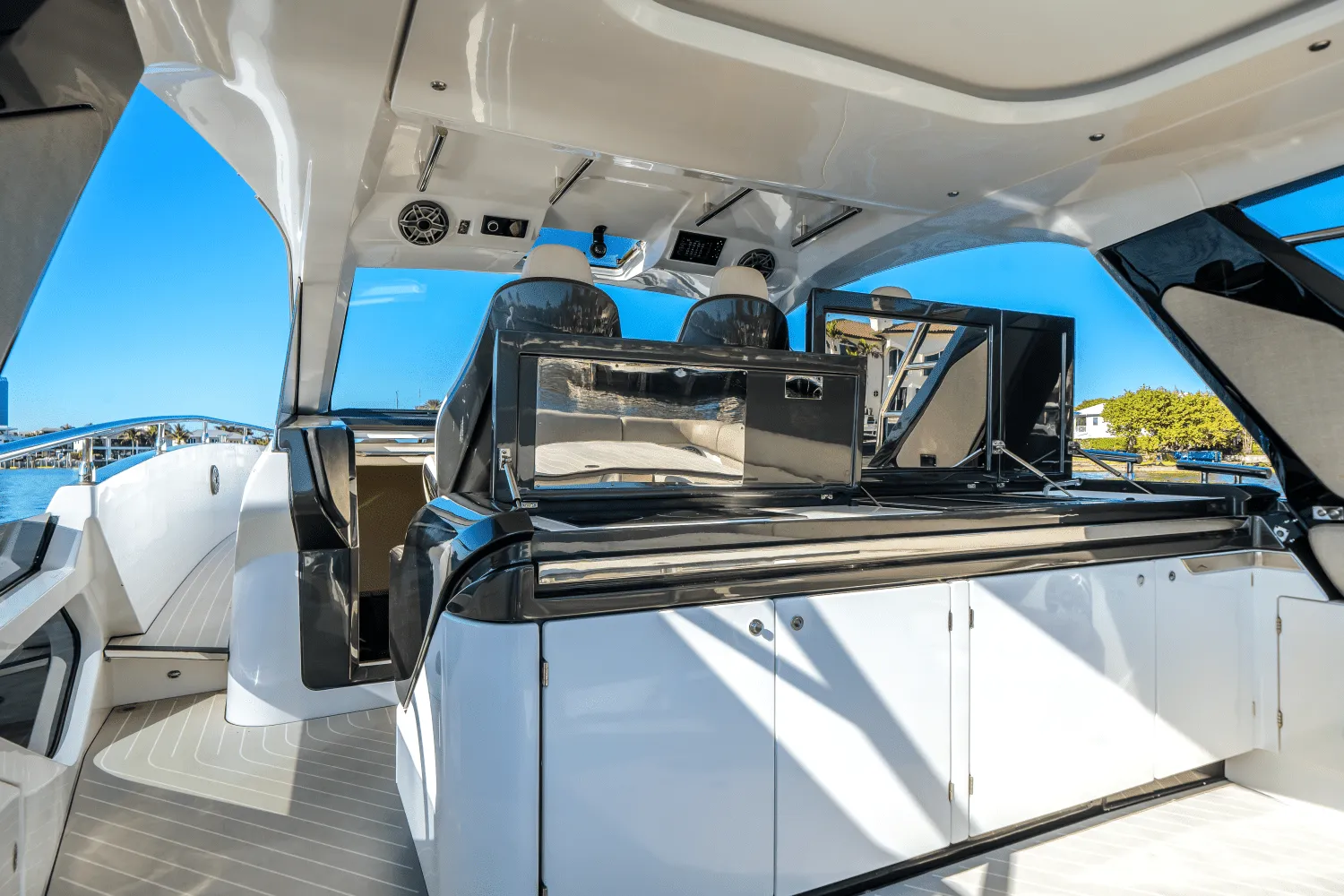

- Cabinet installed crossways, aft of the wheelhouse, with:
- Icemaker
- Fridge
- Engine room access, through hatch located at the center of the cockpit
- Non-slip floor
- Lighting with LED spotlights and bars and mounted recessed on the fabric upholstered ceiling by means of a stainless steel frame
- Scuppers
Aft Platform and Hold
- Hold possibly to be used as a garage for seabob, equipped with manual hatch
- Non-slip floor
- Extractable shower head
- Port side external GRP step for access to the cockpit
- One aft gate

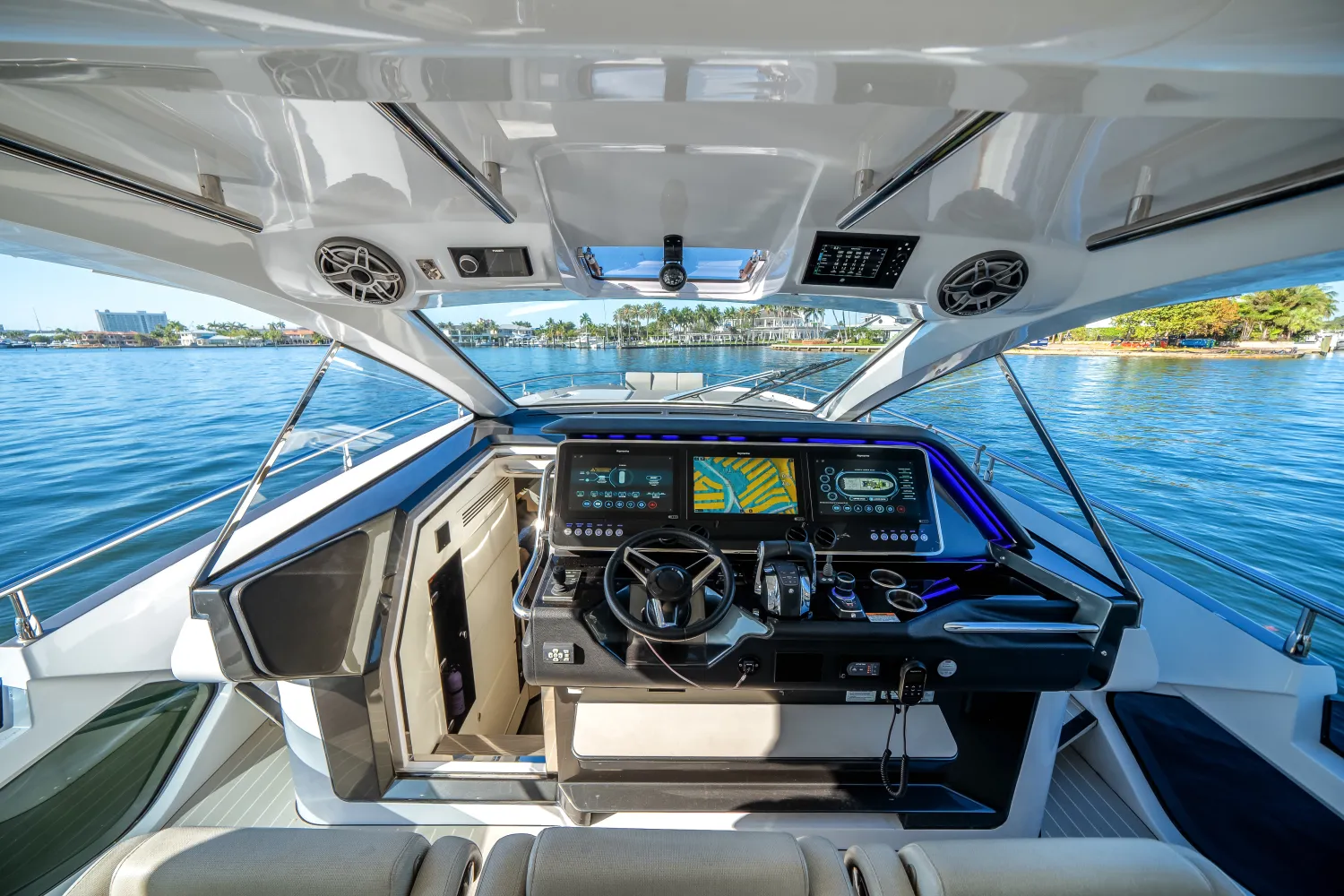

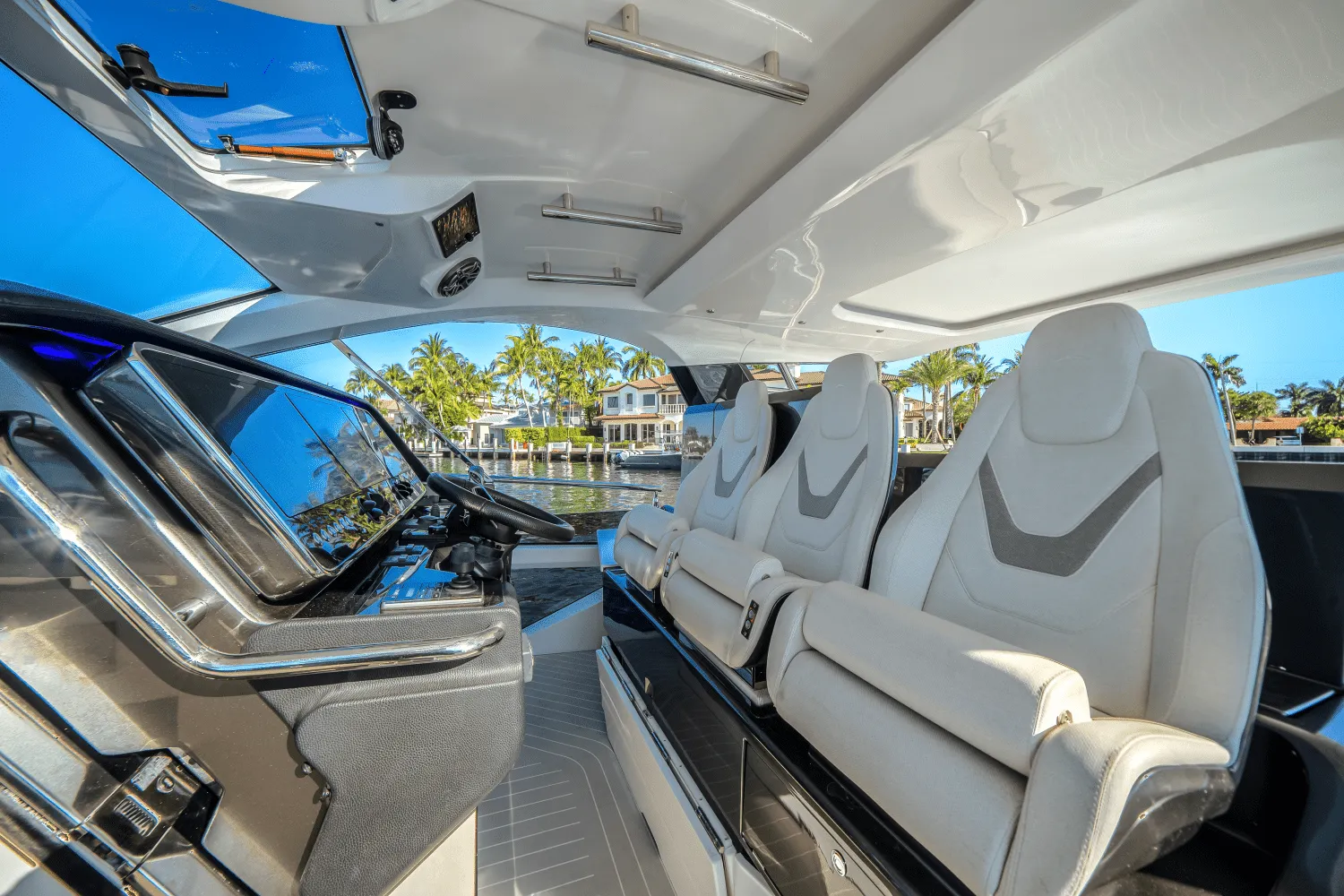

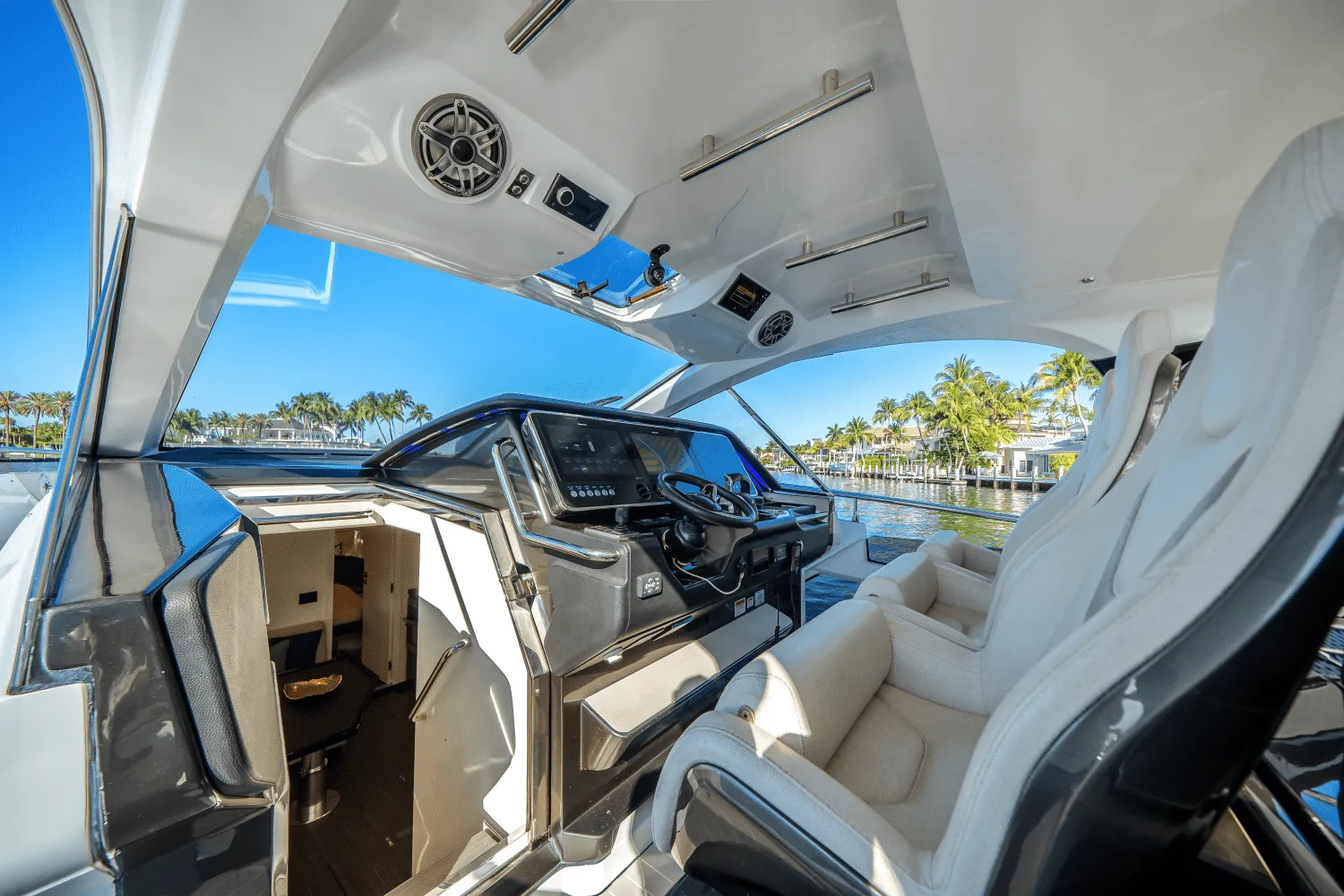

Wheelhouse
The wheelhouse is located at the center; it is accessible from starboard side, through the starboard walk around, or from port side through the aft gate and the cockpit, or through the port walk around. In includes:
- Commander seating area with electric adjustments
- Co-pilot seating area on left and right sides of the commander
- Leather-covered steering wheel
- Dashboard including the following controls:
- Magnetic compass
- 7" Vessel view Mercury display
- Electronic navigation instruments, BRONZE version (*)
- VHF communication system (for USA version)
- Audible alarm controls
- windscreen wiper control
- USB socket
- Dedicated lighting
- Adjustable air conditioning outlets

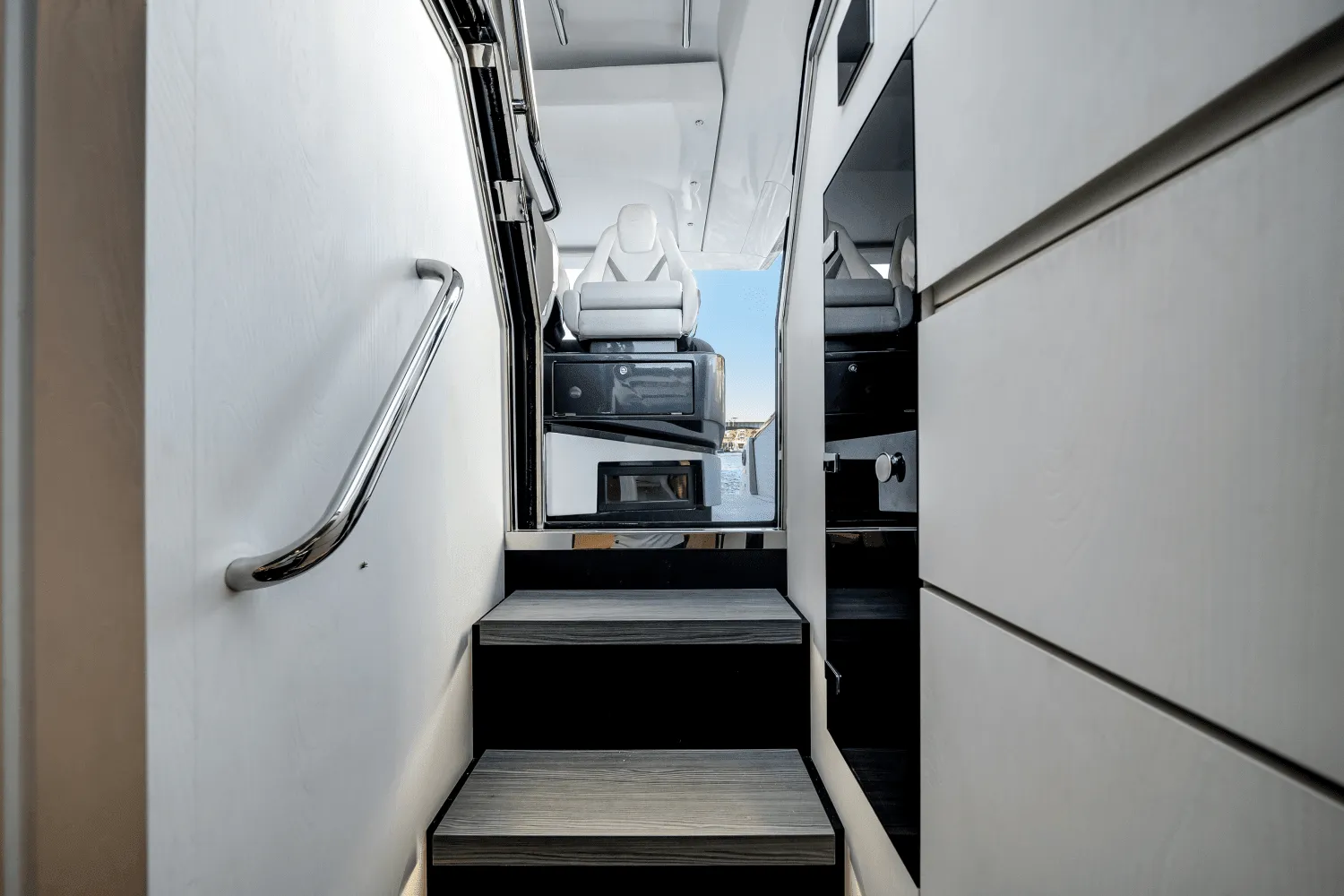

* The manual sliding hatch to access the lower deck is located to the port side of the dashboard.
Interior

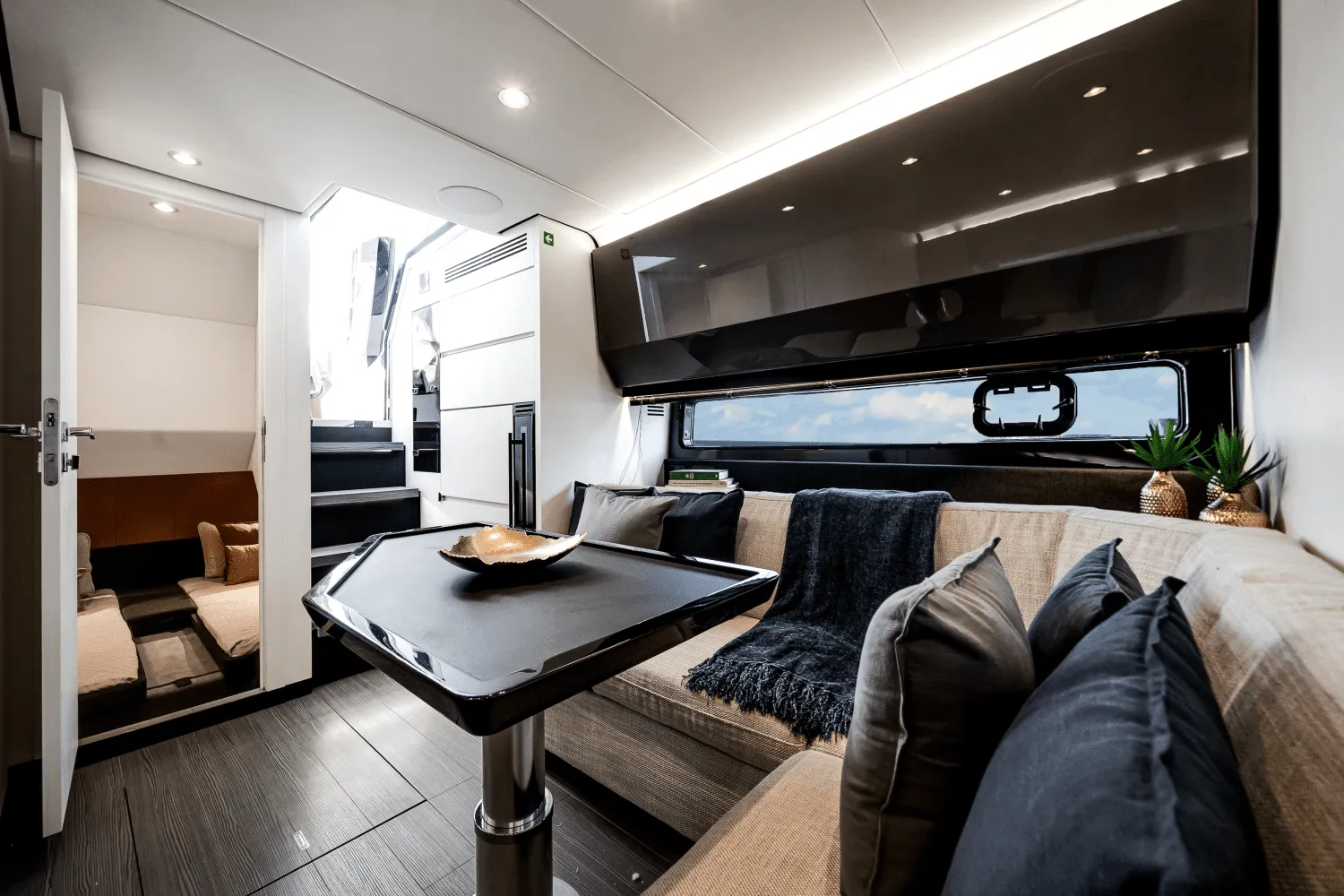

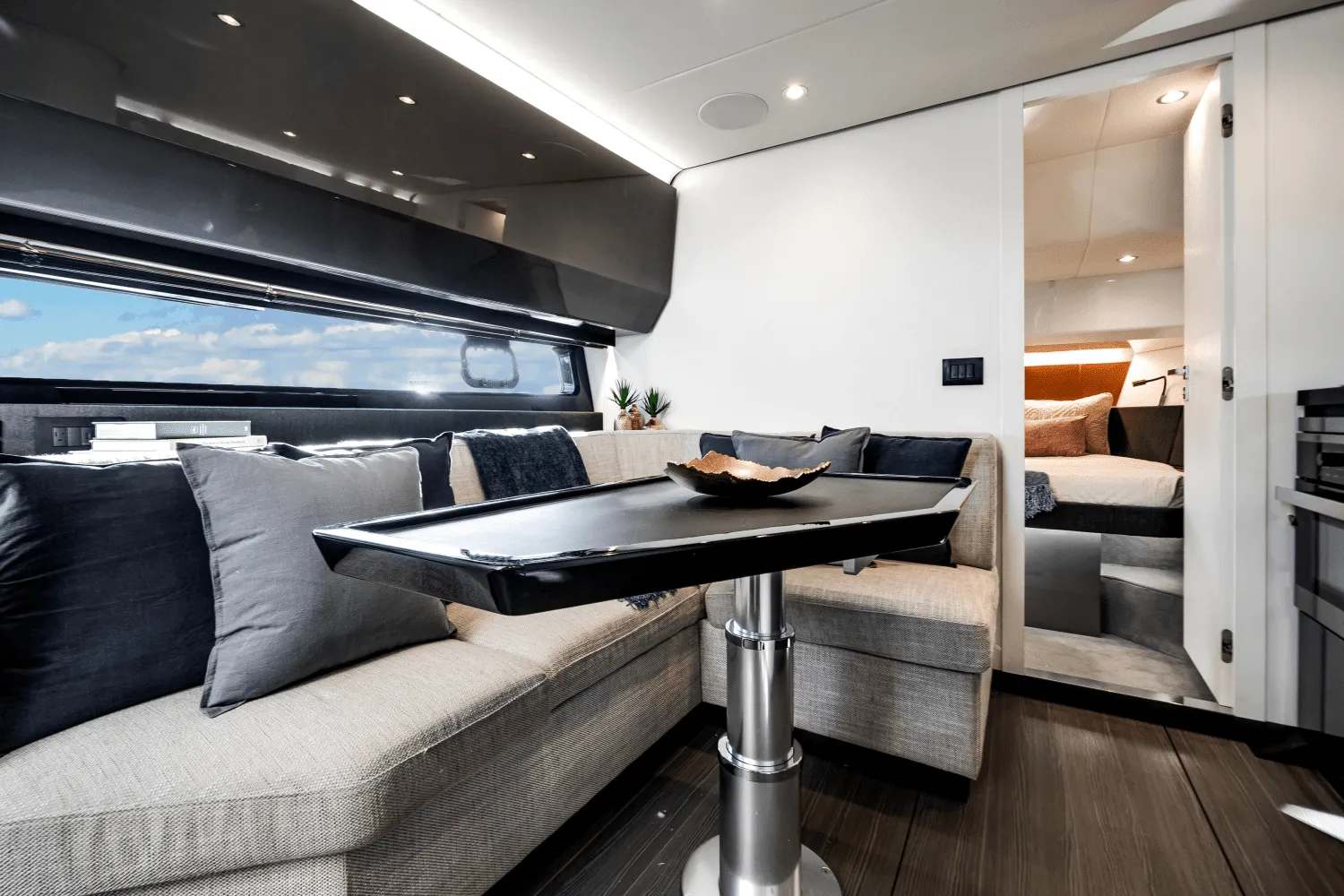

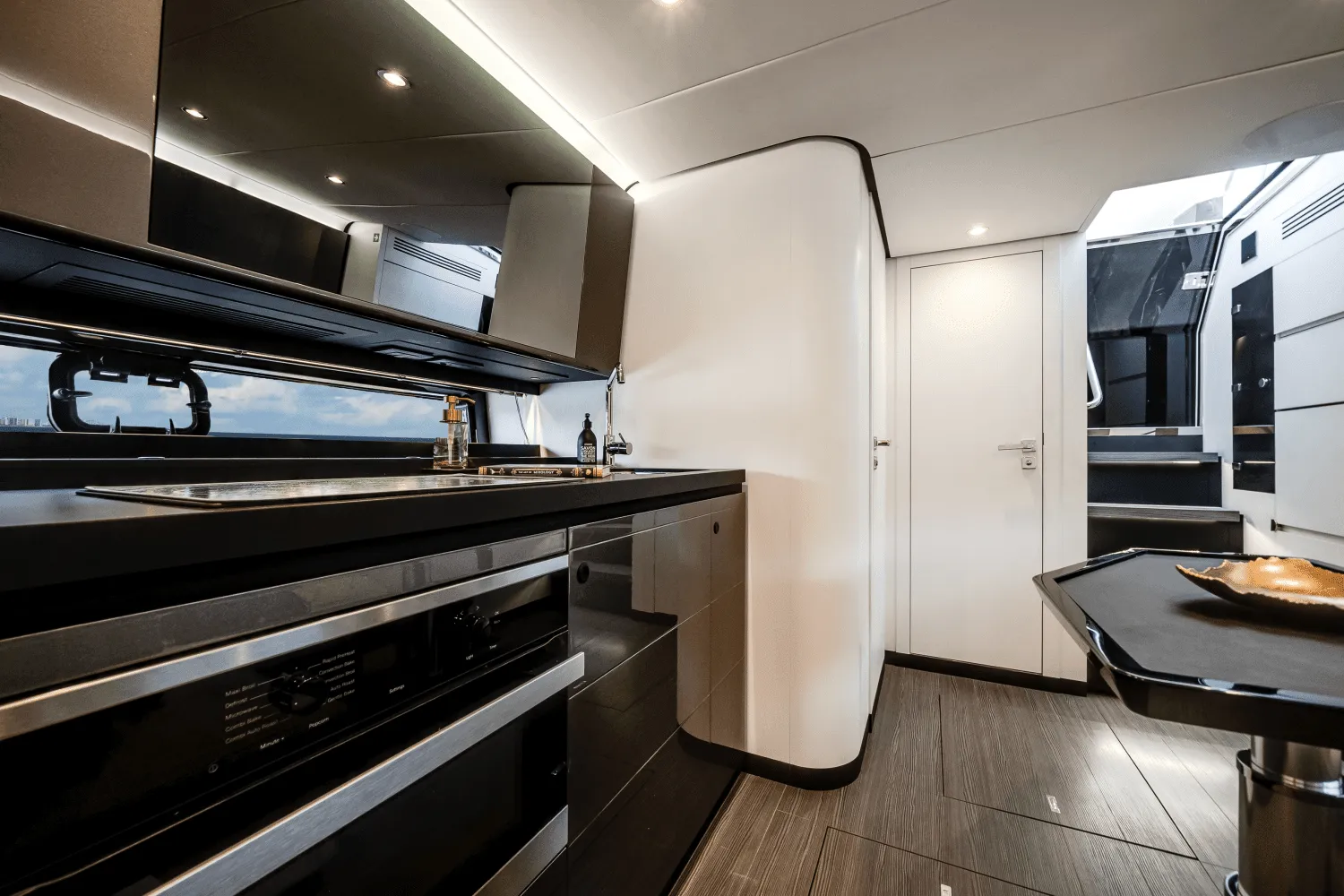

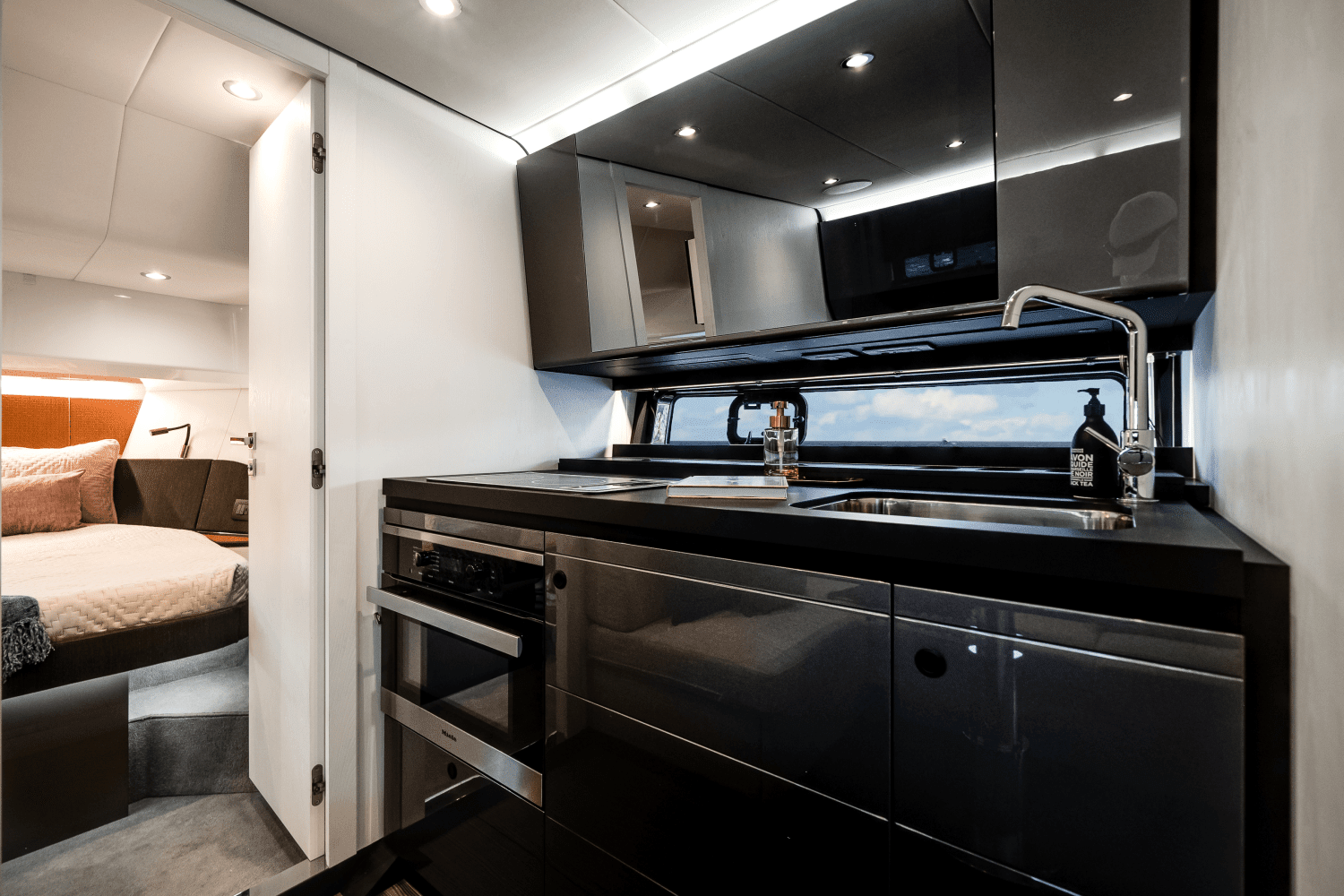

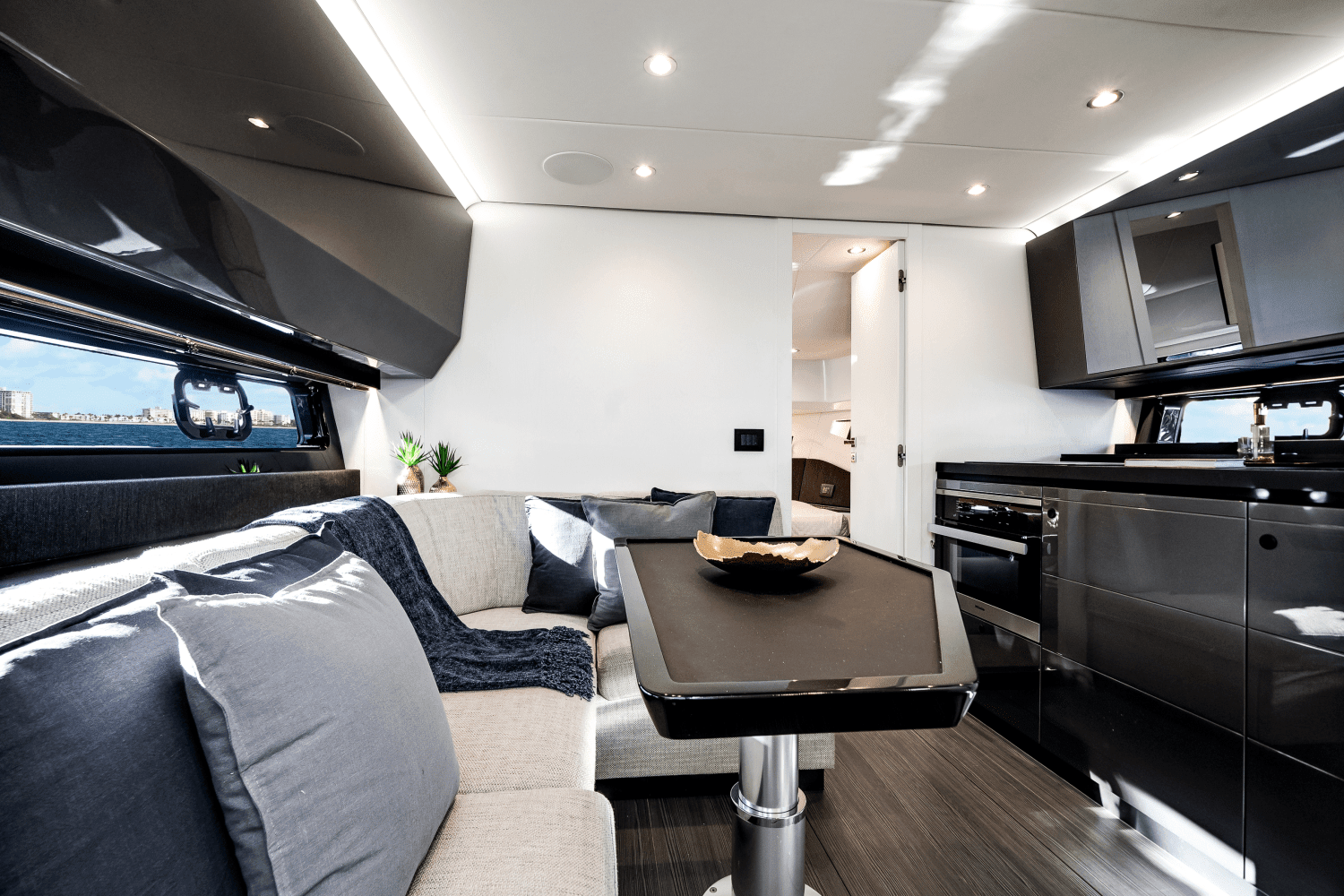

Dinette / Galley
Located amidships, full-beam, it is the space that connects the master and guest cabins, the head, and, through the manual sliding hatch, the exterior.
It is essentially composed of:
- "L" shaped three seater sofa, placed longitudinally on port side
- Table with fixed stainless steel base and HPL plane
- Household appliances:
- Induction type range
- Fridge/freezer
- Microwave oven + grill
- Carpeted floor
- Port and starboard windows with builtin portlight, with curtain
- TV pre-installation above galley cabinet
- LED technology spotlights
- LED courtesy lighting under the steps
- Sockets

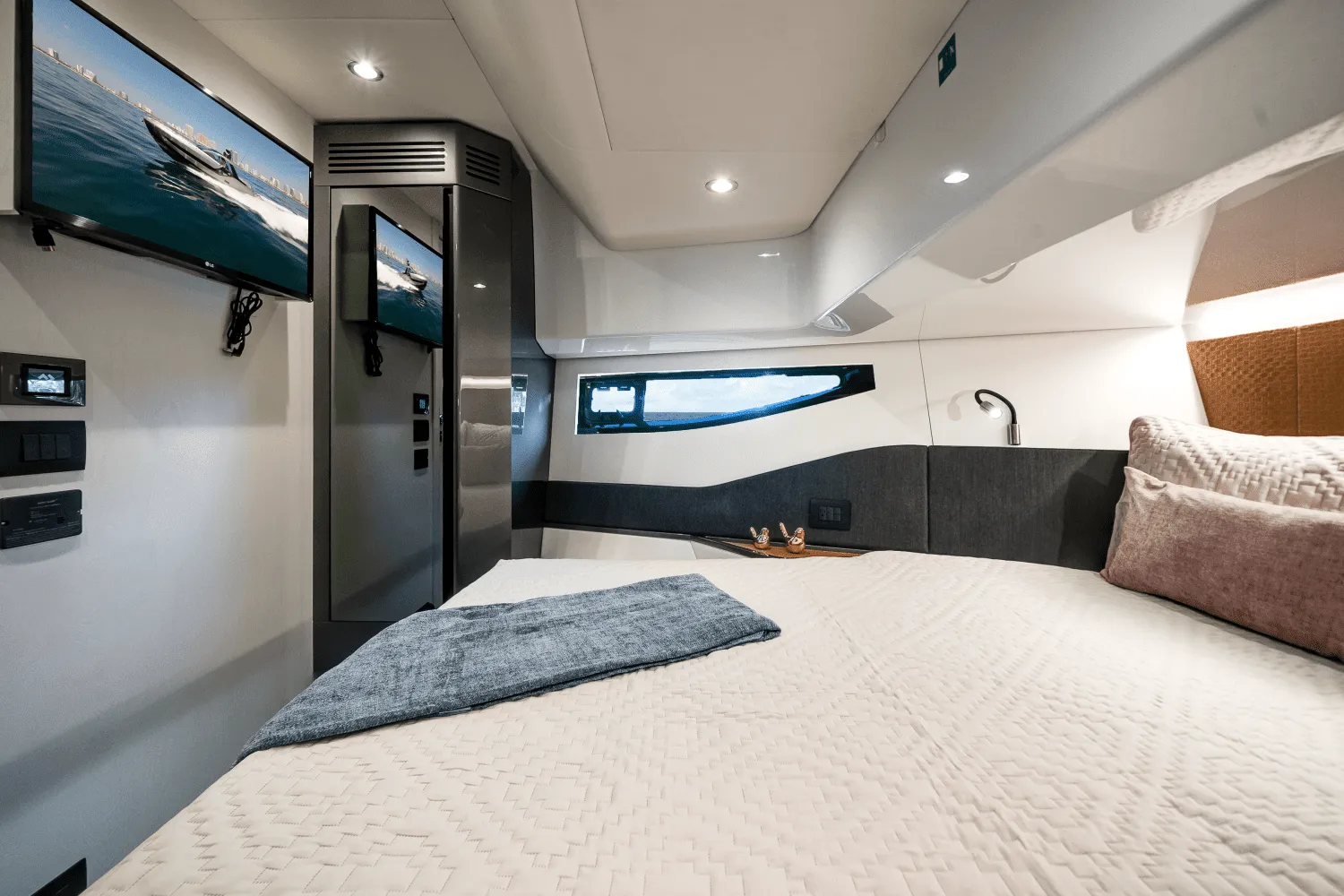

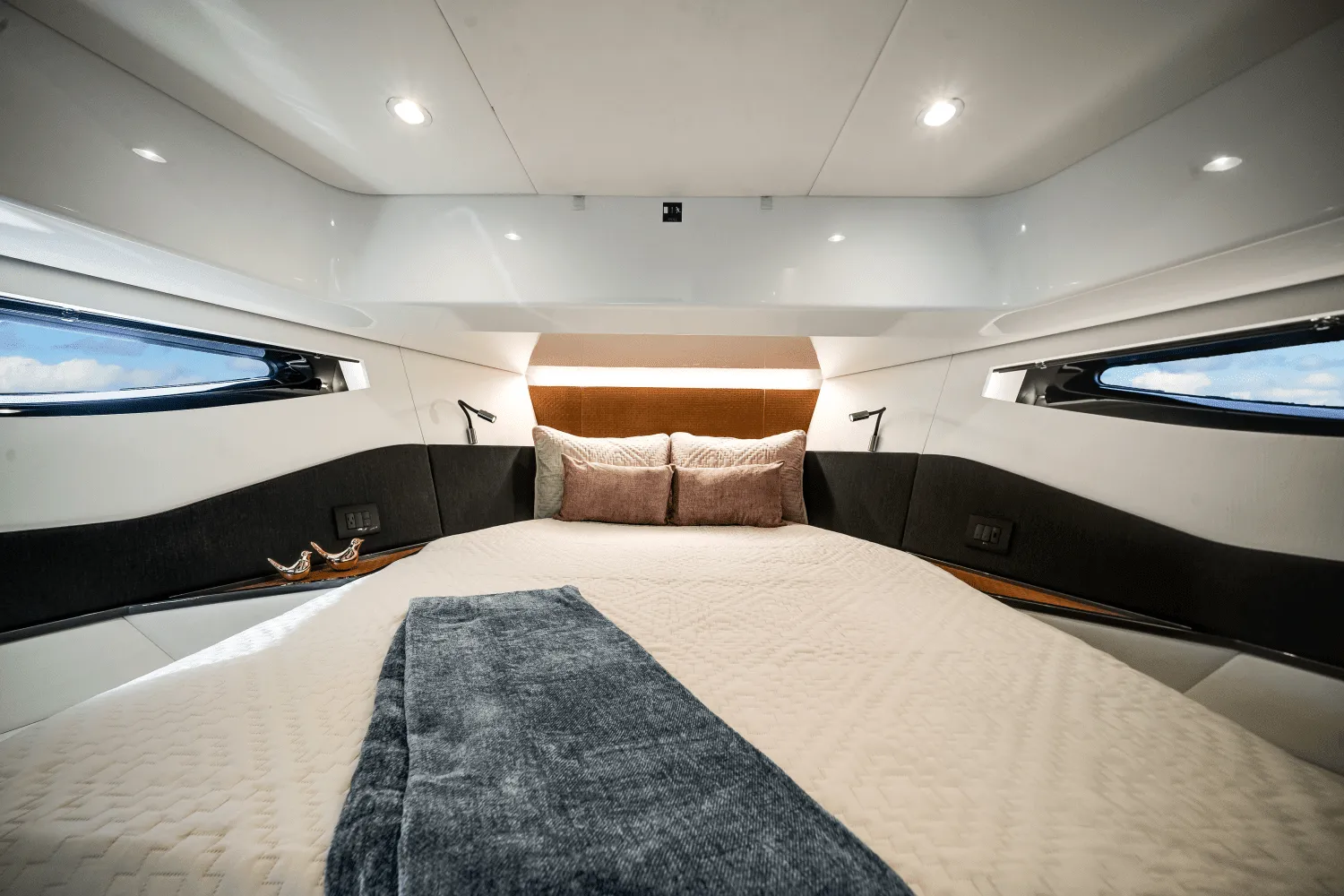

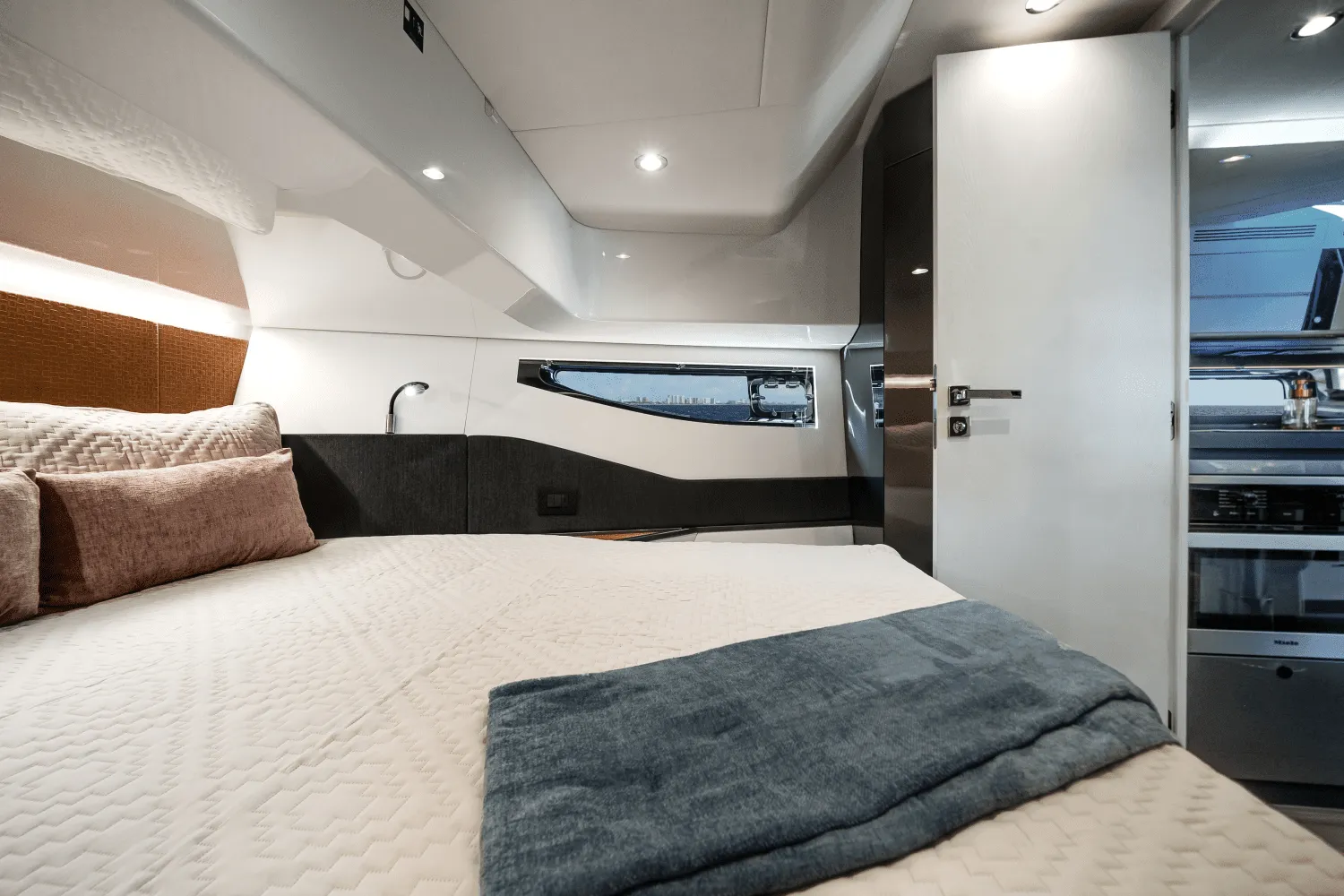

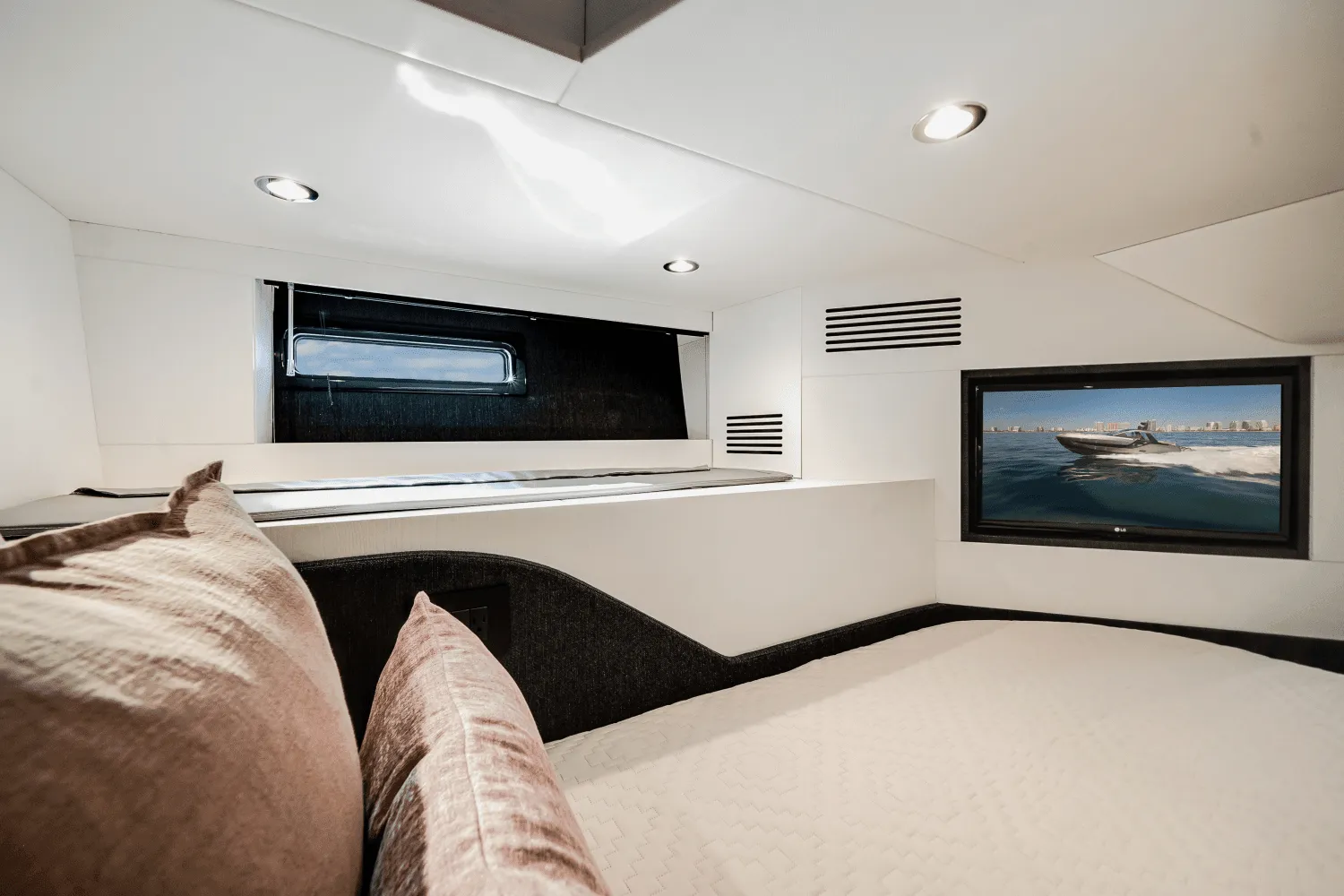

Master Cabin
Located at the bow, it is composed of:
- Wooden access door
- Double bed with large locker underneath
- Mattress, pillows and bedspread
- Leather-coated headboard
- Two reading lights
- Two bedside tables
- One wardrobe column on starboard side with hanger bars and external mirror
- One column on port side with external mirror
- Carpeted floor
- Two windows with built-in portlights on port and starboard sides, with curtains
- Lighting with spotlights on leather-upholstered ceiling
- Sockets
- Hatch for escape way on fore deck

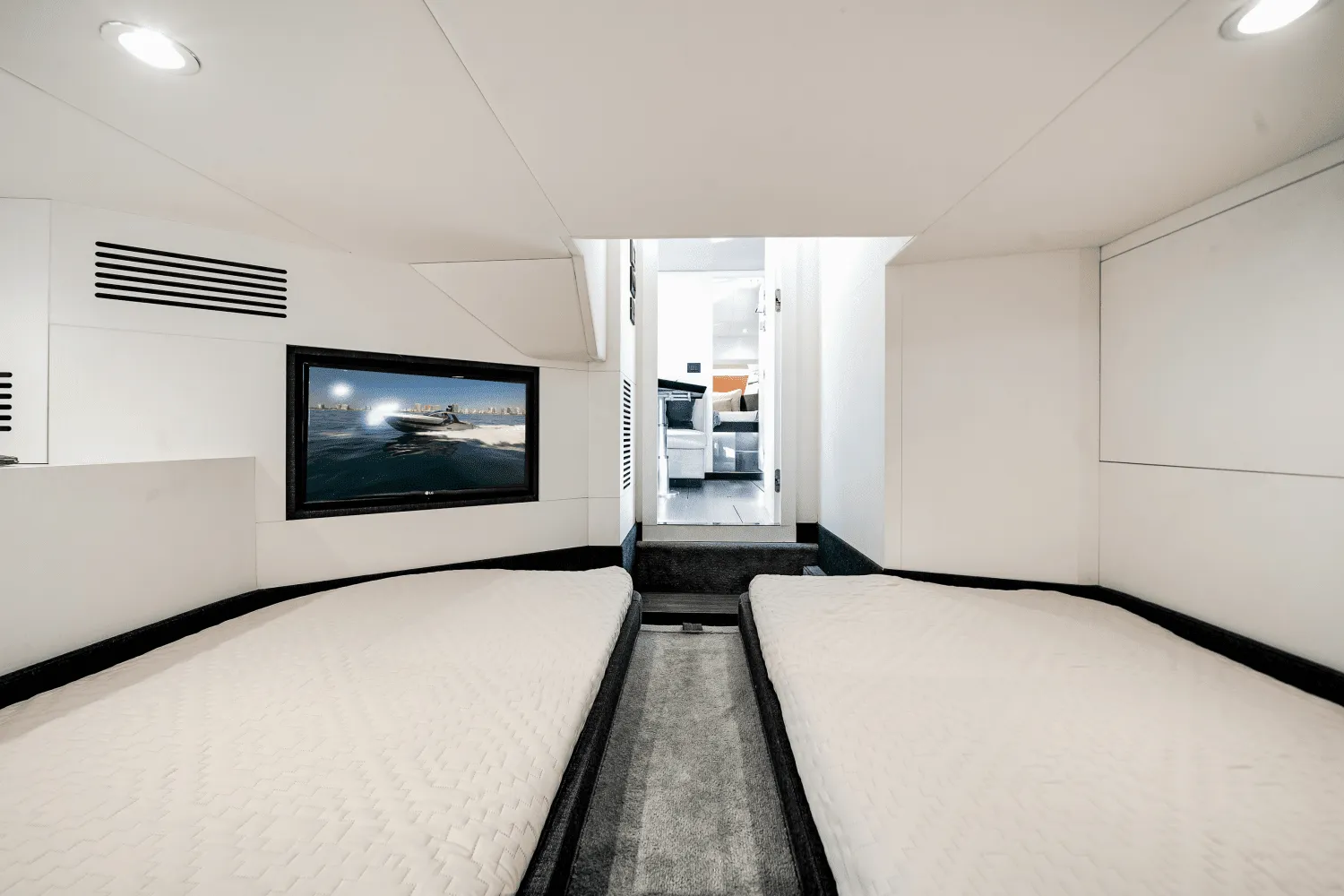

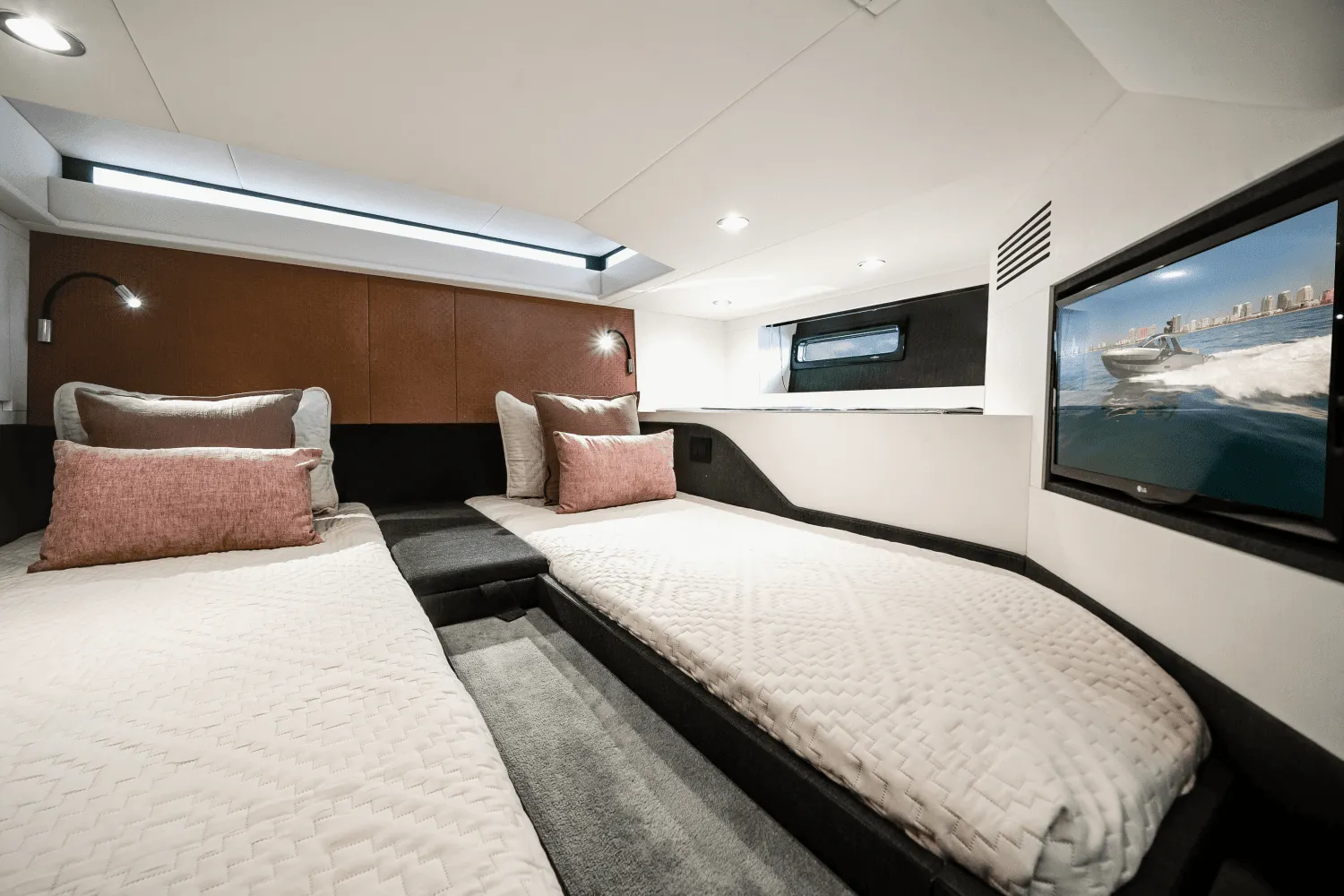

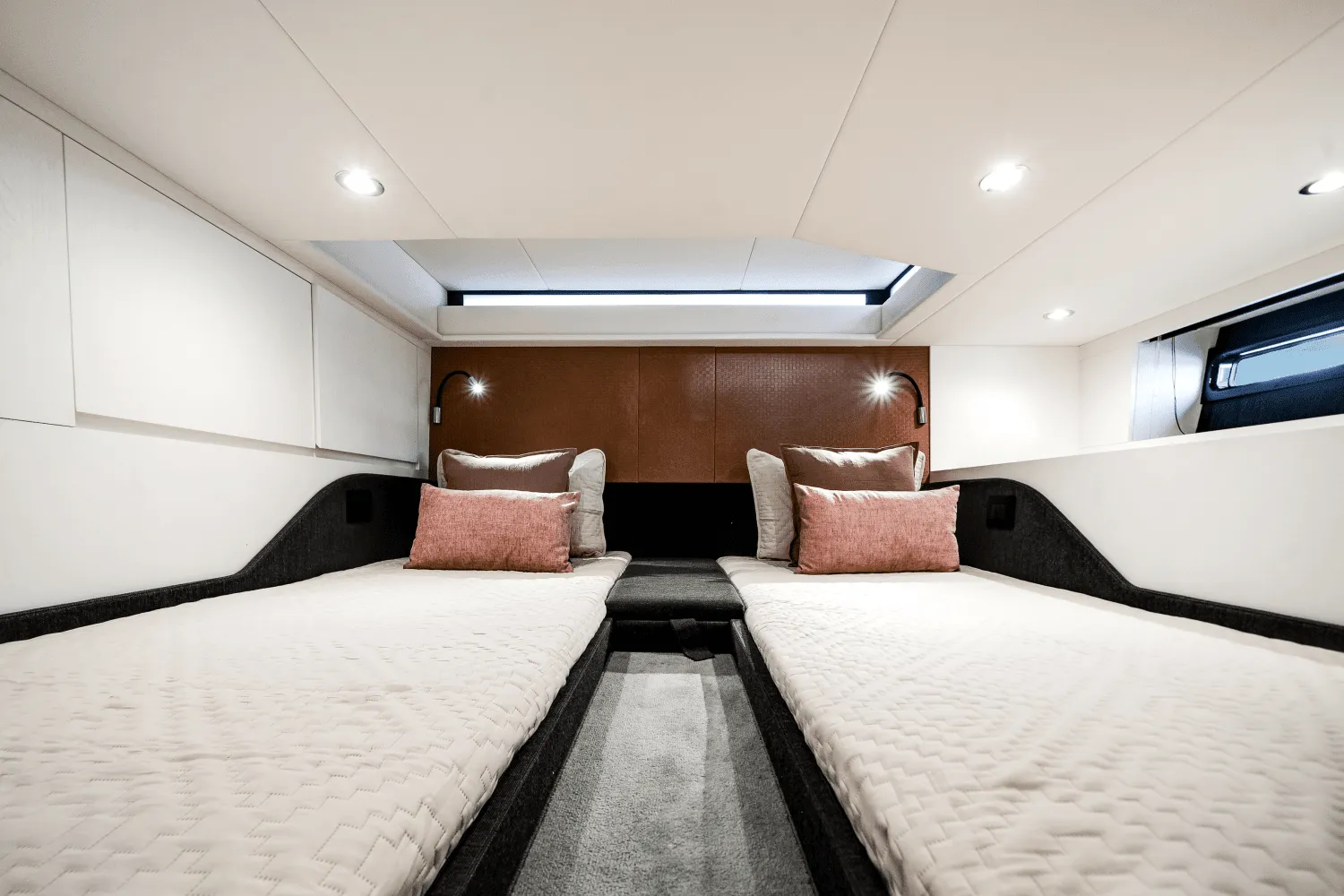

Guest Cabin
Located abaft the dinette, it is composed of:
- Wooden access door
- Two fixed single beds with system to transform them into a double bed
- One storage located under the two beds
- Mattresses, pillows
- Leather-coated single headboard
- Two reading lights
- One bedside table between the beds
- One wardrobe on starboard side
- Carpeted floor
- One side window with curtain
- LED technology spotlights
- Sockets

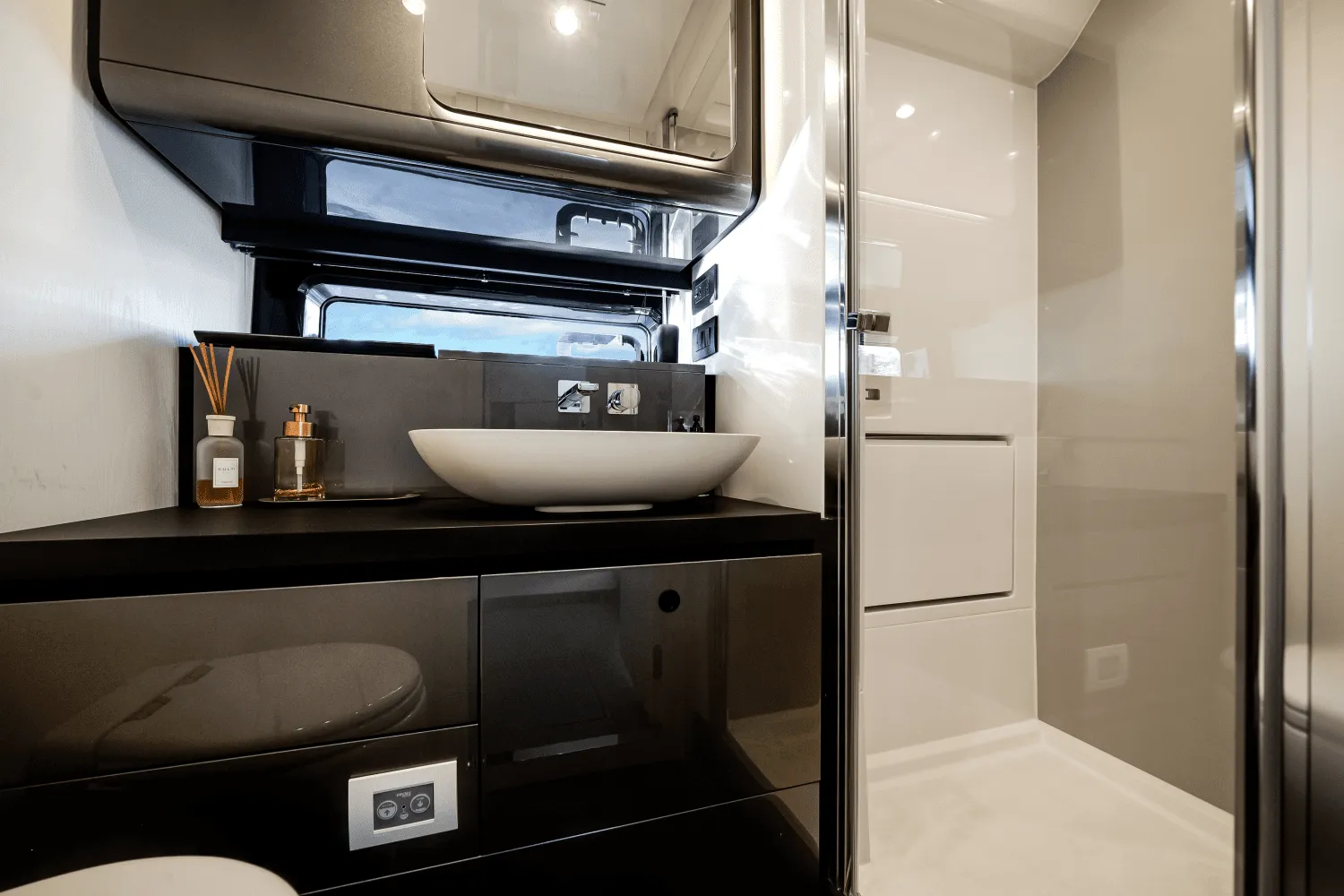

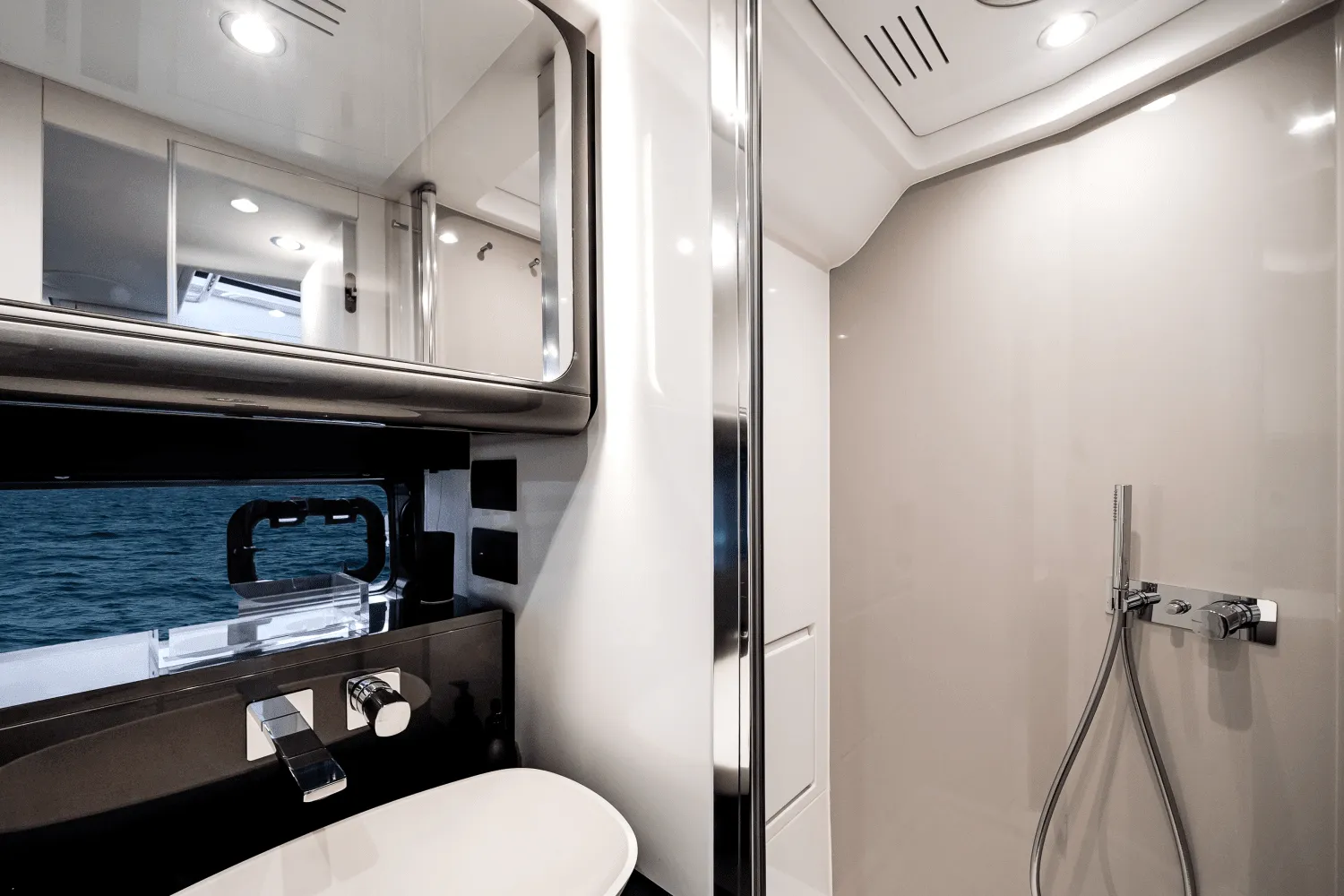

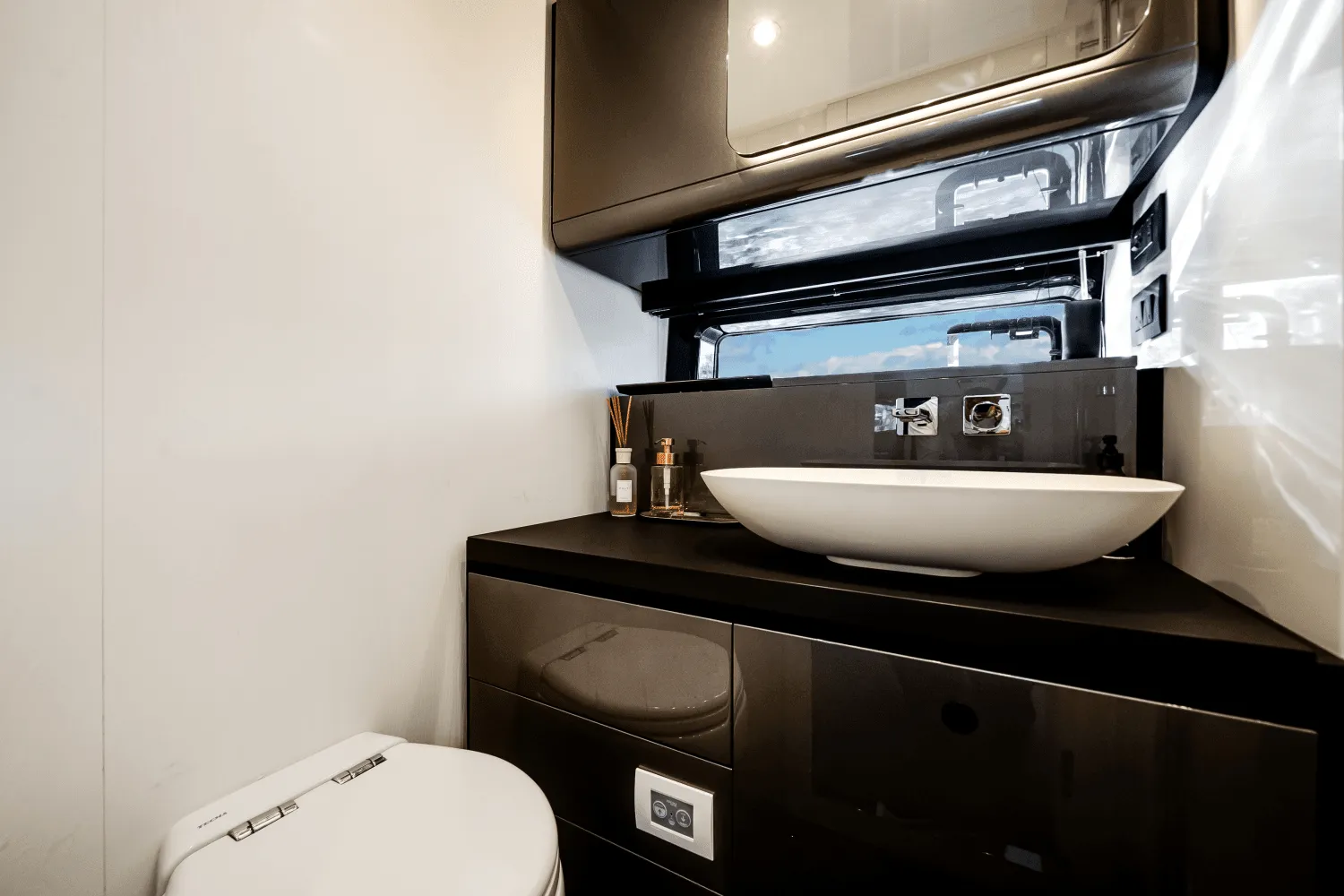

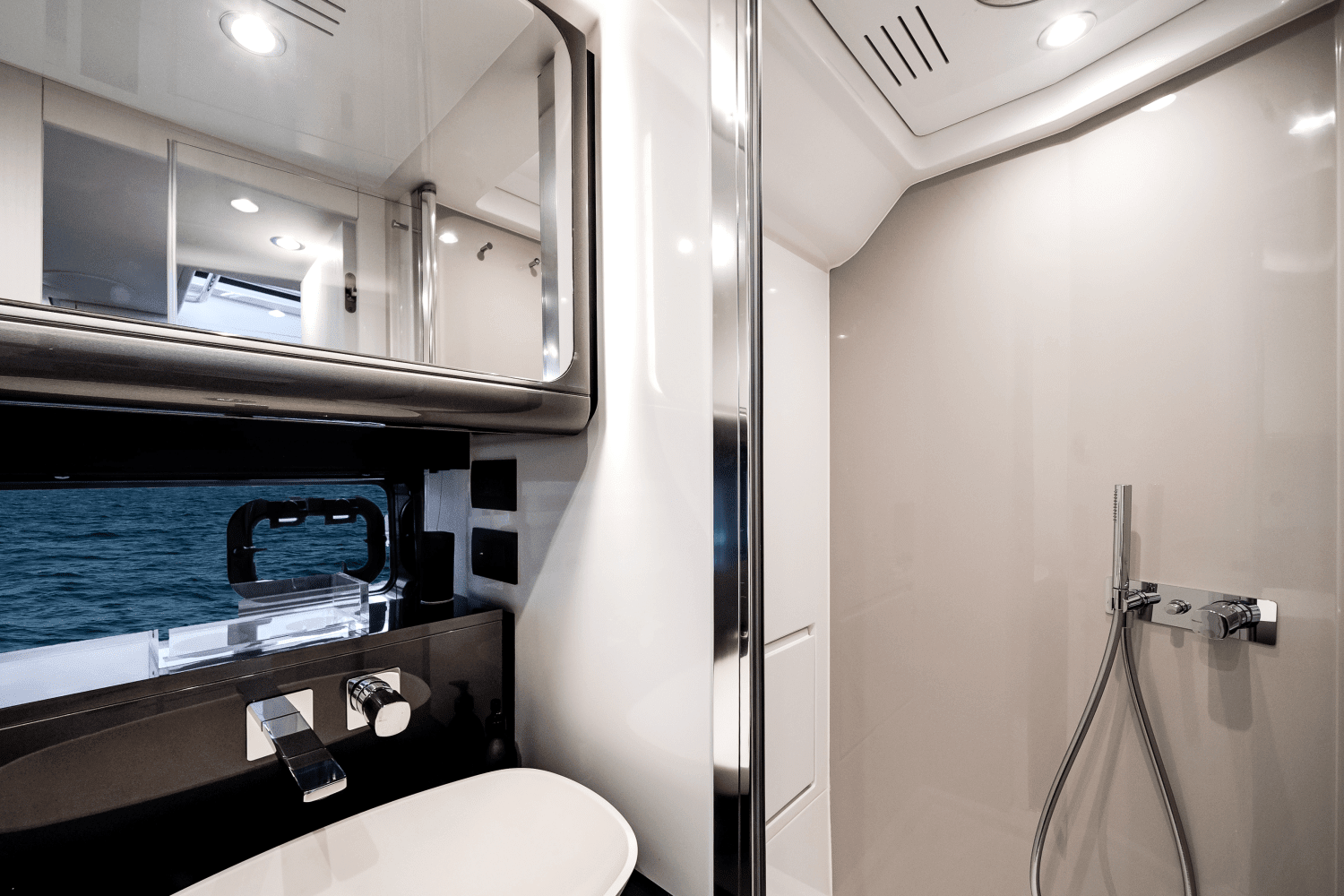

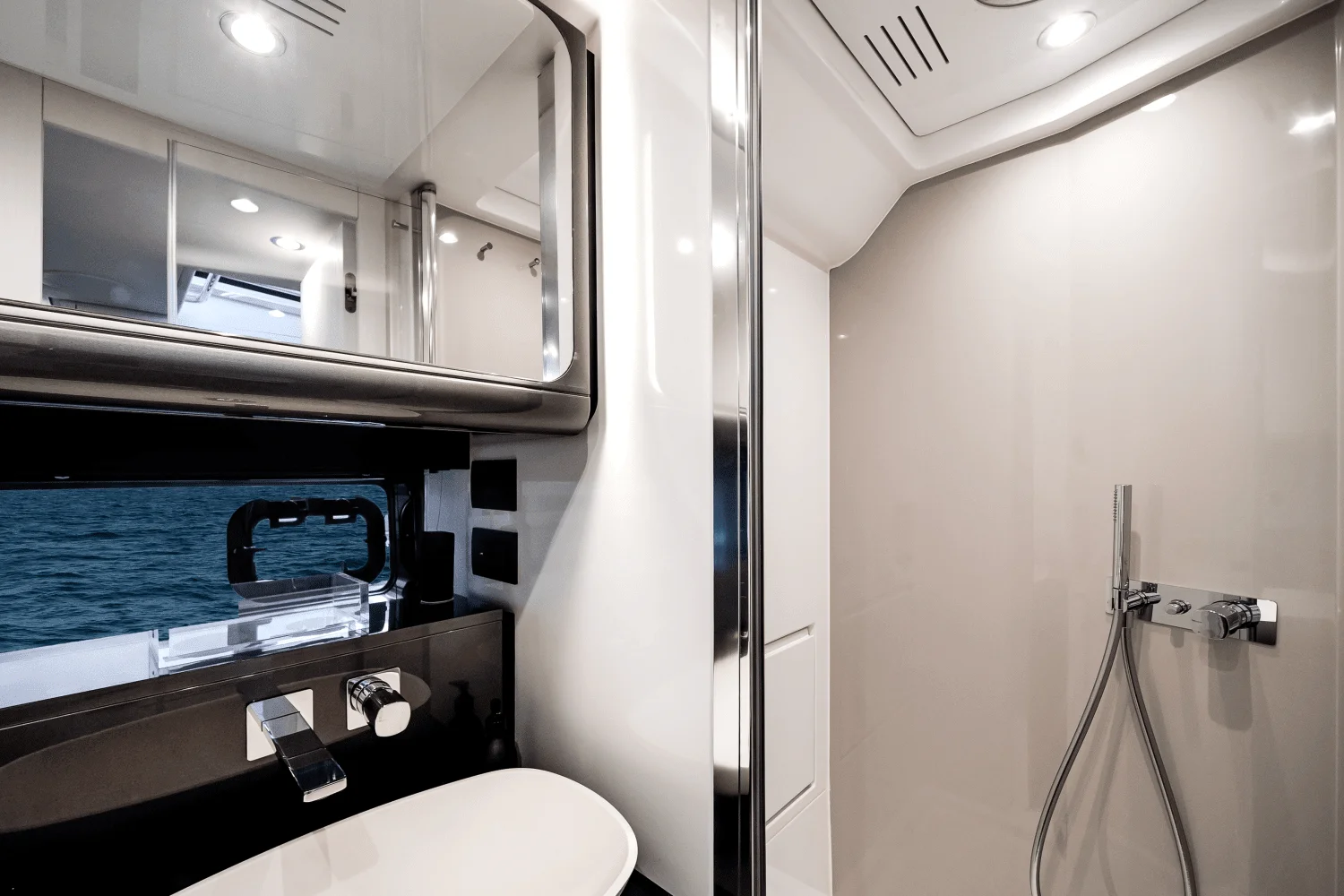

Head
Located on starboard side, it is composed of:
- Access from dinette through wooden door
- Washbasin on the top in HPL
- Faucets
- Storage under the washbasin
- Mirror above the washbasin
- Toilet
- Shower enclosure with:
- Glass access door and aluminum frame
- GRP shower enclosure walls and painted insert
- Tilting seating area
- GRP non-slip floor
- Mixer tap
- Hand-held and ceiling-mounted shower head
- Lighting on ceiling
- Laminated floor
- Side windows with recessed portlight, provided with curtain
- Head accessories
- Lighting on ceiling
- Socket
Systems
Electric system
Main characteristics
- Shore-powered power supply
- Electric panels for systems area:
- One main panel 12/24 V DC, located aft of the petrol tank, in the engine room
- One shore differential panel 230 V AC located in the cockpit locker
- Electric panels in cabins area:
- One main panel 230 V AC for power circuit breakers, located in technical storage and accessible from guest cabin (aft, starboard)
- One distribution panel 230 V AC – 24 V DC, located in storage, on port side of the access to the dinette from outside
- Onboard voltages:
- 230 V - 50 Hz AC STD
- 24 V DC from battery set
- 12 V DC from battery set and AC/DC voltage reducer
Generator (for USA version)
- One 14 KW / 60 Hz generator with ignition protected kit
Shore Power Sockets
- EU one 230 V AC - 50 A socket
- The AC power sources terminate on the main electric panel in the engine room, for the 230 V network. The AC power sources are protected by suitably sized fuses, and introduced into the network by means of remote control switches
Batteries
- Four engine batteries 12 V – 90 Ah
- Four service batteries 12 V – 90 Ah
- One 12 V - 70 Ah battery for generator (for USA version)
- Two 12 V – 25 A engine generators (one of which charges also the generator)
- One 24 V – 60 A service battery charger
Lights and Sockets
- 230 V AC sockets for main utility power supply, EU type
- USB sockets
- Internal lighting: 24 V LED type
- External lighting: 24 V LED type

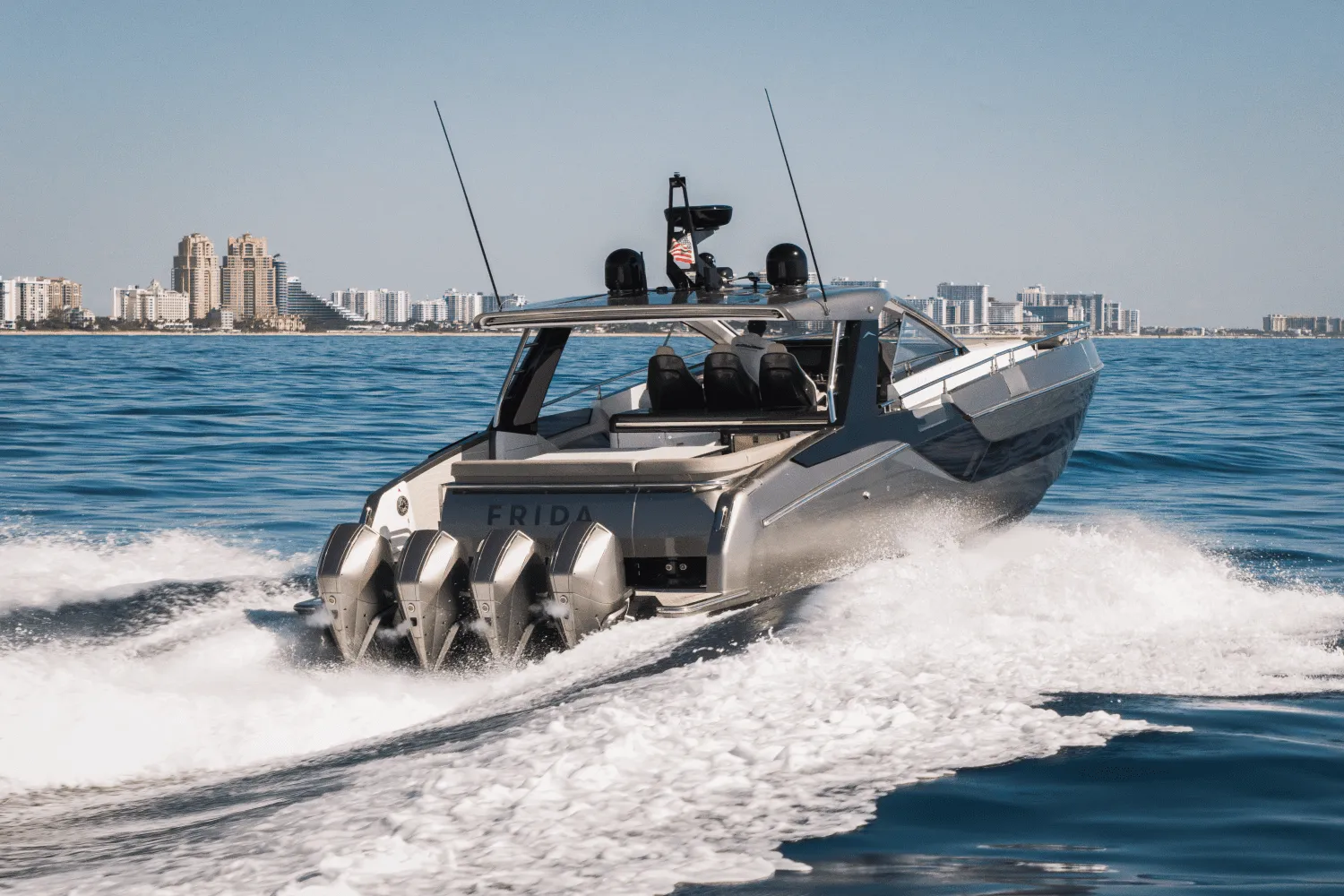

Propulsion

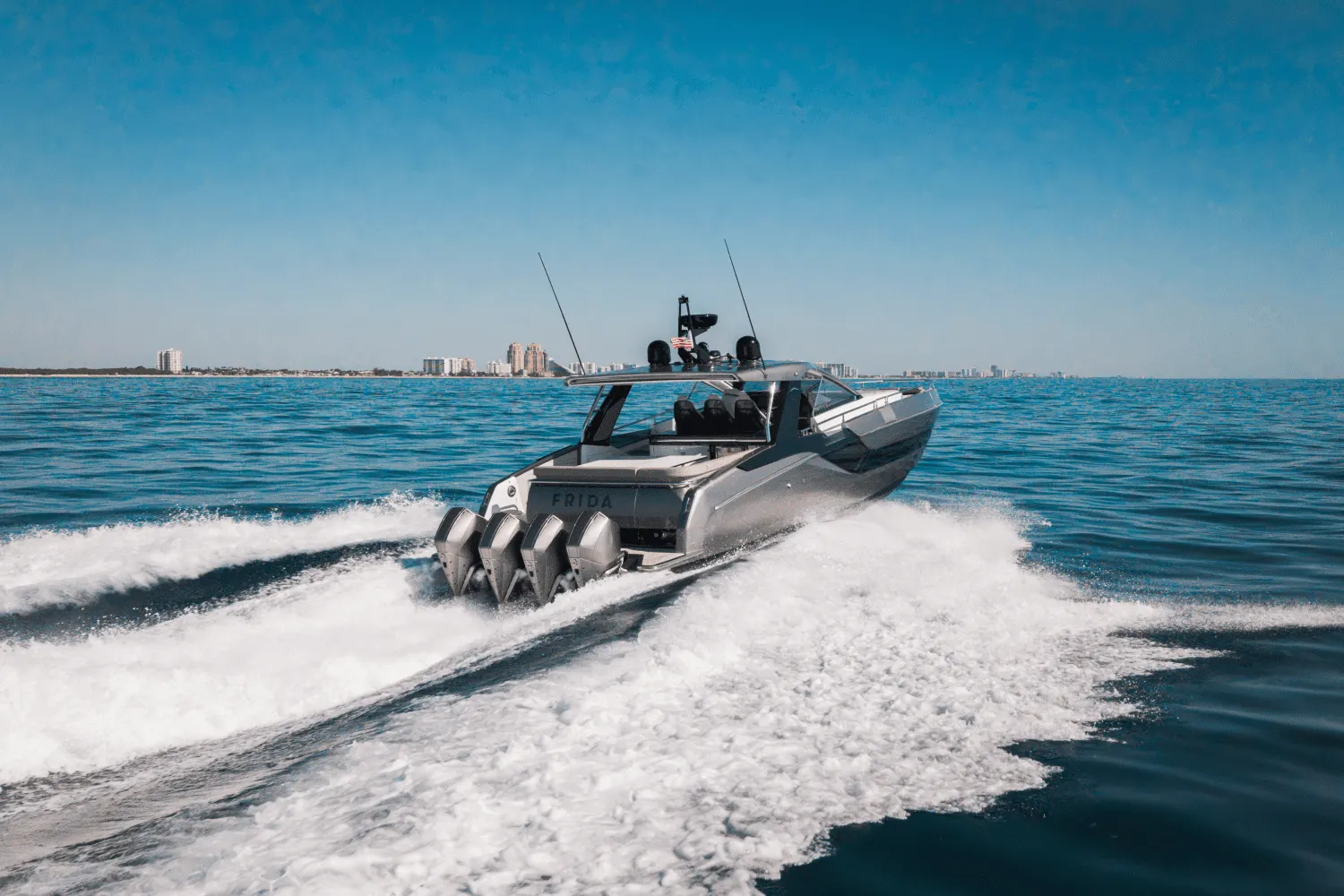

- Four V8 MERCURY outboard engines, 450 hp each
STD (BRONZE) Electronic Navigation Instruments
For a detailed list of alternative/additional equipment available, please refer to the Optionals price list.
Fuel system
- One petrol tank, made in aluminum, installed transversally in the engine room, total 2340 l (618.2 US.liq.gal.)
- One electronic fuel level sensor monitored through indication on the wheelhouse
- One visual level gage
- Four engine filters
- One tank vent
- Remote petrol shut off from tank to engine through solenoid valves
- Refueling on deck, starboard side
Diesel System for Generator (for USA version)
- One 150 l (39.6 US.liq.gal.) diesel tank, in aluminum, located forward of the service compartment, at the center, under the petrol tank
- Two fuel level sensors for local monitoring and remote monitoring from the wheelhouse
- Manual valve and RACOR 120 pre-filter on fuel delivery line to generator
- Manual valve on fuel return line from generator
- One tank discharge on starboard bulwark, with siphon
- Refilling through a filler cap located aft of the starboard bulwark
Bilge system
- Main system composed of two automatic and independent pumps located in each watertight compartment:
- One in engine room
- One (central) in the locker under the guest cabin floor (aft cabin)
- Secondary or auxiliary system composed of a manual bilge pump, whose control is located inside the locker on port side forward of the cockpit which allows, through a switch, to suck from the zone under the guest cabin bed or from the service compartment.
Fresh Water System
- 300 l (79.3 US.liq.gal.) plastic fresh water tank in technical locker, under the galley dinette floor
- Water refilling through opening in central part of starboard walk around
- Water pressure pump unit (24 V) located in the engine room, starboard side, with electronic control
- 40 liter (10.6 US.liq.gal.) water heater
- 230 V - 50 Hz AC - located under the dinette/galley floor
- Fresh water toilet flushing
- System that can be isolated by ACORN manifolds located on starboard side at the head bulwark
Black Water System
- One TECMA toilet
- One 106 l (28 US.liq.gal.) Dometic tank with built-in pump, located in the engine room
Gray Water System
- 9 l (2.4 US.liq.gal.) plastic collection tray, located under the guest cabin floor
- One outboard discharge pump
- Two air conditioning condense collection trays under the dinette/galley floor and under the guest cabin floor (together with the air conditioning system – USA version)
Ventilation / Extraction
- One extractor located in the engine room, port side, approx. 7.2 m3/min (254.27 cu.ft/min) connected to the outside through ø 100 mm (3.94 in) pipe. The air intake is from starboard side through an opening provided with water separator
Air Conditioning System (for USA version)
- Power supply from onboard generator or from shore
- One dedicated seawater electric pump with relevant seawater intake installed in the service compartment
- Distribution:
- Dinette/Galley and Guest cabin: 12000 BTU
- Master cabin: 6000 BTU
- Wheelhouse: 8000 BTU
- Temperature control panel for each air conditioning unit
- Sea outlet for water used for air conditioning
- Two condense collection trays with vent and pump for outboard discharge (see "gray water system")
Other Systems
- Humphree X-450 Interceptor
- Engine room dry chemical fire extinguishing system with manual control
- Carbon monoxide detection system composed of three sensor located in Master cabin, Guest cabin and Dinette/Galley (for USA version)
Equipment
- One telescopic boat hook
- Two mooring lines
- Fender lines: 18 m (59'1'')
- Six fenders
- Six black fender covers
- One Owner's manual
- One wooden boat model
- Two floating keyrings
- One large bag with logo for manuals
- One remote control holder with logo
|
